MELLANOX
MFA1A00-C005 Mellanox Active Fiber Cable, ETH 100GbE, 100Gb/s, QSFP, 5m
Mfg Part Number: MFA1A00-C005 , Item #: 2026907
, PO and Wire.

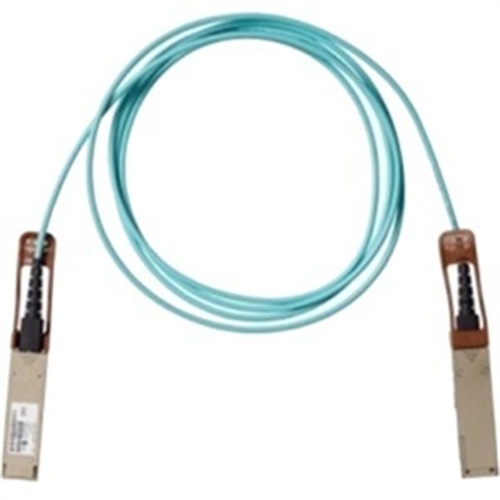

NVIDIA MFA1A00-C005 Active Optical Cable Ethernet 100GbE QSFP LSZH 5m100Gb/s QSFP28 MMF Active Optical Cables
NVIDIA Networking QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables are designed for use in 100Gb/s Ethernet systems.
MFA1A00-Cxxx AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 25Gb/s.
MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gbp/s rates, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.
These unique-quality active-fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Highlights
- Up to 100Gb/s data rate
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalizer
- Selectable retiming
- SFF-8665 compliant QSFP28 port
- Single 3.3V power supply
- 2.2W power dissipation (typ, each end with retiming)
- Low BER
- Up to 100m length
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I2C management interface
| General Information | |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MFA1A00-C005 |
| Manufacturer Website Address | http://www.nvidia.com |
| Brand Name | Mellanox |
| Product Name | AOC Cable Ethernet 100GbE QSFP 5m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Cable Length | 16.40 ft |
| Connector Type on First End | SFF-8665 QSFP28 Network |
| Connector on First End Details | 1 x SFF-8665 QSFP28 Network |
| Connector Type on Second End | SFF-8665 QSFP28 Network |
| Connector on Second End Details | 1 x SFF-8665 QSFP28 Network |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Device Supported | Receiver |
| Device Supported | Transmitter |
| Data Transfer Rate | 100 Gbit/s |
| Features | AOC Technology |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
