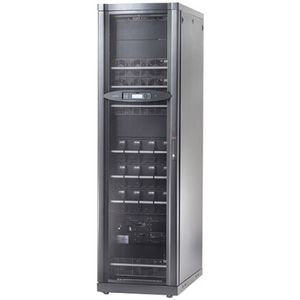

SY30K40F APC Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS

When expensive service plans are not part of Your strategy
The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SY30K40F
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	PX
Product Name	Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hardwired
Receptacle Type	Hard Wire 5-wire
Receptacle Type	Screw Terminal
Receptacle Detail	1 x Screw Terminal
Receptacle Detail	1 x Hard Wire 5-wire
Power Description
Load Capacity (VA)	40 kVA
Input Voltage	220 V AC
Output Voltage	208 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Management
Network Management	SNMP Manageable
Bypass Switch	Static
Emergency Power OFF	Yes
Interfaces/Ports
Network (RJ-45)	Yes
Modular Slots	2 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	4.10 Minute
Backup/Run Time (Half Load)	15.10 Minute
Typical Battery Recharge Time	2 Hour
Physical Characteristics
Rack Height	42U
Height	82"
Width	24"
Depth	36"
Weight (Approximate)	1438.01 lb
Miscellaneous
Package Contents	Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS Start up User Manual Web/SNMP Management Card
Country of Origin	United States
Warranty
Limited Warranty	2 Year

Features:
Advanced Battery Monitoring
Audible Alarms
Automated Battery Monitoring
Management and Testing
Battery modules connected in parallel
Brownout correction
Built-in static bypass switch
Built-in SmartSlot
Built-in Web/SNMP management
Continuous Power
Designed and manufactured under ISO9001 / ISO14001 certification
Double Conversion On-Line
Easy Maintenance
Emergency Generator Compatible
EPO
Extendable Run Time
Front-access servicing
Full-rated Power with kVA equaling kW
Hot Swap Batteries
Hot Swap Electronics
Input Power Factor Correction
Intelligent Battery Management
LCD AlphaNumeric Display
Load Meter
Modular-level Repair
Modular design
Modular Fault-tolerant Design
Overload Indicator
Paralleling Features for Capacity and Redundancy
Power expansion capability
Rated for Power-Factor Corrected Loads
Reduced MTBR (Mean Time Between Repair)
Resettable circuit breaker
Revolutionary Modular Design for built-In Fault-Tolerance
Self-diagnosing
Sine-wave output

Includes:
CD with software
User Manual
Web/SNMP Management Card
