DWT4585X Tripp Lite Display TV LCD Wall Monitor Mount Tilt 45" to 85" Flat Screen

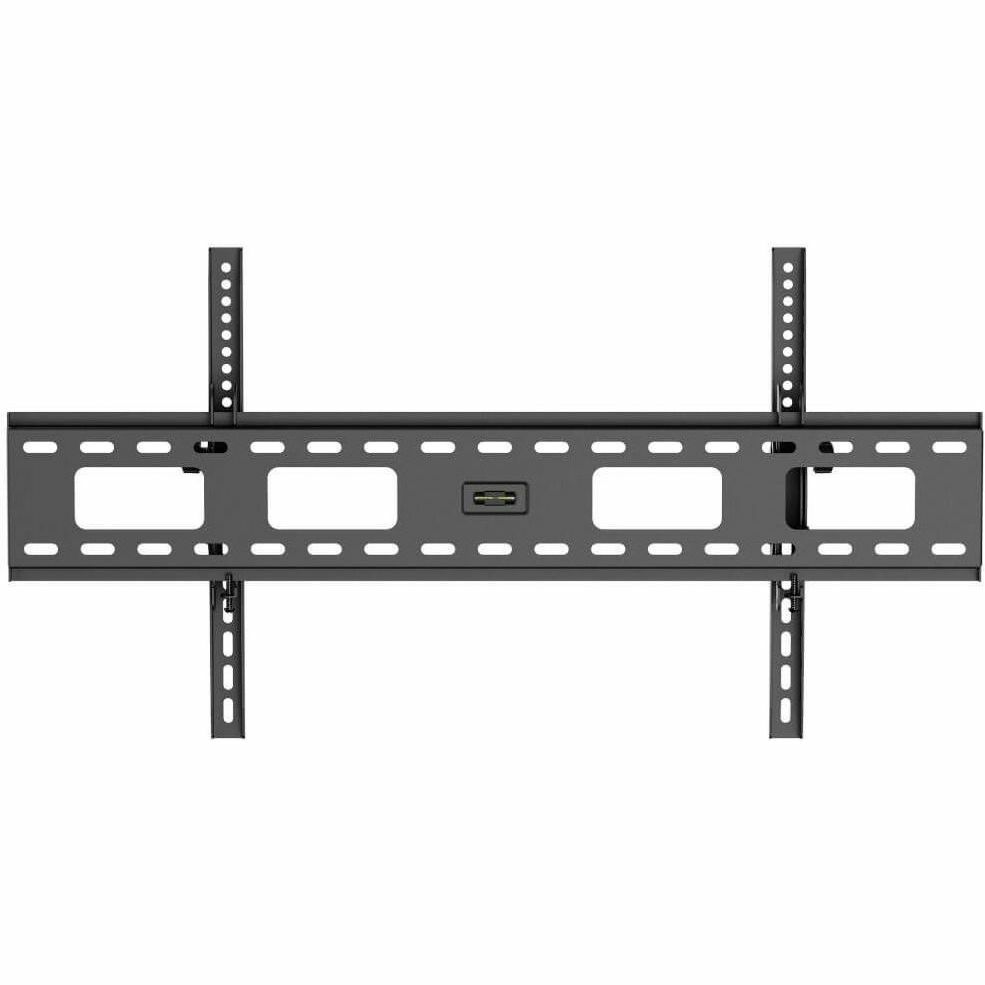

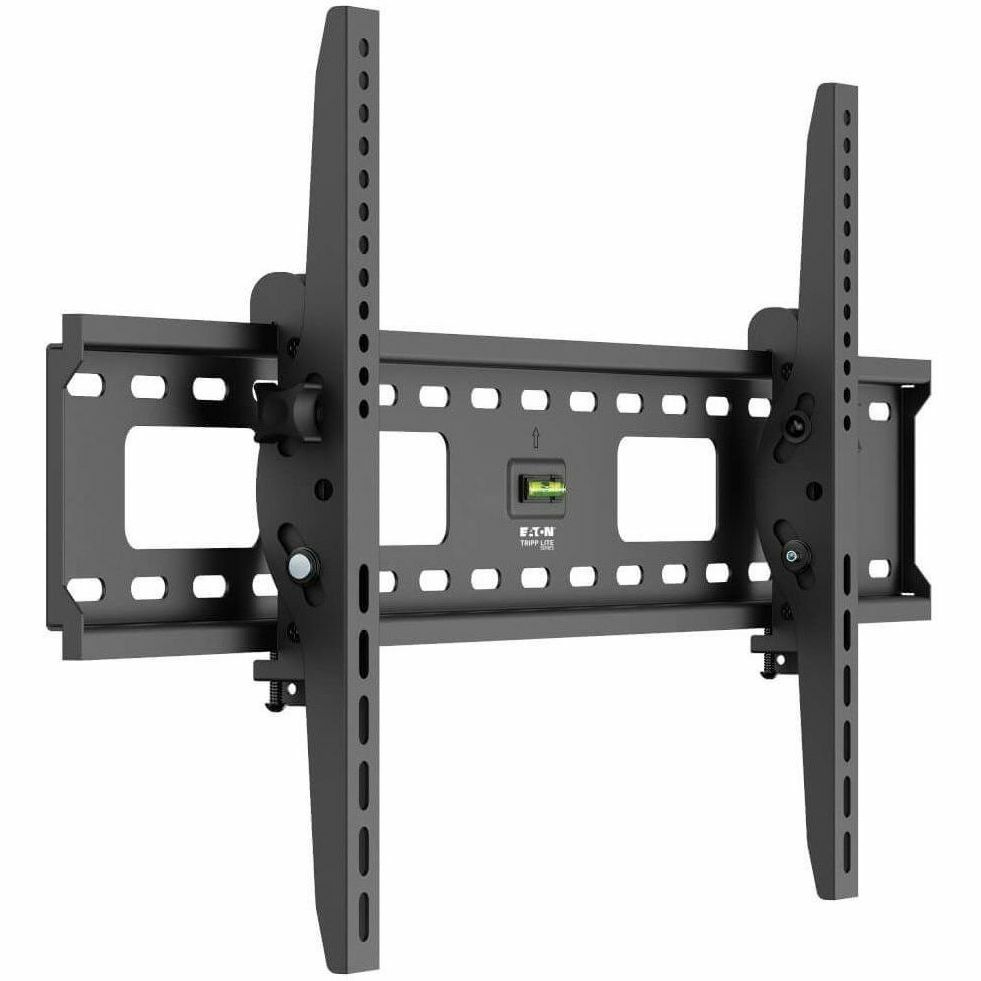

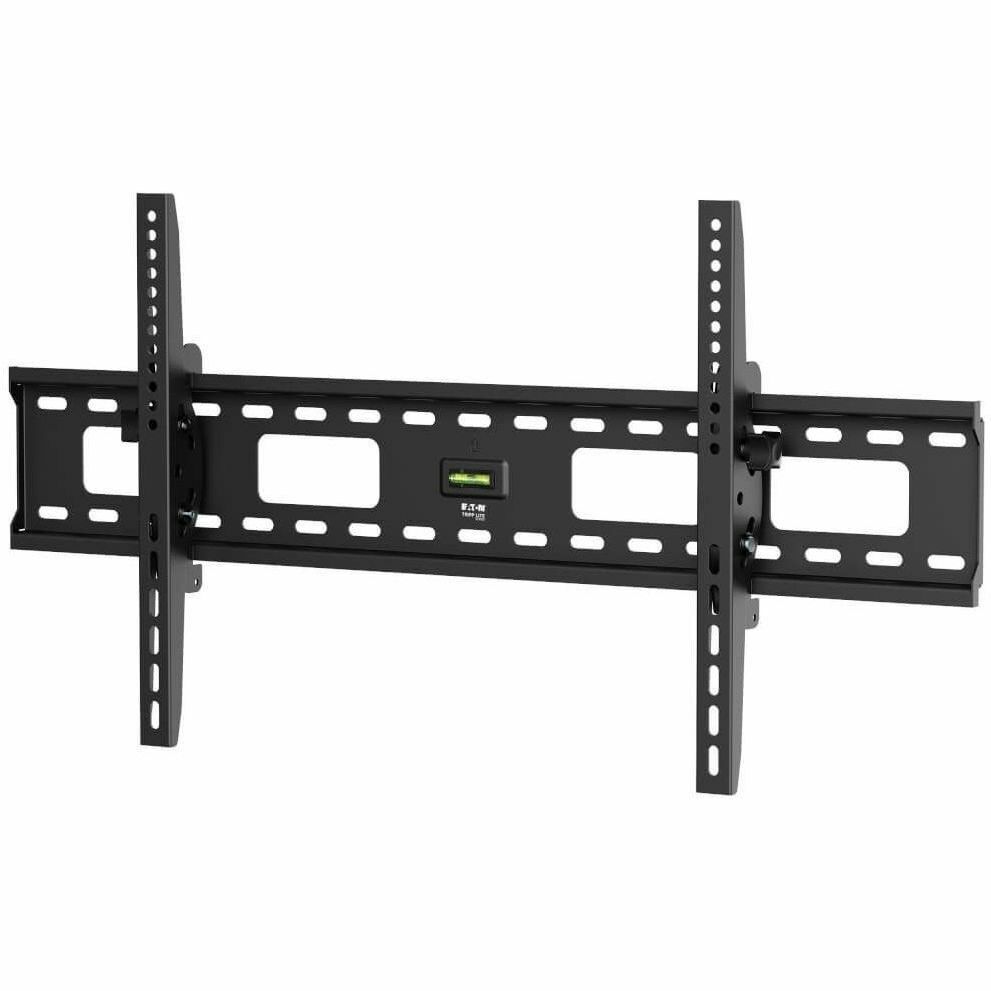

The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 pounds. Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	DWT4585X
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	DWT4585X
Product Name	Tilt Wall Mount for 45" to 85" Flat-Screen Displays
Product Type	Wall Mount
Product Information
Device Supported	Flat Panel Display
Number of Displays Supported	1
Maximum Load Capacity	200 lb
Minimum Screen Size Supported	45"
Maximum Screen Size Supported	85"
Features	Tilt
Features	Horizontal Adjustment
Features	Bubble Level
Features	Durable
Features	Adjustable Viewing Angle
Durability	Scratch Resistant
Physical Characteristics
Color Family	Black
Product Color	Black
VESA Mount Compatible	Yes
Mounting Pattern	600 x 400
Mounting Pattern	400 x 400
Mounting Pattern	800 x 400
Mounting Pattern	200 x 200
Mounting Pattern	400 x 200
Mounting Pattern	300 x 300
Product Material	Metal
Height	17.32"
Width	33.85"
Depth	2.48"
Weight (Approximate)	6.83 lb
Miscellaneous
Package Contents	Tilt Wall Mount for 45" to 85" Flat-Screen Displays Mounting Hardware Owner's Manual
Additional Information	Low-profile mounting keeps unit out of sight for sleek, professional appearance Equipped with a bubble level for accurate display leveling Wide range of motion with -10° to 10° tilt capability
Compatibility	45" to 85" Flat-Screen Displays
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
