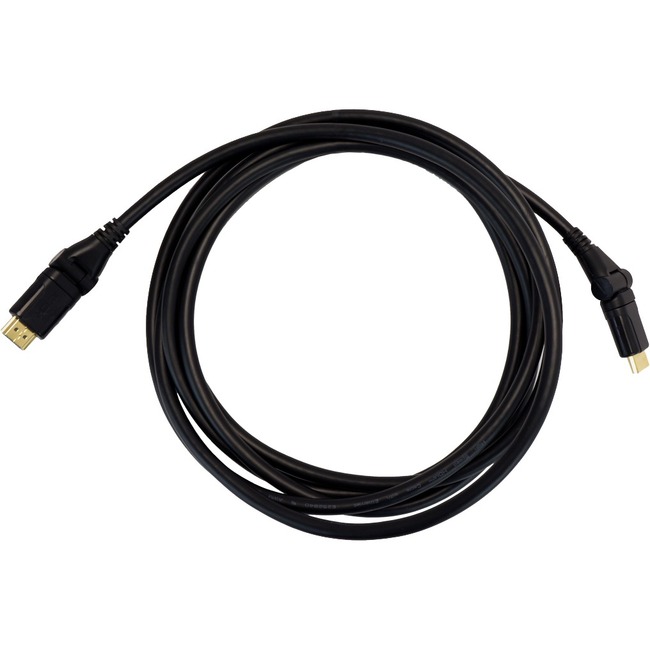

HDMI to HDMI 10 Foot Cable (M/M)
The VisionTek HDMI / HDMI 10 foot Pivot Cable enables you to connect your HDMI-equipped source devices such as laptop, desktop, blu-Ray, Xbox One, PS4, Roku, DVD and Set Top Box to your HDMI-equipped HDTV, display, monitor or projector. The HDMI / HDMI 10 foot cable allows sample length so you can configure your desk or presentation display however you want.
The HDMI / HDMI cable is fully compatible with all HDTV formats, supporting resolutions at 800 x 600, 1024 x 780, 1280 x 1024, 1600 x 1200, 1920 x 1200, 1080p (Full HD) and 4K (Ultra HD).
The 180ยบ Pivot Cable is designed for Ultra Low-Profile Connections for connecting HDMI cables behind components and wall mounted flatscreens. Instead of severly bending cables, which can limit uselife and/or cause an unreliable signal, the VisionTek HDMI / HDMI 10 foot Pivot Cable adapts to the angle of the needed connection for easy installation without the need for additional angle adapters.
VisionTek Display cables offer a quick solution for your display needs. Our cables work across all operating systems including OS X, Linux and Windows XP, Windows 7, Windows 8, and Windows 10. Where necessary, our cables are active for expanded compatibility with multi monitor displays, docks, and digital signage. AMD Eyefinity is also supported with our cables. Each VisionTek cable has been extensively tested with HP, Dell, Lenovo and Mac systems to ensure a wide range of system compatibility.
Key Features
- HDMI Type A Male to HDMI Type A Male 19 Pin Cable with precision impendance matching design.
- Bandwidth: Up to 240 MHz (10.2Gb/s)
- Supports DVD Audio, SACD, TrueHD and DTS-HD
- Supports Deep Color: 10-bit, 12-bit and 16-bit (RGB or YCbCr) color depths
- Supported Resolutions: Up to 4096 x 2160
- 3D Support: Works for true 3D gaming and 3D home theater applications
- Supports HDMI 1.4 and previous versions
- HDMI and Category 2 Certified
- HDCP, CEC and RoHS Certified
- Gauge: 28 AWG
- Length: 10 foot (3 meter)
| General Information | |
| Manufacturer | VisionTek Products, LLC |
| Manufacturer Part Number | 900750 |
| Manufacturer Website Address | http://www.visiontek.com |
| Brand Name | VisionTek |
| Product Name | HDMI 10 Foot Pivot Cables (M/M) |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 10 ft |
| Connector Type on First End | HDMI 1.4 Type A Digital Audio/Video - Male |
| Connector on First End Details | 1 x 19-pin HDMI 1.4 Type A Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 1.4 Type A Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 19-pin HDMI 1.4 Type A Digital Audio/Video - Male |
| Contact Plating | Gold |
| Conductor | Copper |
| Shielding | Yes |
| Device Supported | Set-top Box |
| Device Supported | Notebook |
| Device Supported | TV |
| Device Supported | Desktop Computer |
| Device Supported | Digital Signage Player |
| Device Supported | Monitor |
| Device Supported | Audio/Video Device |
| Device Supported | HDTV |
| Device Supported | Home Theater System |
| Device Supported | Projector |
| Device Supported | DVD Player |
| Device Supported | Dock |
| Device Supported | Stereo Receiver |
| Device Supported | PlayStation 4 |
| Device Supported | Xbox One |
| Device Supported | Blu-ray Player |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 10.2 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | HDCP |
| Features | Active |
| Features | Consumer Electronics Control (CEC) |
| Features | Plug & Play |
| Features | Eyefinity Technology |
| Features | 180° Swivel Connector |
| Physical Characteristics | |
| Product Color | Black |
| Weight (Approximate) | 0.45 lb |
| Shipping Height | 13" |
| Shipping Width | 4" |
| Shipping Weight (Approximate) | 1 lb |
| Miscellaneous | |
| Certifications & Standards | CEC |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
