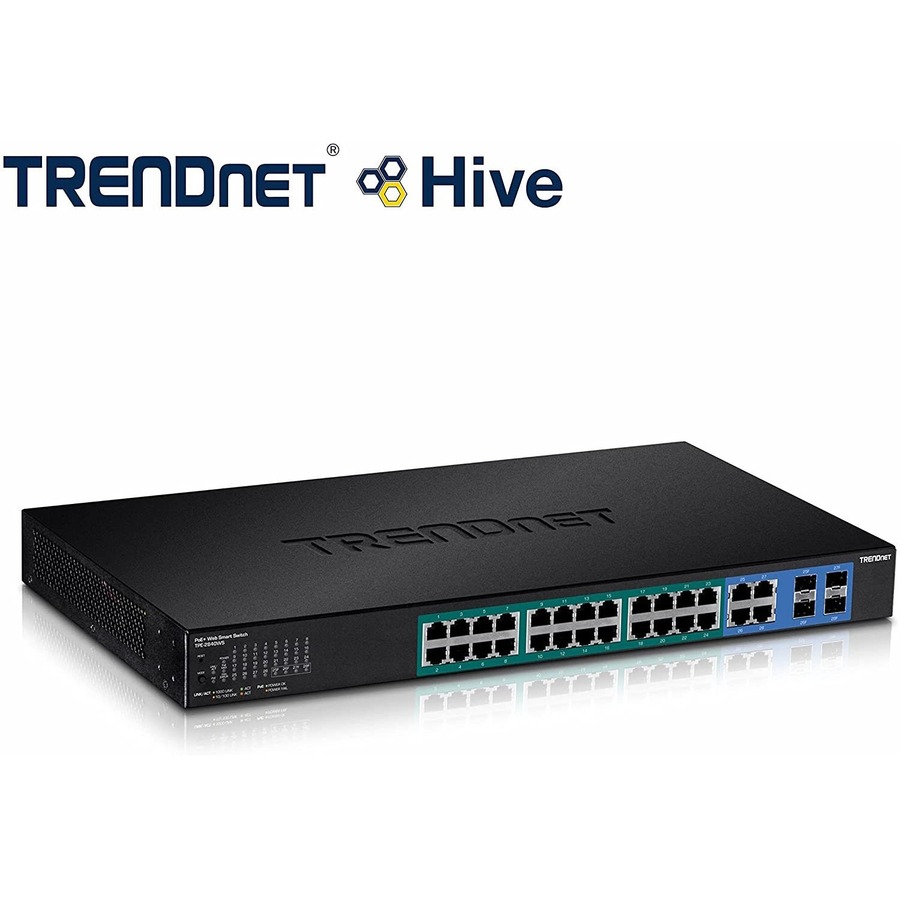

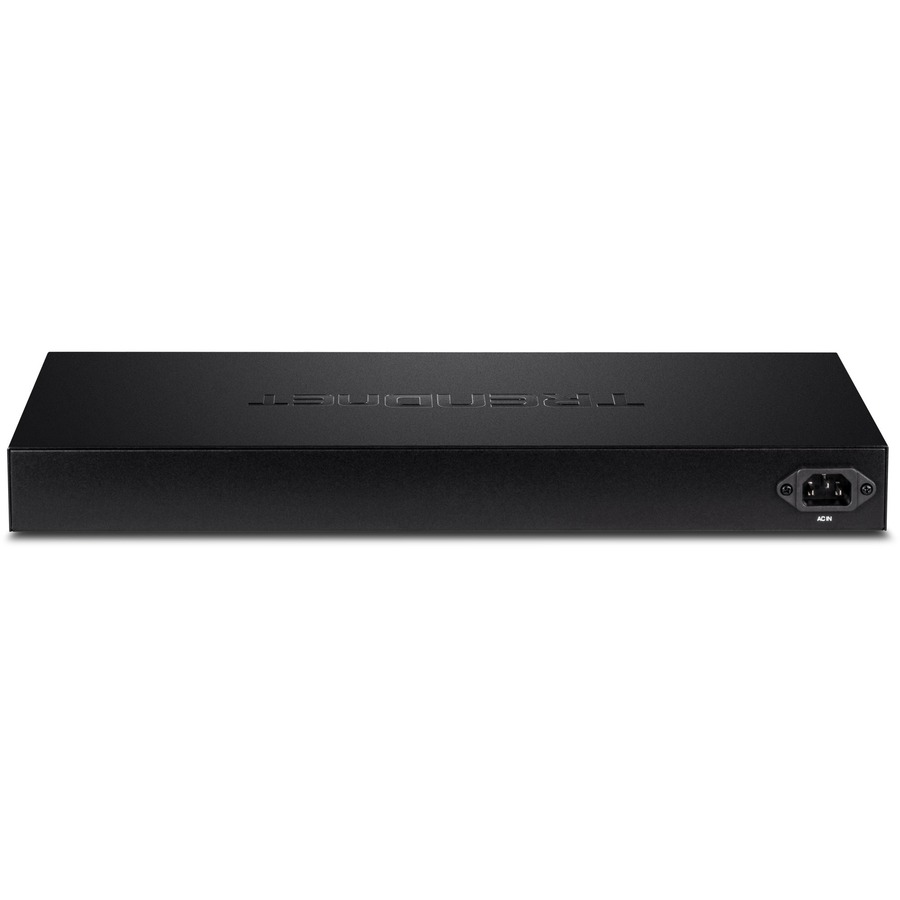

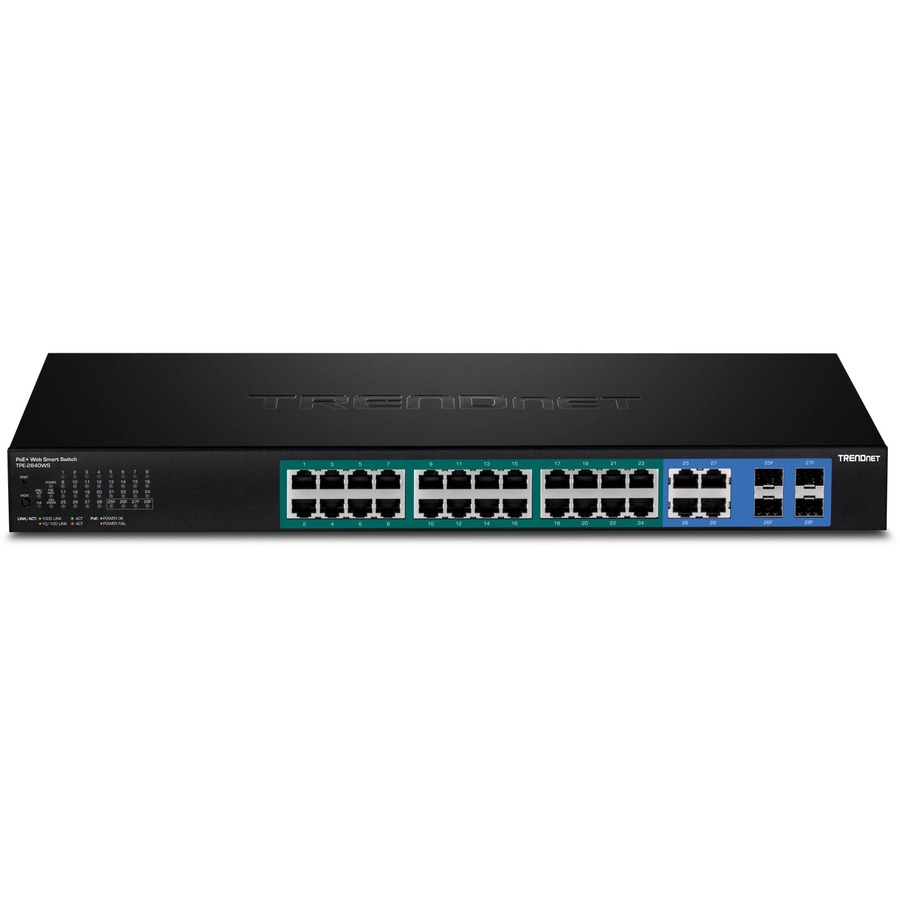

TPE-2840WS TRENDnet 28-Port Gigabit Web Smart PoE+ Switch

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

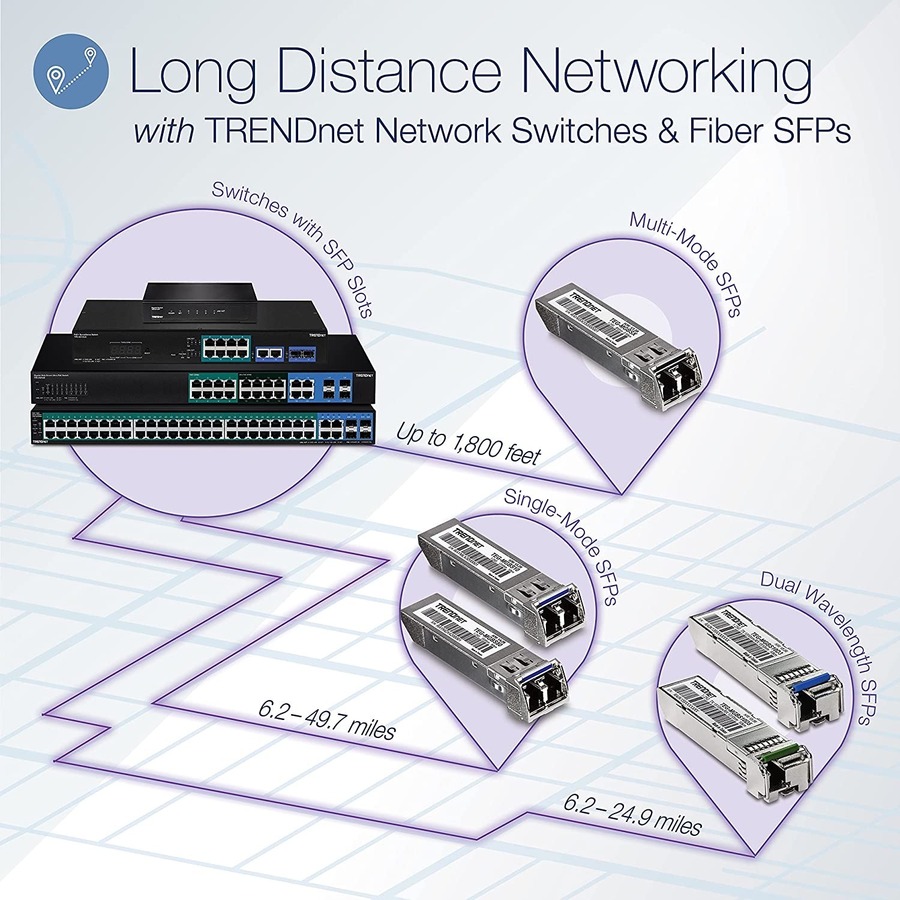

Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power

A 185W PoE power budget supplies power to PoE/PoE+ devices.

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TPE-2840WS
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TPE-2840WS
Product Name	24-port Gigabit Web Smart PoE Switch plus 4 SFP slots
Product Condition	New
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	28
Token Ring Port	No
LRE Port	No
Bypass	No
Modular	No
Management Port	No
USB	No
Number of PoE (RJ-45) Ports	20
Number of PoE+ (RJ-45) Ports	4
Stack Port	No
Port/Expansion Slot Details	24 x Gigabit Ethernet Network
Port/Expansion Slot Details	4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP
Shared SFP Slot	Yes
Number of SFP Slots	4
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Management	Web-based Management SNMP v1, v2c, v3 RMON v1 MIB QoS VLAN DHCP
Reliability
MTBF	257362 Hour
Power Description
PoE (RJ-45) Port	No
Power Source	Power Supply
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	2"
Width	8"
Depth	9"
Length	17.3"
Weight (Approximate)	15.84 oz
Miscellaneous
Package Contents	28-Port Gigabit Web Smart PoE+ Switch Quick Installation Guide CD-ROM (Utility & User's Guide) Power cord (1.8m/6 ft.) Rack mount kit
Country of Origin	China
TAA Compliant	Yes
NDAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
