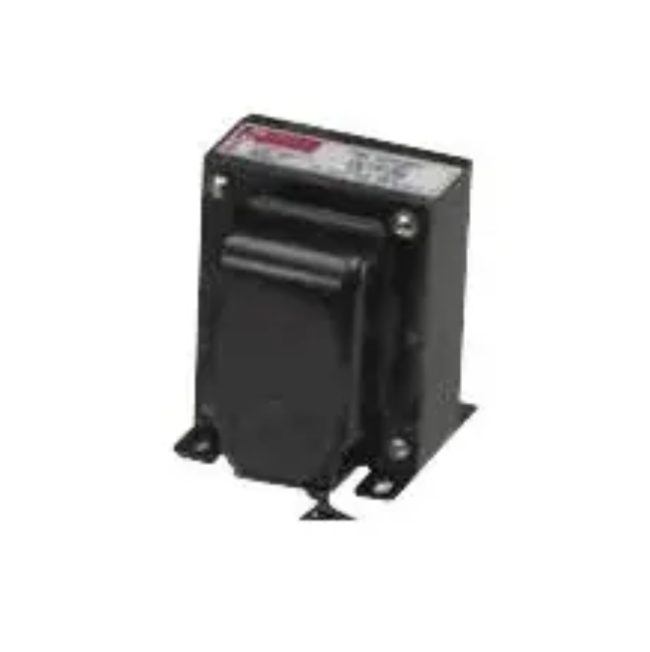

Image may not reflect the actual item.
Price: $84.99
Quantity:
In Stock: 10
Last Updated: Apr 14, 2026
No Sales Tax except these states
, PO and Wire.
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CA
Height: 63.5 mm
Length: 47.8 mm
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: 0 C
Mounting Style: Chassis
Operating Frequency: 50 Hz/60 Hz
Power Rating: 31.5 VA
Primary Voltage Rating: 115 VAC
Primary Winding: Single Primary Winding
Product: Transformers
Product Type: Industrial Control Transformers
Secondary Current Rating: 2.5 A
Secondary Voltage Rating: 12.6 VAC CT
Secondary Winding: Single Secondary Winding
Series: 167
| General Information | |
| Product Type | Power Transformers |
| Power Rating | - |
| Primary Voltage Rating | 115 V |
| Secondary Voltage Rating | 12.6 V |
| Secondary Current Rating | - |
| Mounting Style | Through Hole |
| Primary Winding | Single Primary Winding |
| Secondary Winding | Single Secondary Winding |
| Length | 47.8 mm |
| Width | 62 mm |
| Height | 63.5 mm |
| Outside Diameter | - |
