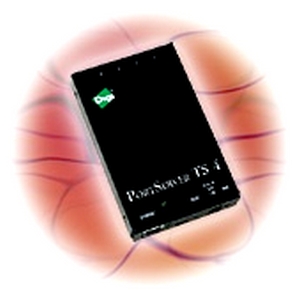

70001807 Digi PortServer TS MEI 4 port RS-232/422/485 RJ-45 Serial to Ethernet Device Server, 9-30VDC includes 12V/.5A Wall Mount power supply w/ US plug

Mfg Part Number:  70001807
Image may not reflect the actual item.
Price: $666.02
Quantity:
In Stock: 114
Last Updated: May 04, 2024
No Sales Tax except these states
, PO and Wire.
The PortServer TS 4 MEI device servers are designed for universal, high-performance serial-to-Ethernet connectivity. They are ideal for applications where secure device management and monitoring are critical.
Main Specification
General Information
Manufacturer Digi International
Manufacturer Part Number 70001807
Manufacturer Website Address http://www.digi.com
Brand Name Digi
Product Line PortServer
Product Series TS
Product Model TS 4 MEI
Product Name PortServer TS 4 MEI Device Server
Product Type Device Server
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 5
Power Description
Input Voltage 220 V AC
Input Voltage 110 V AC
Input Current 400 mA
Physical Characteristics
Form Factor Desktop
Height 5.4"
Width 3.3"
Depth 1"
Weight (Approximate) 2.25 oz
Miscellaneous
Additional Information
  • Easily network-enable multiple serial devices
  • Switch selectable EIA-232/422/485 for simple interfacing to any type of serial device
  • Patented Digi RealPort Technology for COM or TTY port control and management
  • Monitoring and diagnostic utility for simple and efficient device monitoring and troubleshooting
  • Modem emulation for easy integration and replacement of modems
  • Data Security via SSH v2
  • Port Buffering for data capture
  • Easy configuration through web interface (HTTP)
  • SNMP for easy network management
  • PPP for network enabling serial device
  • Industry leading low latency
  • Baud rates up to 230 Kbps
Compatibility Operating Systems:
  • AIX
  • Compaq Tru 64
  • HP-UX
  • Linux
  • Microsoft® Windows XP®
  • Microsoft Windows 2000®
  • Microsoft Windows NT®
  • Microsoft Windows 98/ME
  • SCO® OpenServer
  • SCO UnixWare
  • Solaris (Intel)
  • Solaris (SPARC)
  • TCP/UDP Socket Services are operating system independent
Certifications & Standards
  • FCC Part 15, A
  • CE
  • EN5024-1
  • EN 50082-1
  • UL 1950
  • CSA 22.2 No 950
  • IEEE 802.3af compliant
Warranty
Limited Warranty 5 Year
product information
Mechanical
Dimensions: WxHxD (mm) 133 x 84 x 24
Mounting Wall Mount
Enclosure Metal
Interface
Serial interface RS232/RS422/RS485
Serial interface number of ports 4
Serial Interface type of connector RJ45
Network interface 1 Port Ethernet RJ45 Connector
Network interface number of ports 1
Network interface type of connector RJ45
Power
Power Input Type Single DC / Jack
Operating Supply Voltage 9 to 30 VDC
Power Consumption 6W
Reliability
Operating Temperature 0 to 55C
Isolation Protection -
Surge Protection Yes
Standards and Certifications FCC Class A, CE Class A, UL, RoHS
The Digi One family of device servers delivers simple, reliable and cost-effective network connectivity for all your serial devices. The Digi One products address the growing need to connect individual devices to the network over industry-standard Ethernet connections in many applications - especially in the building automation, retail/point-of-sale and medical markets. The high-performance Digi One TS allows you to connect serial devices simply and reliably to your Ethernet network. The Digi One TS features selectable EIA-232/422/485 device interfaces, Powered Ethernet (802.3af) support, and an expanded input voltage range of 9-30VDC. It provides 10/100BaseT network interface, DHCP, SNMP, HTTP, PPP, Modbus/TCP.
  • Standard, reliable serial-to-Ethernet connectivity
  • 1, 2 or 4 serial ports
  • Switch selectable RS-232/422/485 RJ-45 serial
Device Type Device server
Width 3.3 in
Depth 5.2 in
Height 0.9 in
Localization North America
Networking
Form Factor External
Ports Qty 4
Connectivity Technology Wired
Data Transfer Rate 230 Kbps
Data Link Protocol RS-232, RS-422, RS-485
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP, HTTP
Status Indicators Port status
Features Flow control, auto-sensing per device, DHCP support, RARP support, manageable
Authentication Method Secure Shell (SSH)
Compliant Standards IEEE 802.3af
Expansion / Connectivity
Interfaces 4 x serial - RS-232/422/485 - RJ-45 Ý 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Cables Included 1 x serial cable
Power
Power Device Power adapter - external
Voltage Required AC 120/230 V ( 50/60 Hz )
Software / System Requirements
Software Included Drivers & Utilities
OS Required SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP
Manufacturer Warranty
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 140 °F
Humidity Range Operating 5 - 90%
