TRIAD MAGNETICS  Selector

TRIAD MAGNETICS Power Transformers POWER XFMR 12.6 Vct at 200 mA UL/cUL - Class 2, 115V PCB MOUNT / F12-200-C2

Mfg Part Number:  F12-200-C2

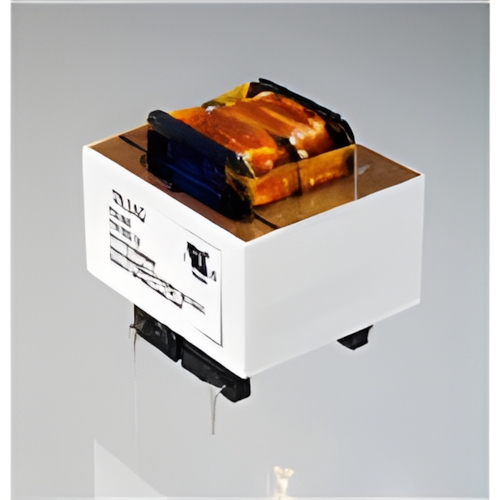

Image may not reflect the actual item.
Price: $34.99
Quantity:
In Stock: 941
Last Updated: Apr 10, 2026
No Sales Tax except these states
, PO and Wire.

1. Maximum Power: 2.5VA
2. Primary: 115V, 50/60 Hz
3. Secondaries: 6.3V @ 0.2A each
4. Temperature Rise: 25C TYP

General Information
Product Type Class 2 Transformers
Power Rating 2.5 VA
Primary Voltage Rating 115 V
Secondary Voltage Rating 12.6 V CT/6.3 V
Secondary Current Rating 0.2 A/0.4 A
Mounting Style Through Hole
Primary Winding Single Primary Winding
Secondary Winding Dual Secondary Winding
Length 1.375 in
Width 1.125 in
Height 1.187 in
Outside Diameter -
