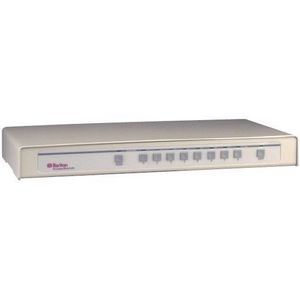

CompuSwitch CS8R is built with Raritan's unique, intelligent emulation technology, which dedicates an individual processor to each connected computer so that each server always sees its own keyboard and mouse. This prevents keyboard and mouse lockups and ensures flawless boot-up and operation of any mix of servers running any operating system.
Select servers directly by touching the individual port buttons on the front panel or by using hot-key commands from the keyboard. Standard features like AutoScan and AutoSkip make operation simple and convenient. To extend computers and cascaded units up to 3,300 feet, use Raritan's Cat5 Reach or FiberReach II.
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | CS8R |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Line | CompuSwitch |
| Product Name | CompuSwitch CS8R KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Daisy Chain Supported | Yes |
| Video | |
| Graphic Mode | XGA |
| Graphic Mode | SVGA |
| Graphic Mode | VGA |
| Maximum Video Resolution | 1600 x 1200 |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| VGA | Yes |
| Number of PS/2 Ports | 10 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Rack-mountable |
| Height | 1.8" |
| Width | 19" |
| Depth | 13.1" |
| Weight (Approximate) | 6.20 lb |
| Miscellaneous | |
| Compatibility |
|
| Additional Information |
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
CompuSwitch is Raritan's economical, multi-platform, single-user KVM switch and is available with models for 8 computer, expandable to control up to 64 computers. Its industrial strength and desktop or rack mount chassis makes CompuSwitch an ideal choice for corporate server rooms, computer test labs, and rack mount applications. CompuSwitch will help eliminate the cost and clutter of unnecessary equipment, reclaim space, and improve operational productivity for a host of applications.
CompuSwitch is built with Raritan's unique, intelligent emulation technology, which dedicates an individual processor to each connected computer so that each computer always sees its own keyboard and mouse. This prevents keyboard and mouse lockups and ensures smooth, flawless bootup and operation of any mix of computers running any operating system. Select computers directly by touching the individual channel buttons on the front panel or by using hot-key commands from the keyboard. Standard features like AutoScan and AutoSkip make operation simple and convenient. For an additional keyboard, monitor, and mouse access point up to 650 feet away, use Raritan's Cat5 Reach.
High reliability, low cost, easy to use
8-channel desktop models
Optional 19" rack mount brackets for desktop models - 1U (1.75") high
4-channel, 8-channel models in 19" rack mount chassis - 1U
Optional rack mount extensions for 24" racks
Dedicated keyboard and mouse emulator for each computer ensures flawless bootup and operation
Multi-platform - mix PCs, Macs, Suns, Alphas, RS/6000s, HP9000s, SGIs, and ASCII devices; also USB support (optional adapters available)
Easy-to-manage, tangle-proof, high-resolution PC cables
Supports VGA, SVGA, XGA high-resolution video - 1600 x 1200
Use hot-key commands or individual channel buttons on front panel for convenient operation
Supports IntelliMouse
SCAN for effortless monitoring SKIP to filter unused channels
Connector Cables
