Image may not reflect the actual item.
Price: $182.43
Quantity:
In Stock: 5
Last Updated: Oct 14, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
ITE (Commercial) |
|
|
Voltage - Isolation |
3 kV |
|
|
Efficiency |
81% |
|
|
Operating Temperature |
-10°C ~ 71°C (With Derating) |
|
|
Mounting Type |
Chassis Mount |
|
|
Size / Dimension |
4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
| General Information | |

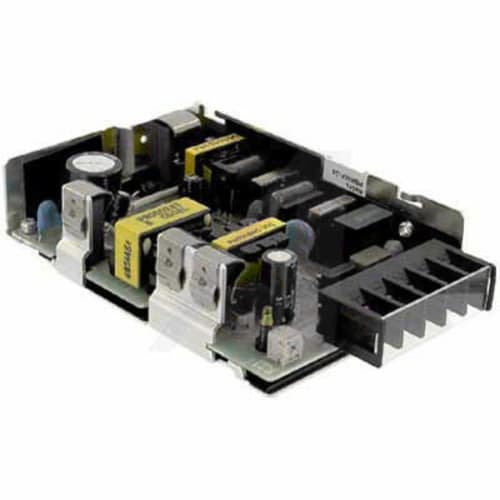

| Product Type | Switching Supplies |
| Open Frame/Enclosed | Open Frame |
| Output Power Rating | 50.4 W |
| Input Voltage | 85 VAC to 264 VAC/120 VDC to 370 VDC |
| Number of Outputs | 1 Output |
| Output Voltage-Channel 1 | 9 V |
| Output Current-Channel 1 | 5.6 A |
| Commercial/Medical | Commercial |
| Output Voltage-Channel 2 | - |
| Output Current-Channel 2 | - |
| Mounting Style | Chassis |
| Length | 120 mm |
| Width | 82 mm |
| Height | 31 mm |
