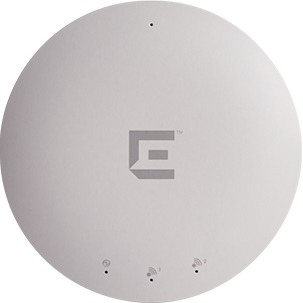

WS-AP3805I-03 Extreme Networks identiFi AP3805I IEEE 802.11ac 1.17 Gbit/s Wireless Access Point
Mfg Part Number: WS-AP3805I-03 , Item #: 1831976
Image may not reflect the actual item.
Price: $3,813.81
+ Free Shipping
Quantity:
More to Come
Last Updated: Aug 22, 2025
No Sales Tax except these states
, PO and Wire.
The AP3805 is a feature rich 802.11ac and 802.11abgn indoor access point that delivers enterprise-grade performance and security without the premium cost. Designed to blend into the office, classroom or hotel environment, the AP3805 is ideal for providing secure 802.11ac and 802.11abgn connectivity for medium-density environments such as schools, hotels and conference centers.
The AP3805i comes with an integrated four antenna array for ease of installation. The AP3805e requires professional installation and includes four RP-SMA antenna connectors supporting both 2.4GHz and 5GHz band antennas. AP3805 uses 802.3af Power over Ethernet (PoE) without reducing its performance nor degrading its enterprise-grade capabilities. An optional external power supply is available for deployments that do not support Power over Ethernet.
The AP3805 is built on the latest Wi-Fi technology including 802.11ac, dynamic radio management, and spectrum analysis with interference classification, beam forming, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 2x2:2 platform is capable of delivering up to 1.17Gbps over-the-air-performance and up to 40,000 packets per second on the wire port.The AP3805 comes with brackets to be installed on to most drop ceiling and wall mounts. Multiple antenna offerings (e.g., omni, sector, and panel) ensure that the AP3805e deployment can be optimized to meet any unique coverage or capacity need.
The AP3805i comes with an integrated four antenna array for ease of installation. The AP3805e requires professional installation and includes four RP-SMA antenna connectors supporting both 2.4GHz and 5GHz band antennas. AP3805 uses 802.3af Power over Ethernet (PoE) without reducing its performance nor degrading its enterprise-grade capabilities. An optional external power supply is available for deployments that do not support Power over Ethernet.
The AP3805 is built on the latest Wi-Fi technology including 802.11ac, dynamic radio management, and spectrum analysis with interference classification, beam forming, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 2x2:2 platform is capable of delivering up to 1.17Gbps over-the-air-performance and up to 40,000 packets per second on the wire port.The AP3805 comes with brackets to be installed on to most drop ceiling and wall mounts. Multiple antenna offerings (e.g., omni, sector, and panel) ensure that the AP3805e deployment can be optimized to meet any unique coverage or capacity need.
Main Specification
| General Information | |
| Manufacturer | Extreme Networks, Inc |
| Manufacturer Part Number | WS-AP3805I-03 |
| Manufacturer Website Address | http://www.extremenetworks.com |
| Brand Name | Extreme Networks |
| Product Line | identiFi |
| Product Model | AP3805I |
| Product Name | identiFi AP3805I Wireless Access Point |
| Packaged Quantity | 3 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5.85 GHz |
| Frequency Band | 2.40 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.17 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Form Factor | Wall Mountable |
| Height | 1.6" |
| Diameter | 6.2" |
| Weight (Approximate) | 12 oz |
| Warranty | |
| Limited Warranty | Lifetime |
