CISCO

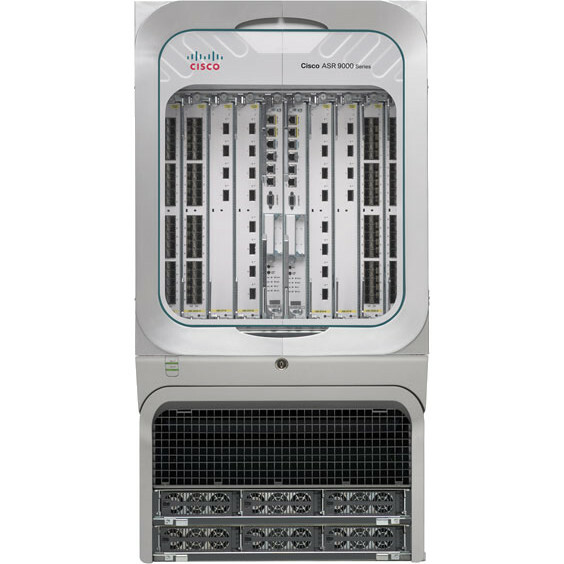

ASR-9010-DC-SE-BUN Cisco ASR 9010 Router Chassis

Mfg Part Number:  ASR-9010-DC-SE-BUN

Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $25,034.18 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2026
No Sales Tax except these states
, PO and Wire.
The Cisco ASR 9000 Series is an operationally simple, future-optimized platform using next-generation hardware and software. The following are highlights of this next-generation platform.
  • The Cisco ASR 9000 System brings increased power and simplicity to the edge, and the ASR 9000v sets the industry benchmark as a virtualized compact carrier-class converged access and aggregation platform. Leveraging Cisco's "network virtualization" or nV Technology, the Cisco ASR 9000 System offers exceptional pay as you grow scale, carrier-class reliability, and simplified service provisioning.
  • Cisco IOS XR modular operating system: The Cisco ASR 9000 Series uses the Cisco IOS XR operating system, made famous by the highly successful Cisco CRS Carrier Routing System platform in core deployments. Cisco IOS XR operating system is purpose-built for distributed systems such as the Cisco ASR 9000 Series and uses a microkernel architecture to achieve true modularity. This modularity provides the path to nonstop operations during software image upgrades or module changes, without affecting normal platform operations.
Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number ASR-9010-DC-SE-BUN
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Series ASR 9000
Product Model 9010
Product Name ASR 9010 Router Chassis
Product Type Router Chassis
Interfaces/Ports
USB No
Powerline No
Management Port No
Token Ring Port No
I/O Expansions
Total Number of Expansion Slots 10
Expansion Slot Type Route Processor
Expansion Slot Type Line Card
Management & Protocols
Security Features
  • ACL
  • AAA
  • TACACS+
  • SSH
Power Description
Power Source Power Supply
Physical Characteristics
Form Factor Rack-mountable
Height 36.8"
Width 17.5"
Depth 31.5"
Weight (Approximate) 191 lb
Miscellaneous
Package Contents
  • ASR 9010 Router Chassis
  • Fans
  • 2 x Route Switch Processor RSP440 SE
Certifications & Standards

Emission:

  • FCC Class 47CFR15 A
  • ICES 003 Class A
  • AS/NZS CISRP22 Class A
  • CISPR 22 (EN55022) Class A
  • VCCI Class A
  • BSMI Class A
  • IEC/EN 61000-3-12
  • IEC/EN 61000-3-11
  • EN55022
  • EN 50121-4

EMC:

  • IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV
  • Air)
  • IEC/EN-61000-4-3: Radiated Immunity (10V/m)
  • IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)IEC/EN 61000-4-5: Surge AC Port (4kV CM, 2kV DM)
  • IEC/EN-61000-4-5: Signal Surge Ports (1kV)
  • IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
  • IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
  • IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
  • IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage
  • Variations
  • EN55024: Information Technology Equipment (Immunity)
  • EN50082-1/EN-61000-6-1: Generic Immunity Standard
  • EN 50121-4: Railway EMC

Safety:

  • UL/CSA/IEC/EN 60950-1
  • IEC/EN 60825 Laser Safety
  • ACA TS001
  • AS/NZS 60950
Warranty
Limited Warranty 1 Year
