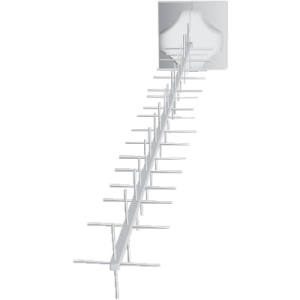

AMY-9M16X2 Ubiquiti 900 MHz 2x2 MIMO Yagi Antenna
Mfg Part Number: AMY-9M16X2 , Item #: 1814416
Image may not reflect the actual item.
Price: $193.36
+ Free Shipping
Quantity:
More to Come
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
The airMAX® 900 MHz Yagi Antenna is a high-gain array antenna designed to seamlessly integrate with the RocketM900 radio (sold separately). It features incredible range performance of up to 20+ km and speeds of 90+ Mbps.
On the right is one example of how the airMAX Yagi Antenna can be deployed for directional coverage in Point-to-Point (PtP) bridging and a Point-to-MultiPoint (PtMP) network.
2x2 Dual-Polarity Design
The airMAX Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.
Long-Range Deployments
The airMAX Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLoS) applications.
Durable Construction
The airMAX Yagi Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketM900 radio and airMAX Yagi Antenna for your application.
On the right is one example of how the airMAX Yagi Antenna can be deployed for directional coverage in Point-to-Point (PtP) bridging and a Point-to-MultiPoint (PtMP) network.
2x2 Dual-Polarity Design
The airMAX Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.
Long-Range Deployments
The airMAX Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLoS) applications.
Durable Construction
The airMAX Yagi Antenna features a robust mechanical design for outdoor application use.
Plug and Play IntegrationThe airMAX Yagi Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketM900 radio and airMAX Yagi Antenna for your application.
Pair the RocketM900 radio with the airMAX Yagi Antenna to create a powerful basestation. This combination gives network architects unparalleled flexibility and convenience.
Main Specification
| General Information | |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | AMY-9M16X2 |
| Manufacturer Website Address | http://www.ui.com |
| Brand Name | Ubiquiti |
| Product Line | airMAX |
| Product Model | AMY-9M16 |
| Product Name | 900 MHz 2x2 MIMO Yagi Antenna |
| Packaged Quantity | 2 |
| Product Type | Antenna |
| Technical Information | |
| Frequency Band Type | UHF |
| Operating Frequency Range | 902 MHz to 928 MHz |
| Antenna Gain (Isotropic) | 16 dBi |
| Polarization | Dual Linear |
| Survival Wind Speed | 2112 in/s |
| Features | MIMO Technology |
| Interfaces/Ports | |
| Number of Connectors | 2 |
| Connector Type | RF |
| USB | No |
| Physical Characteristics | |
| Height | 53.74" |
| Width | 8.46" |
| Depth | 8.58" |
| Form Factor | Pole |
| Weight (Approximate) | 5.51 lb |
| Miscellaneous | |
| Application/Usage | Base Station |
| Package Contents |
|
| Compatibility | Ubiquiti Rocket M900 Basestation |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
