TRIPP LITE

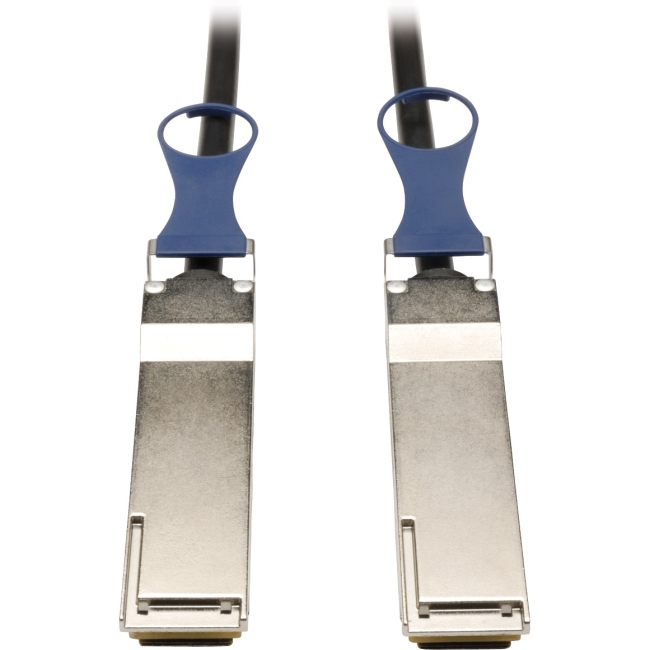

N282-20N-BK Tripp Lite QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 0.5M (20-in.)
Mfg Part Number: N282-20N-BK , Item #: 1812779
, PO and Wire.
Tripp Lite's 0.5M (20-in.) QSFP+ 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N282-20N-BK |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N282-20N-BK |
| Product Name | QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 0.5M (20-in.) |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | QSFP+ |
| Cable Characteristic | Patch Cable |
| Cable Length | 1.70 ft |
| Connector Type on First End | QSFP+ Network - Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| Connector on Second End Details | 1 x QSFP+ Network - Male |
| Device Supported | Network Device |
| Features | Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 12" |
| Shipping Width | 10.50" |
| Shipping Weight (Approximate) | 3.68 oz |
| Miscellaneous | |
| Certifications & Standards | MSA |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Type | - |
| Connector End A | - |
| Connector End A Pin Count | - |
| Connector End B | - |
| Connector End B Pin Count | - |
| Gender | - |
| Length | - |
| Color | - |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
