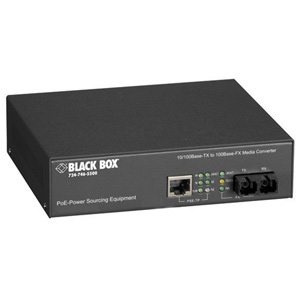

Constrained by the distance limits of PoE over copper? Incorporate fiber into your network! This PoE PSE Media Converter not only enables you to connect copper cables to long-distance fiber data links, it also safely powers compatible devices plugged in on the copper side. Fully compliant with the 802.3af Power over Ethernet (PoE) standard, the converter functions as power source equipment (PSE) to provide -48 VDC power via copper wiring to access points, cameras, and similar devices in areas without nearby power outlets. For equipment protection, it offers overcurrent and undercurrent detection, as well as fault protection input and power monitoring. It also has powered device signature sensing to detect when a 802.3af compliant device is connected downstream. Plus, link-fault passthrough and far-end fault detection features keep you from sending valuable data across invalid links.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LPM601A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LPM600 |
| Product Name | PoE PSE Media Converter |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 2 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1.6" |
| Width | 6.3" |
| Depth | 5.3" |
| Miscellaneous | |
| Additional Information | For fiber connections up to 20 kilometers (12 mi.), order the single-mode model. For distances up to 100 km (62.1 mi.), call our FREE Tech Support. |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
