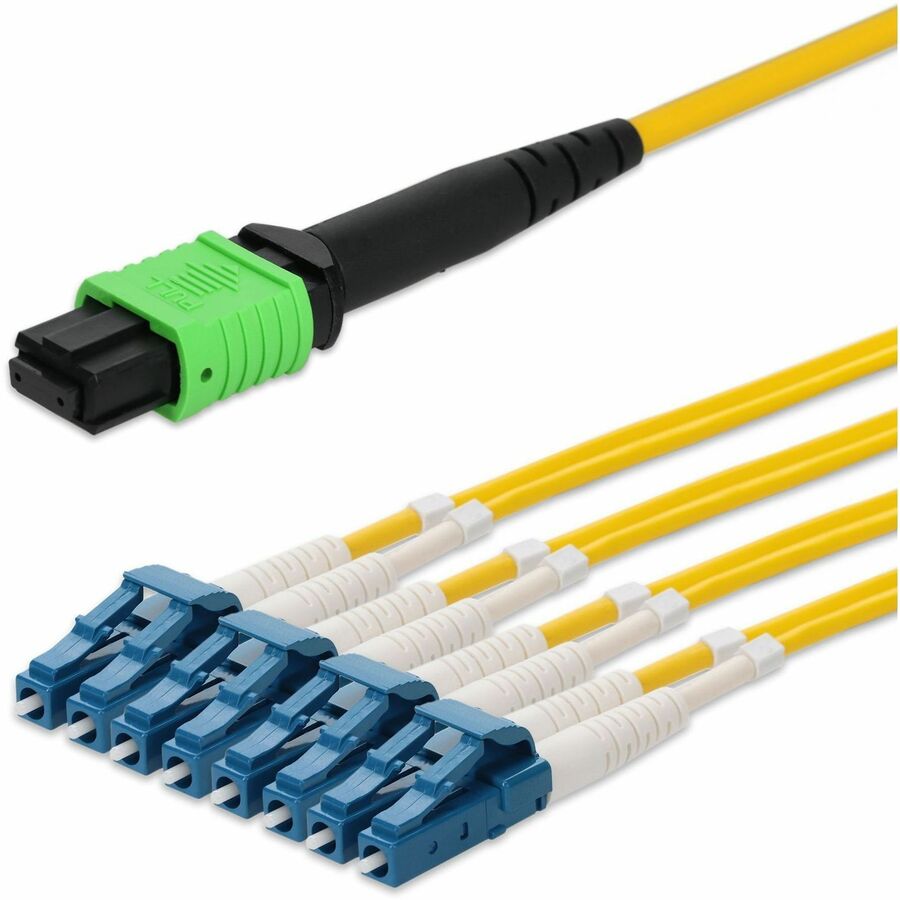

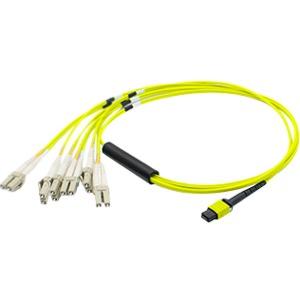

ADD-MPO-4LC15M9SMF AddOn Fiber Optic Duplex Patch Network Cable

This is a 1.5m MPO/APC to 4xLC Duplex (8xLC)/UPC Yellow OS2 OFNR (Riser-Rated) 8-Strand SMF Fiber Fanout Cable. OS2 fiber optic cable is a high-performance single-mode fiber designed for long-distance data transmission, making it ideal for businesses requiring reliable and fast network connections over longer distances up to 200kilometers. With low signal loss and the ability to support 1G to 100G speeds, ensuring efficient communication across offices, data centers, or industrial facilities. OFNR riser fiber cable jackets are designed for vertical installations in building risers, providing fire-resistant protection to ensure safe data transmission between floors. These cables meet strict safety standards, making them ideal for businesses that need reliable, in-building network infrastructure without the risk of fire spreading through conduits. The Standard Boot option provides reliable and straightforward connections for fiber cables, making it an economical choice for various networking applications. Ideal for businesses that require dependable performance without the complexity, this option ensures consistent data transmission in everyday network setups. Our cables are TIA compliant, ensuring performance for all networking needs.

General Information
Manufacturer	AddOn
Manufacturer Part Number	ADD-MPO-4LC15M9SMF
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	Fiber Optic Network Cable
Packaged Quantity	1.0 Piece
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Cable Characteristic	Fan-out Cable
Cable Configuration	Crossover
Fiber Optic Mode	Single-mode
Fiber Type	Duplex
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Category	OS2
Cable Length	4.92 ft
Connector Type on First End	MPO Network - Female
Connector Gender on First End	Female
Connector on First End Details	2 x MPO-12 Network - Female
Connector Type on Second End	LC Network - Male
Connector Gender on Second End	Male
Connector on Second End Details	4 x LC Network - Male
Shielding	No
Jacket Type	Riser
Device Supported	Network Device
Boot Type	Standard
Features	Ultra Physical Contact (UPC)
Features	Bend Insensitive
Features	Fire Resistant
Features	Angled Physical Contact (APC)
Features	Stranded
Physical Characteristics
Color Family	Yellow
Product Color	Yellow
Color Details	Connector 1 Color: Green Connector 2 Color: Blue
Product Material	Fiber
Jacket Material	Polyvinyl Chloride (PVC)
Height	0.1"
Width	0.3"
Length	59.1"
Weight (Approximate)	0.10 lb
Miscellaneous
Certifications & Standards	TIA Compliant
Country of Origin	China
TAA Compliant	No
Warranty
Limited Warranty	Lifetime
