LANTRONIX  Selector

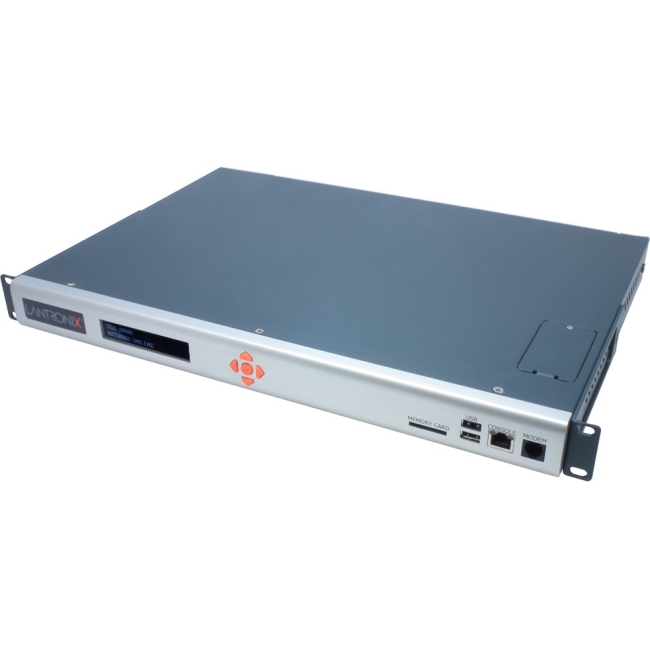

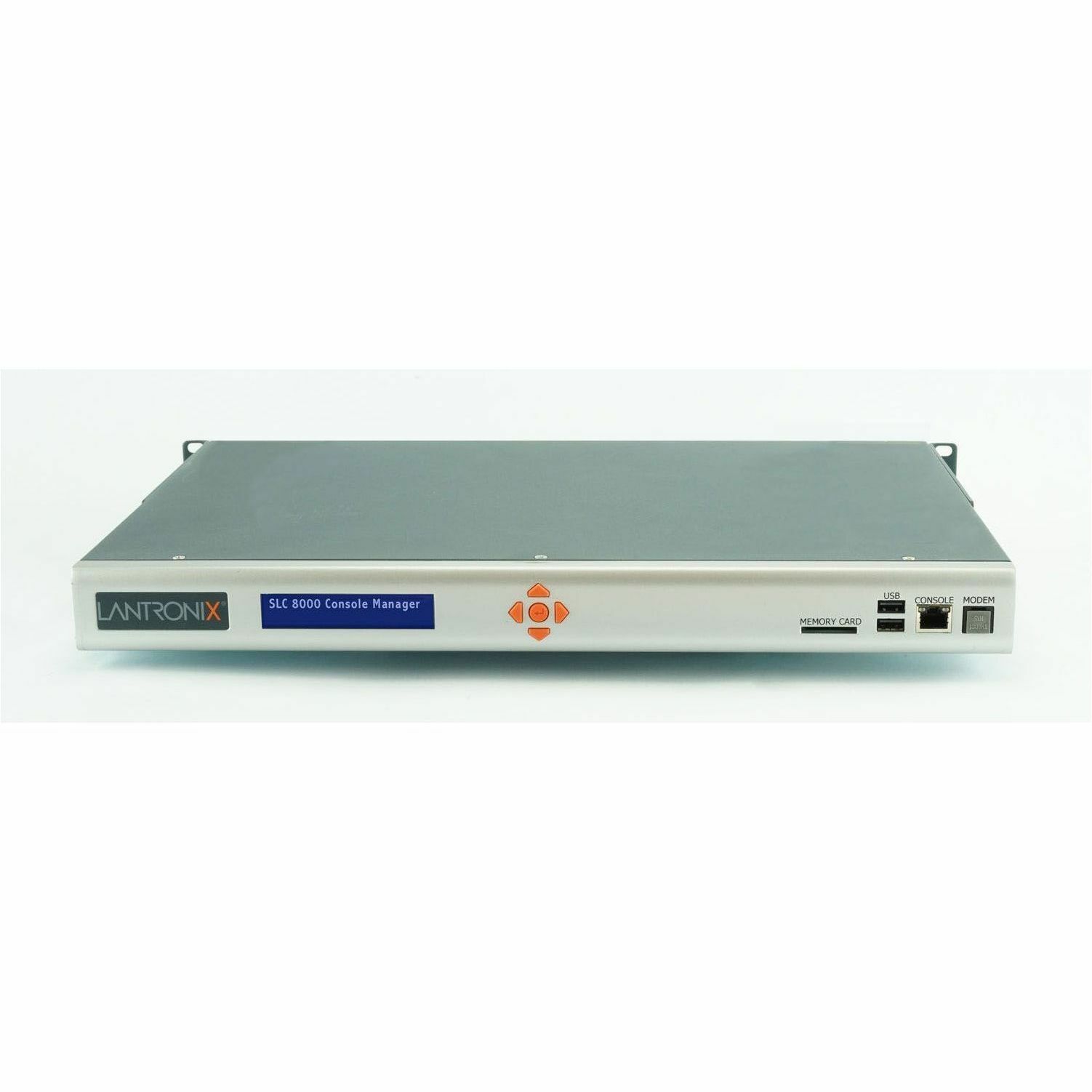

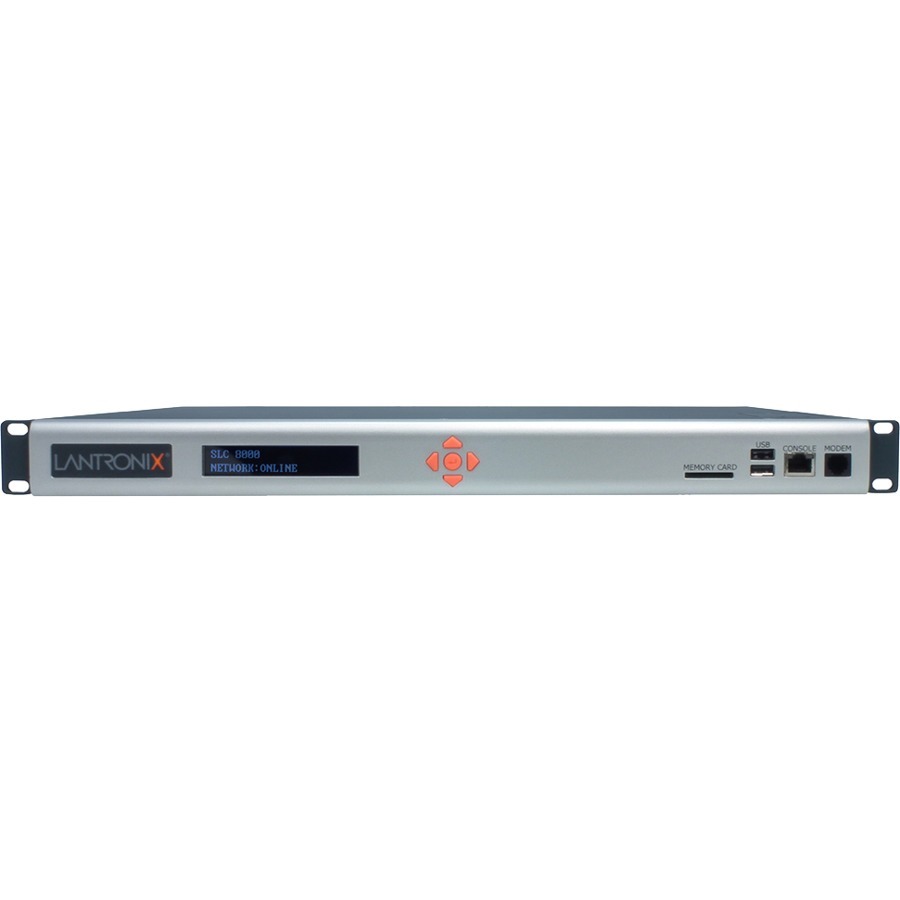

SLC80161201S Lantronix SLC 8000 Advanced Console Manager, RJ45 16-Port, AC-Single Supply

Mfg Part Number:  SLC80161201S
Image may not reflect the actual item.
Price: $3,560.31
Quantity:
In Stock: 23
Last Updated: Jan 15, 2026
No Sales Tax except these states
, PO and Wire.
  • Secure access to IT equipment with RS-232 and USB console ports
  • Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
  • Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
  • Connect in-band with dual Gigabit Ethernet or dual SFPs and through out-of-band connections including dial-up and cellular connectivity options.
  • Modular design to deploy what you need at each location, up to 48 ports: RJ-45 serial, Ethernet, or serial USB.

More from the Manufacturer

Main Specification
General Information
Manufacturer Lantronix, Inc
Manufacturer Part Number SLC80161201S
Manufacturer Website Address http://www.lantronix.com
Brand Name Lantronix
Product Series SLC
Product Model 8000
Product Name Lantronix 16-port SLC 8000
Packaged Quantity 1
Product Type Device Server
Processor & Chipset
Processor Speed 1 GHz
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Wireless Specifications
Wireless LAN No
ISM Band No
UNII Band No
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 10/100/1000Base-T
Interfaces/Ports
Network (RJ-45) Yes
USB Yes
Serial Port Yes
Parallel Port No
Centronics Port No
Management Port Yes
PoE (RJ-45) Port No
Number of Network (RJ-45) Ports 2
Number of USB Ports 2
Number of Serial Ports 16
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Physical Characteristics
Form Factor Rack-mountable
Height 1.8"
Width 17.3"
Depth 12"
Weight (Approximate) 11.10 lb
Miscellaneous
Package Contents
  • SLC 8000 Advanced Console Manager, RJ45 16-Port, AC-Single Supply
  • 1 x Inlet AC Power Cord
  • 1 x RJ45 to DB9F Adapter
  • 1 x RJ45 to RJ45, CAT5 Cable, 6.6 ft (2m)
  • 1 x RJ4 Loopback Cable
Certifications & Standards
  • FCC Part 15
  • CE (EN55022, EN55024, EN60950)
  • CSA
  • VCCI
  • UL/CUL
  • C-Tick
  • CB Scheme
  • NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
  • IPv6 Ready
Environmentally Friendly Yes
Country of Origin China
Warranty
Limited Warranty 3 Year
product information
Mechanical
Dimensions: WxHxD (mm) 305 x 438 x 44
Mounting Rack Mount
Enclosure -
Interface
Serial interface RS232
Serial interface number of ports 16
Serial Interface type of connector RJ45
Network interface 2 Port Ethernet RJ45 Connector
Network interface number of ports 2
Network interface type of connector RJ45
Power
Power Input Type Single AC / Plug
Operating Supply Voltage 100 to 240 VAC
Power Consumption 30W
Reliability
Operating Temperature 0 to 50C
Isolation Protection -
Surge Protection -
Standards and Certifications -
