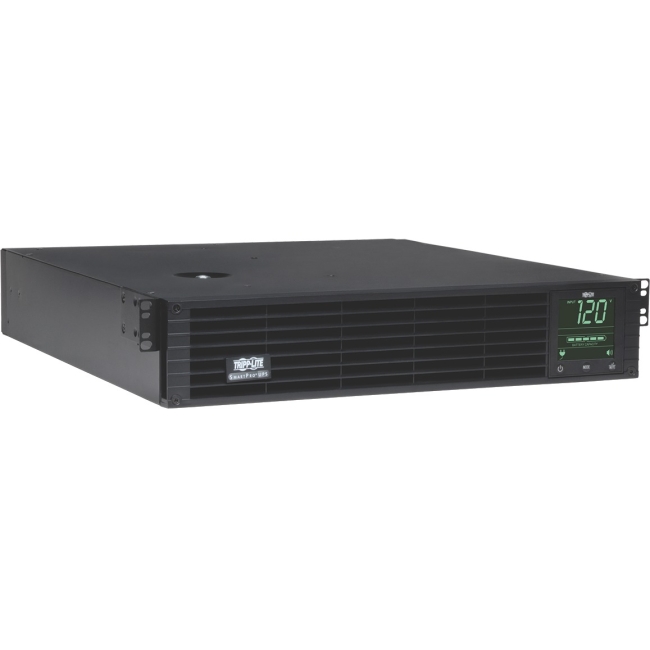

SM3000RMXLNTAA Tripp Lite 3000VA 2880W UPS Smart Rackmount LCD AVR 120V USB SNMP 2U TAA

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SM3000RMXLNTAA
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SM3000RMXLNTAA
Product Name	SmartPro SM3000RMXLNTAA 3000 VA Tower/Rack-mountable UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Type	NEMA L5-30R
Receptacle Detail	8 x NEMA 5-15/20R
Receptacle Detail	1 x NEMA L5-30R
Cord Length	10 ft
Power Description
Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2880 W
Input Voltage	120 V AC
Input Current	24 A
Output Voltage	120 V AC
Waveform Type	Pure Sine Wave
Surge Energy Rating	570 J
Circuit Breaker	Yes
Management
Network Management	SNMP Manageable
Alarm	Remote Shutdown
Alarm	Overload
Alarm	UPS StartUp
Alarm	UPS Fault
Alarm	Low Battery
Alarm	Power Failure
Interfaces/Ports
Serial Port	Yes
USB	Yes
Battery Information
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	10 Minute
Hot Swappable	Yes
Typical Battery Recharge Time	5 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Physical Characteristics
Height	3.5"
Width	17.5"
Depth	19"
Rack Height	2U
Form Factor	Rack/Tower
Form Factor	Rack-mountable
Weight (Approximate)	72.80 lb
Miscellaneous
Package Contents	SmartPro SM3000RMXLNTAA 3000 VA Tower/Rack-mountable UPS USB, Serial & EPO Cabling 4 x Post Rackmount Installation Kit Instruction Manual
Software Included	PowerAlert Software
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	2 Year
