COMNET

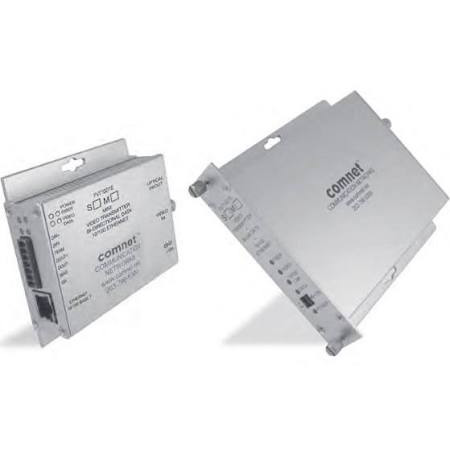

COMNET FVR10D1EM Digitally Encoded Video Receiver + Bi-directional Data, Up-the-Coax + Fast Ethernet, mm, 1 fiber
Mfg Part Number: FVR10D1EM , Item #: 1772963
Image may not reflect the actual item.
Price: $1,524.95
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 15, 2025
No Sales Tax except these states
, PO and Wire.
The ComNet FVT/FVR10D1E series video transmitter/receiver and data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from most major manufacturers. Packaged in the exclusive ComNet ComFit housing, the FVT/ FVR10D1E units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Main Specification
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | FVR10D1EM |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Series | FVT/FVR10D1E(M,S) |
| Product Model | FVR10D1EM |
| Product Name | FVR10D1EM Video Extender Receiver |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 9842.52 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Coaxial |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Receiver Height | 1.10" |
| Receiver Width | 5.30" |
| Receiver Depth | 6.10" |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Form Factor | Rail-mountable |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Networking System |
| Application/Usage | CCTV System |
| Application/Usage | Surveillance System |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
