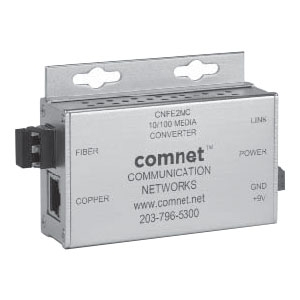

The ComNet CNFE2MC Ethernet 2 port media converter and CNFE22MC dual 2 port are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MC transmits and receives a single channel of Ethernet data and the CNFE22MC transmits and receives two independent channels in one unit. The electrical interface will Auto- Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status. Packaged in the exclusive ComNet ComFit housing, the CNFE2MC and CNFE22MC units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | CNFE2MC-M |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Model | CNFE2MC-M |
| Product Name | CNFE2MC-M Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Height | 1.1" |
| Width | 5.3" |
| Depth | 6.1" |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
