COMNET FDC10S1B Bi-directional Contact Closure Transceiver, sm, 1 fiber
Mfg Part Number: FDC10S1B , Item #: 1772797

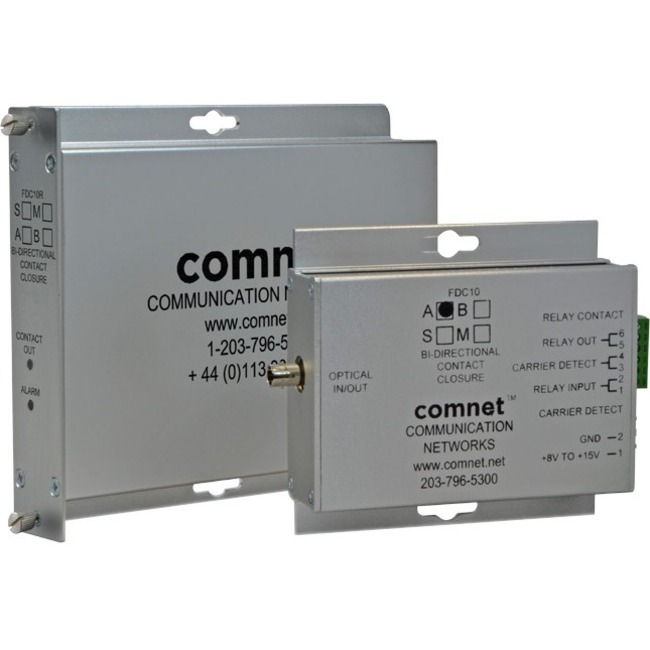

Image may not reflect the actual item.
Price: $856.98
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 09, 2025
No Sales Tax except these states
, PO and Wire.
The ComNet™ FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input. One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.
Main Specification
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | FDC10S1B |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Series | FDC10 |
| Product Name | Bi-Directional Contact Closure Transceiver |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | No |
| Number of PoE (RJ-45) Ports | No |
| Number of PoE+ (RJ-45) Ports | No |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 69 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 2 W |
| Plug/Connector Type | Terminal Block |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Surface-mountable |
| Height | 3.7" |
| Width | 4" |
| Depth | 1" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Audio |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
