XILINX SOLR-SFM40G-SR4 Solarflare 40GBASE-SR4 850nm QSFP+ Optical Transceiver
Mfg Part Number: SOLR-SFM40G-SR4 , Item #: 1761687
Image may not reflect the actual item.
Price: $453.37
+ Free Shipping
Quantity:
More to Come
Last Updated: May 03, 2025
No Sales Tax except these states
, PO and Wire.

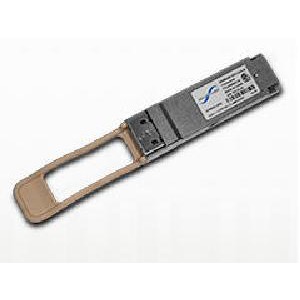

The Solarflare ® SFM40G-SR4 850nm QSFP+ optical transceivers are compatible with all Solarflare 40G Ethernet QSFP+ products, and deliver a complete solution to customers for 40GBASE-SR4 applications.
SFM40G-SR4 850nm QSFP+ optical transceivers are hot-pluggable QSFP+ footprint devices for use in 40-Gigabit Ethernet links over multi-mode fiber. They are compliant to the QSFP+ MSA SFF-8436 and IEEE 802.3ba 40GBASE-SR4 and XLPPI QSFP+ specifications.
The transceiver is a Quad (4-channel) Small Form-factor Pluggable (QSFP+), optical module as defined in the QSFP+ SFF-8436 specifi-cation. This low-power module supports multi-mode fiber (MMF) media with standard MTP (MPO) optical connectors.
Compatibility and Performance
The SFM40G-SR4 QSFP+ optical transceiver uses proven high reliability 850 nm technology, is fully tested, and is compatible with all Solarflare QSFP+ 40GbE server adapters. The SFM40G-SR4 supports up to 100 meter using OM3 multimode fiber and the industry- standard MTP (MPO) optical connector.
Superior Customer Experience
For added convenience, Solarflare's optical transceivers can now be purchased together with server adapters for simultaneous delivery. This optical transceiver product also facilitates those who are ordering a complete server adapter solution in a single transaction.
A Complete Solution
40GBASE-SR4 850nm QSFP+ Optical Transceiver The SFM40G-SR4 QSFP+ transceiver enhances Solarflare's 40GbE QSFP+ server adapter products by ensuring they deliver highly-scalable performance, low-latency, and low-power. Combined with the SFM40G-SR4 transceiver, Solarflare server adapters offer exceptional value for data centers, enterprise networks, high-performance computing (HPC), cloud, big data, grid, and virtualization applications.
Regulatory Compliance
SFM40G-SR4 optical transceiver is designed for EN (IEC) 60825 and US FDA CDRH eye saftey compliance and is certified as a Class 1M laser product. The transceiver is RoHS compliant and lead-free.
SFM40G-SR4 850nm QSFP+ optical transceivers are hot-pluggable QSFP+ footprint devices for use in 40-Gigabit Ethernet links over multi-mode fiber. They are compliant to the QSFP+ MSA SFF-8436 and IEEE 802.3ba 40GBASE-SR4 and XLPPI QSFP+ specifications.
The transceiver is a Quad (4-channel) Small Form-factor Pluggable (QSFP+), optical module as defined in the QSFP+ SFF-8436 specifi-cation. This low-power module supports multi-mode fiber (MMF) media with standard MTP (MPO) optical connectors.
Compatibility and Performance
The SFM40G-SR4 QSFP+ optical transceiver uses proven high reliability 850 nm technology, is fully tested, and is compatible with all Solarflare QSFP+ 40GbE server adapters. The SFM40G-SR4 supports up to 100 meter using OM3 multimode fiber and the industry- standard MTP (MPO) optical connector.
Superior Customer Experience
For added convenience, Solarflare's optical transceivers can now be purchased together with server adapters for simultaneous delivery. This optical transceiver product also facilitates those who are ordering a complete server adapter solution in a single transaction.
A Complete Solution
40GBASE-SR4 850nm QSFP+ Optical Transceiver The SFM40G-SR4 QSFP+ transceiver enhances Solarflare's 40GbE QSFP+ server adapter products by ensuring they deliver highly-scalable performance, low-latency, and low-power. Combined with the SFM40G-SR4 transceiver, Solarflare server adapters offer exceptional value for data centers, enterprise networks, high-performance computing (HPC), cloud, big data, grid, and virtualization applications.
Regulatory Compliance
SFM40G-SR4 optical transceiver is designed for EN (IEC) 60825 and US FDA CDRH eye saftey compliance and is certified as a Class 1M laser product. The transceiver is RoHS compliant and lead-free.
Main Specification
| General Information | |
| Manufacturer | Solarflare Communications, Inc |
| Manufacturer Part Number | SOLR-SFM40G-SR4 |
| Manufacturer Website Address | http://www.solarflare.com |
| Brand Name | Solarflare |
| Product Name | 40GBASE-SR4 850nm QSFP+ Optical Transceiver |
| Packaged Quantity | 1 |
| Product Type | QSFP+ |
| Technical Information | |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO |
| Interfaces/Ports Details | 1 x MPO 40GBase-SR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-SR4 |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Physical Characteristics | |
| Height | 0.5" |
| Width | 0.5" |
| Depth | 2.2" |
| Miscellaneous | |
| Compatibility | MSA Compliant |
