TRIPP LITE
N820-02M-T Tripp Lite 2M 10Gb 50/125 OM3 Fiber Cable Push / Pull Tabs LC/LC
Mfg Part Number: N820-02M-T , Item #: 1750257
Image may not reflect the actual item.
Price: $59.99
+ Free Shipping
Quantity:
In Stock: 149
Last Updated: May 07, 2025
No Sales Tax except these states
, PO and Wire.

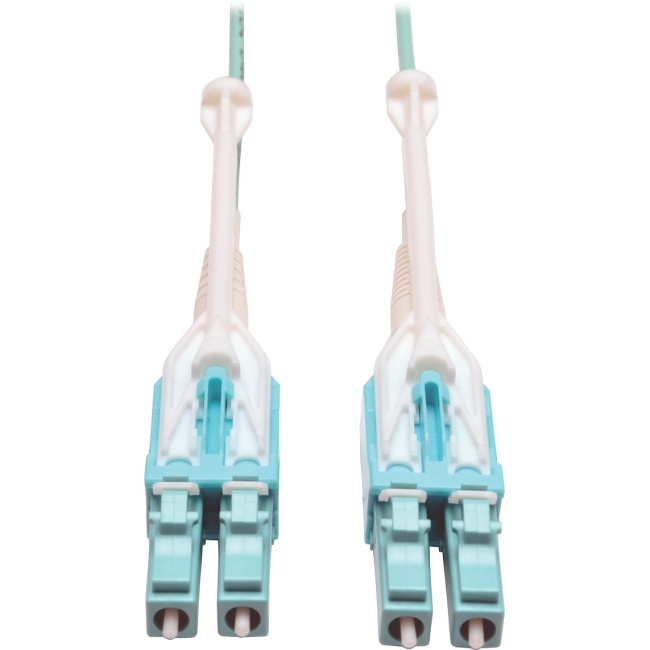

Tripp Lite's N820-02M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility in high density installations; install or remove the cable with one hand without needing additional tools. LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Sturdy plastic housing for long lasting durability
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N82002MT |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | N820-02M-T |
| Product Name | N820-02M-T Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 6.60 ft |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Shipping Height | 9" |
| Shipping Width | 7" |
| Shipping Weight (Approximate) | 0.64 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Mode | - |
| Port Type | - |
| Application | - |
| Connector End A | - |
| Connector End B | - |
| Cable Type | - |
| Fiber Diameter | - |
| Length | - |
| Number of Fibers | - |
| Ferrule Material | - |
