EVGA
220-P2-1200-X1 EVGA SuperNOVA 1200 P2 Power Supply
Mfg Part Number: 220-P2-1200-X1 , Item #: 1726544

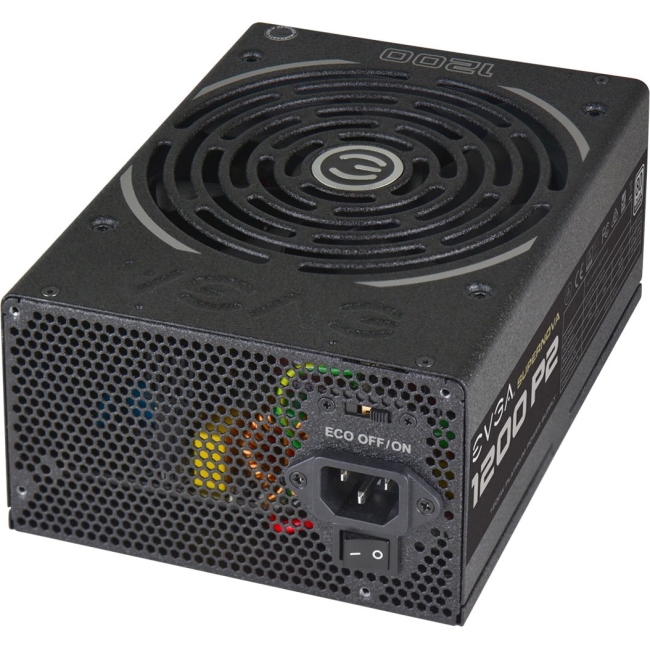

Image may not reflect the actual item.
Price: $429.00
Quantity:
More to Come
Last Updated: May 18, 2025
No Sales Tax except these states
, PO and Wire.
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
Introducing the EVGA SuperNOVA 1200 P2 power supply. This power supply raises the bar with 1200W of continuous power delivery and 92% efficiency. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1200 P2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
Introducing the EVGA SuperNOVA 1200 P2 power supply. This power supply raises the bar with 1200W of continuous power delivery and 92% efficiency. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1200 P2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
Main Specification
| General Information | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220P21200X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Name | SuperNOVA 1200 P2 Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 92% |
| Number of Fans | 1 |
| Protection Type | Over Power |
| Protection Type | Short Circuit |
| Protection Type | Overload |
| Protection Type | Under Voltage |
| Protection Type | Over Current |
| Protection Type | Over Voltage |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage Type | AC |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | -12 V DC @ 500 mA |
| Output Voltage Detail | 5 V DC @ 2.5 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | 12 V DC @ 99.9 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Input Current | 15 A |
| Output Current | 2.50 A |
| Output Current | 20 A |
| Output Current | 99.90 A |
| Output Current | 500 mA |
| Output Power | 1200 W |
| Interfaces/Ports | |
| Plug/Connector | On/Off Switch |
| Receptacles | 6 x 6+2pin PCI-E |
| Receptacles | 12 x Serial ATA |
| Receptacles | 1 x 24-pin ATX Motherboard |
| Receptacles | 5 x 4-pin LP4 Peripheral Device |
| Receptacles | 2 x 4+4pin EPS/ATX12V Motherboard |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 2 x 6-pin PCI-E |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Internal |
| Height | 3.3" |
| Width | 5.9" |
| Depth | 7.9" |
| Weight (Approximate) | 8 lb |
| Miscellaneous | |
| Compatibility | Intel 4th Generation Core Processors (C6/C7 Idle Mode) |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Platinum |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 6 (ErP Lot 6) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 10 Year |
Specifications
- Mfr Part Number: 220-P2-1200-X1
- Features:
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
- Maximum Power: 1200 W
- Input:
- Voltage: 100 ~ 240 VAC
- Current: 15 A
- Frequency Range: 50 ~ 60 Hz
- Type: ATX12V / EPS12V
- Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
- MTBF: 100,000 hours
- Fan: 1x 140mm Double Ball Bearing Fan
- Output: +3.3V @ 20A, +5V @ 20A, +12V @ 99.9A, +5VSB @ 2.5A, -12V @ 0.5A
- Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS12V Power Connectors, 6x 8(6+2)pin PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 12x SATA Connectors, 5x Molex Connectors, 1x Floppy Connector
- Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
- Dimensions (WxLxH): 150.0 x 200.0 x 85.0 mm
- Weight: 8.0 lbs
