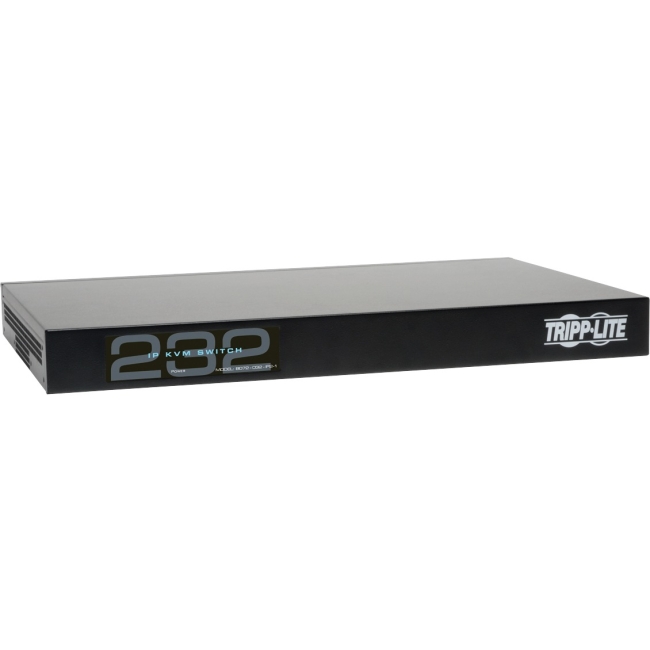

B072-032-IP2-K Tripp Lite 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles

Tripp Lite's B072-032-IP2-K KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP2-K uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (16 included) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP2-K.

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B072-032-IP2-K
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Name	32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles
Product Type	KVM Switchbox
Technical Information
KVM Technology	Digital
Number of Computers Supported	32
Number of Local Users Supported	1
Number of Remote Users Supported	2
Maximum Operating Distance	100 ft
Video
Graphic Mode	Full HD
Maximum Video Resolution	1920 x 1080
Interfaces/Ports
Network (RJ-45)	Yes
USB	Yes
VGA	Yes
Number of Network (RJ-45) Ports	36
Number of USB Ports	2
Number of VGA Ports	1
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	11"
Weight (Approximate)	7.75 lb
Miscellaneous
Package Contents	32-Port, 2+1 User NetCommander Cat5 IP KVM Switch with Sixteen USB Dongles 16 x USB Dongles ( B078-101-USB-1 ) Rackmount Hardware 2 x Power Cords
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year
