SANS DIGITAL
ST-SAN-TR4U+B Sans Digital TowerRAID TR4U+B DAS Array - 4 x HDD Supported - 16 TB Supported HDD Capacity
Mfg Part Number: ST-SAN-TR4U+B , Item #: 1712871
, PO and Wire.

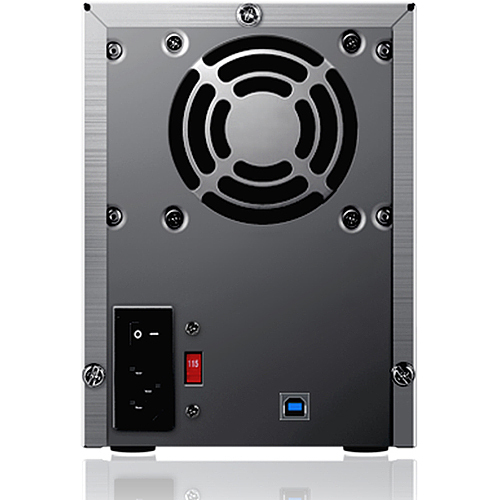

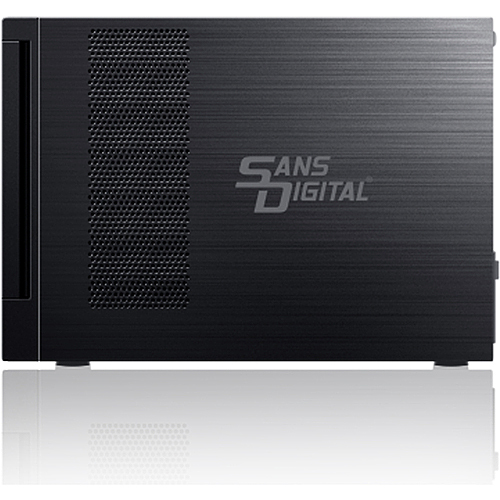

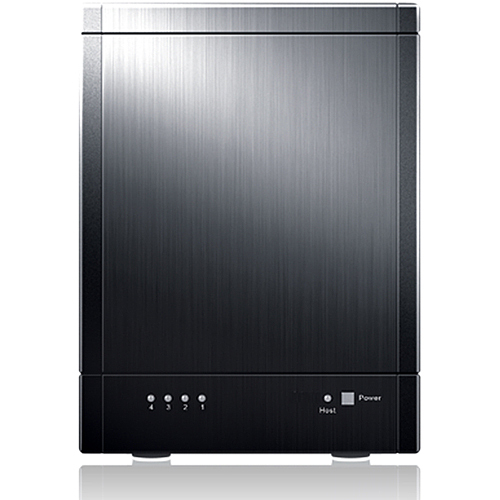

The TowerRAID TR4U+B is an 4-bay storage enclosure for high capacity storage needs. With a built-in ventilating protective screen front panel, both units utilize a cable-less backplane-design to support up to four hard drives. Connecting to the USB 3.0 slot for 5Gb/s performance, 4 hard drives can be accessed at the same time using a single USB 3.0 cable. Backwards compatible with USB 2.0, the TR4U+B provides expandable storage with ease. Hard drives are installed on easy access hard drive trays for simple insertion and removal. With support of the latest 3TB hard drives, the TR4U+B is capable of having a total of 16TB in a single tower. Hard drive cooling is provided by a large 3.15" cooling fan located on the back of the unit. Supported in PC, MAC and Linux, the TR4U+B is an ideal solution for your storage needs.
| General Information | |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | ST-SAN-TR4U+B |
| Manufacturer Website Address | http://www.sansdigital.com |
| Brand Name | Sans Digital |
| Product Line | TowerRAID |
| Product Model | TR4U+B |
| Product Name | TowerRAID TR4U+B - 4 Bay SATA to USB 3.0 JBOD Enclosure (Black) |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Total Hard Drive Capacity Supported | 16 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Controllers | |
| RAID Supported | Yes |
| RAID Levels | JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Host Interface | USB 3.0 |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Maximum Power Supply Wattage | 150 W |
| Physical Characteristics | |
| Height | 7.1" |
| Width | 5.3" |
| Depth | 10" |
| Form Factor | Tower |
| Weight (Approximate) | 5.90 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Platform Supported | Mac |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
