SANS DIGITAL
ST-SAN-TR8U+ Sans Digital TowerRAID TR8U+ DAS Array - 8 x HDD Supported - 32 TB Supported HDD Capacity
Mfg Part Number: ST-SAN-TR8U+ , Item #: 1712819
, PO and Wire.

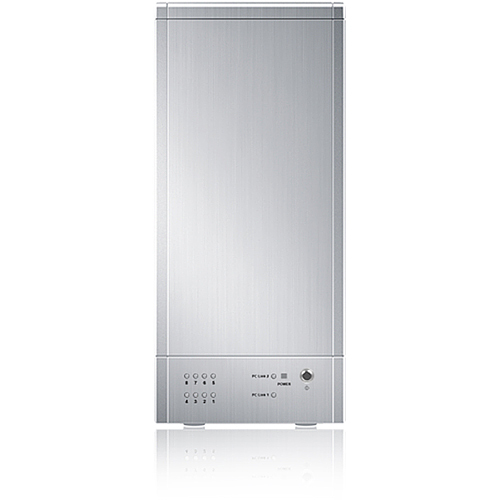

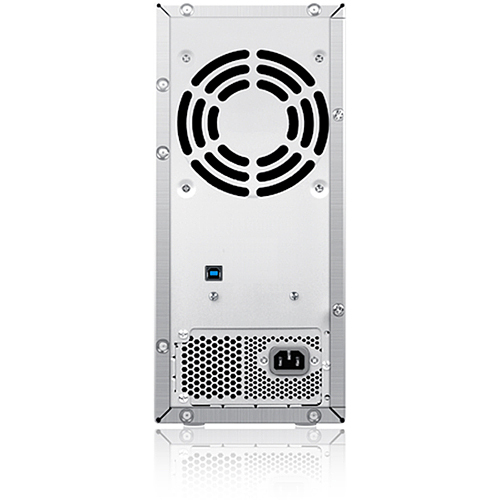

The TowerRAID TR8U+ is an 8-bay storage enclosure for high capacity storage needs. With a built-in ventilating protective screen front panel, both units utilize a cable-less backplane-design to support up to eight hard drives. Connecting to the USB 3.0 slot for 5Gb/s performance, 8 hard drives can be accessed at the same time using a single USB 3.0 cable. Backwards compatible with USB 2.0, the TR8U+ provides expandable storage with ease. Hard drives are installed on easy access hard drive trays for simple insertion and removal. With support of the latest 3TB hard drives, the TR8U+ is capable of having a total of 24TB in a single tower. Hard drive cooling is provided by a large 4.7" cooling fan located on the back of the unit. Supported in PC, MAC and Linux, the TR8U+ is an ideal solution for your storage needs.
| General Information | |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | ST-SAN-TR8U+ |
| Manufacturer Website Address | http://www.sansdigital.com |
| Brand Name | Sans Digital |
| Product Line | TowerRAID |
| Product Model | TR8U+ |
| Product Name | TowerRAID TR8U+ - 8 Bay SATA to USB 3.0 JBOD Enclosure (Silver) |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 8 |
| Total Hard Drive Capacity Supported | 32 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Controllers | |
| RAID Supported | Yes |
| RAID Levels | JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Host Interface | USB 3.0 |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Maximum Power Supply Wattage | 250 W |
| Physical Characteristics | |
| Height | 13.4" |
| Width | 5.9" |
| Depth | 13.4" |
| Form Factor | Tower |
| Weight (Approximate) | 13 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Platform Supported | PC |
| Platform Supported | Mac |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
