SANS DIGITAL
KT-ER104UT+B Sans Digital EliteRAID ER104UT+B DAS Array - 4 x HDD Supported - 12 TB Supported HDD Capacity
Mfg Part Number: KT-ER104UT+B , Item #: 1712799
, PO and Wire.

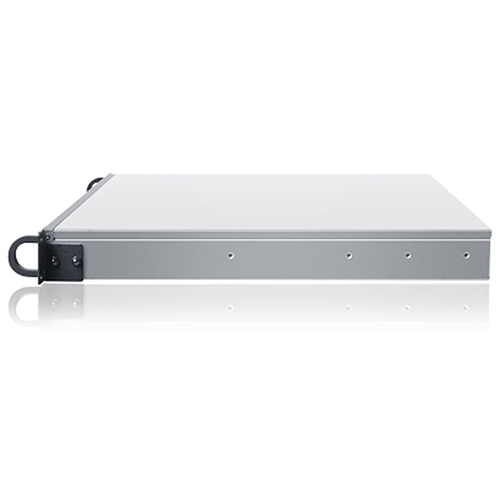

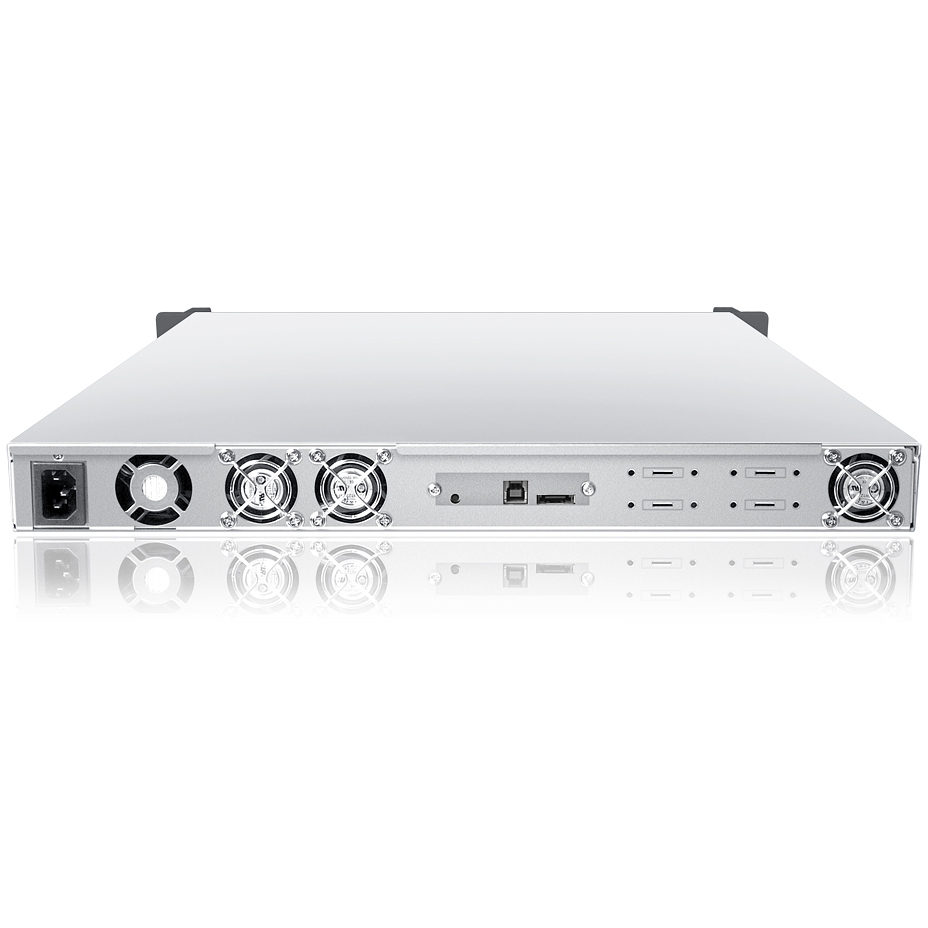

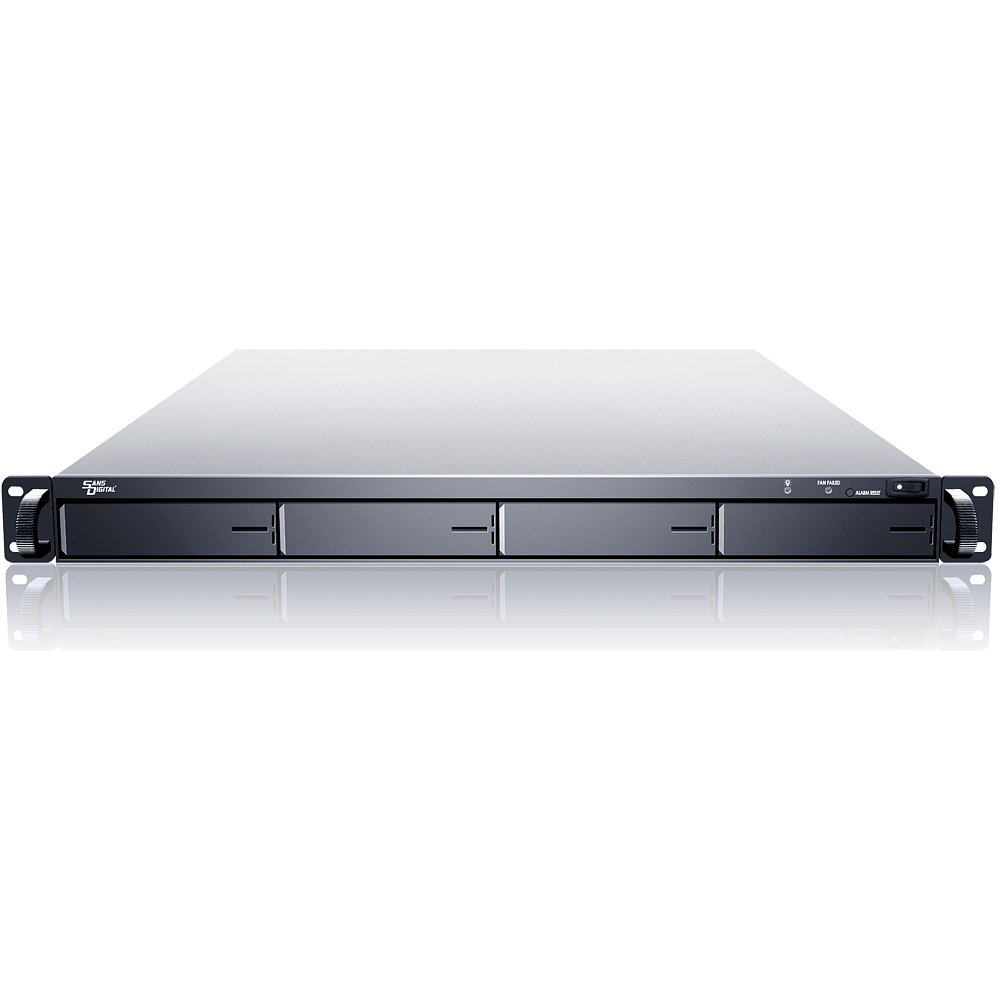

The EliteRAID ER104UT+B is a 4-bay hardware RAID 5 rackmount storage unit that utilizes high performance USB 3.0 and eSATA interfaces to provide over 200MB/s in performance. The included USB 3.0 is backwards compatible with the widely available USB 2.0 port, which is a convenient feature when both USB 3.0 and eSATA connections are unavailable. With built-in RAID 0, 1, 10, 3, 5+hot-spare and JBOD, the ER104UT+B provides hardware RAID redundancy protection against hard drive failures. A brand new RAID mode, CLONE or N-Way Mirror, is also introduced to replicate the saved data throughout each of the installed hard drives. The RAID engine is embedded within the enclosure and performs all RAID parity calculations to reduce CPU utilization from the host computer, RAID controller cards are no longer necessary.
| General Information | |
| Manufacturer | Sans Digital |
| Manufacturer Part Number | KT-ER104UT+B |
| Manufacturer Website Address | http://www.sansdigital.com |
| Brand Name | Sans Digital |
| Product Line | EliteRAID |
| Product Model | ER104UT+B |
| Product Name | EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Total Hard Drive Capacity Supported | 12 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Controllers | |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 3, 5, 10, Clone Mode (N-Way Mirror), JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Host Interface | USB 3.0 |
| Host Interface | eSATA |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Maximum Power Supply Wattage | 150 W |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 19" |
| Depth | 15" |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Weight (Approximate) | 18 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Platform Supported | Mac |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
