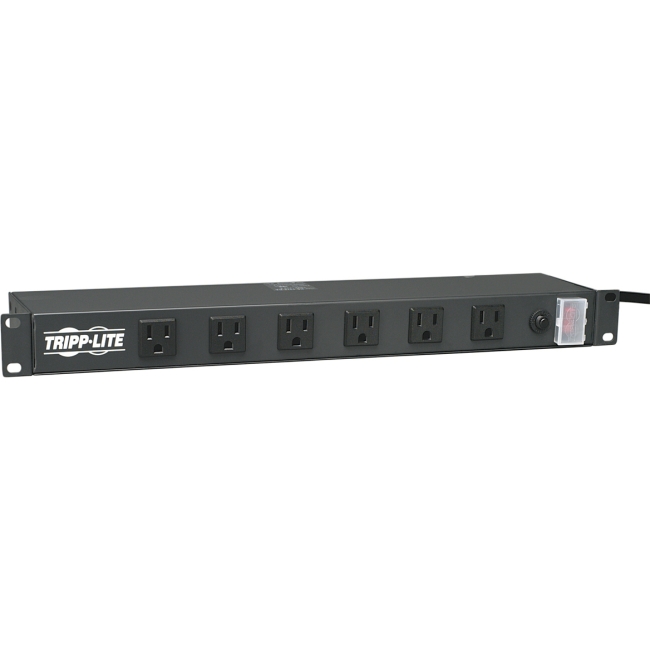

RS1215-RA Tripp Lite Power Strip 120V AC

Power strip offers 15A-capacity, AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rack-mount, wall-mount and under-counter installation. Power strip uses only one rack space when installed in any 19" rack meeting EIA standards. Unfiltered electrical passthrough makes this power strip perfect for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. 12 NEMA5-15R outlets are placed at a right angle with the ground pin at bottom. 15' AC power cord makes it easy to connect to faraway outlets. Lighted power switch has a cover that prevents risk of accidental shutoff.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	RS-1215-RA
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Name	Power Strip 120V AC
Packaged Quantity	1 Each
Product Type	Power Strip
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacles	12 x NEMA 5-15R
Cord Length	15 ft
Circuit Breaker	Yes
Power Description
Input Voltage	120 V AC
Maximum Output Voltage	120 V AC
Maximum Input Current	15 A
Maximum Frequency	60 Hz
Power Switch	Yes
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Height	1.8"
Width	17.5"
Depth	4.5"
Weight (Approximate)	4.60 lb
Miscellaneous
Package Contents	Power Strip 120V AC Instruction manual with warranty information
Additional Information	Form factors supported: Rackmount, wall-mount and undercounter installation Switches: Red illuminated 2 positon switch controls power to all outlets Locking switch cover: Transparent locking switch cover prevents accidental shutoff TVSS grounding: Back panel nut and bolt grounding lug
Certifications & Standards	UL1363 cUL
Country of Origin	China
Warranty
Limited Warranty	Lifetime
Additional Warranty Information	Lifetime limited warranty

General Information
Product	-
Number of Outlets	12
Surge Energy Rating	-
Data Line Protection	Not Protected
Cord Length	15 ft
Mounting Style	Rack
Output Voltage	120 V
Current Rating	15 A

Tripp Lite's RS-1215-RA power strip offers 15 amp capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 NEMA5-15R outlets (6 front / 6 rear) placed at a right angle (with ground pin at bottom), 15 ft AC power cord and lighted switch with cover prevents risk of accidental turn-off.

Features:
Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
12 NEMA5-15R output receptacles (6 front / 6 rear)
15 foot AC cord NEMA5-15P plug connection
Right-angle outlet orientation with ground pin at the bottom
Lighted power switch confirms power on/off status
Snap-in switch guard prevents accidental turn off
15 amp electrical capacity with circuit breaker
120VAC, 50/60Hz electrical compatibility

Typical applications:
Offers multiple outlet power distribution for multiple loads in 19 inch rackmount, wallmount and under- counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.

Package Includes:
RS-1215-RA Power Strip
Warranty information
Instruction manual
