Tripp Lite PowerVerter PV1000HF DC-to-AC Power Inverter
Mfg Part Number: PV1000HF , Item #: 170302
Image may not reflect the actual item.
Price: $289.98
Quantity:
In Stock: 240
Last Updated: Jul 08, 2025
No Sales Tax except these states
, PO and Wire.

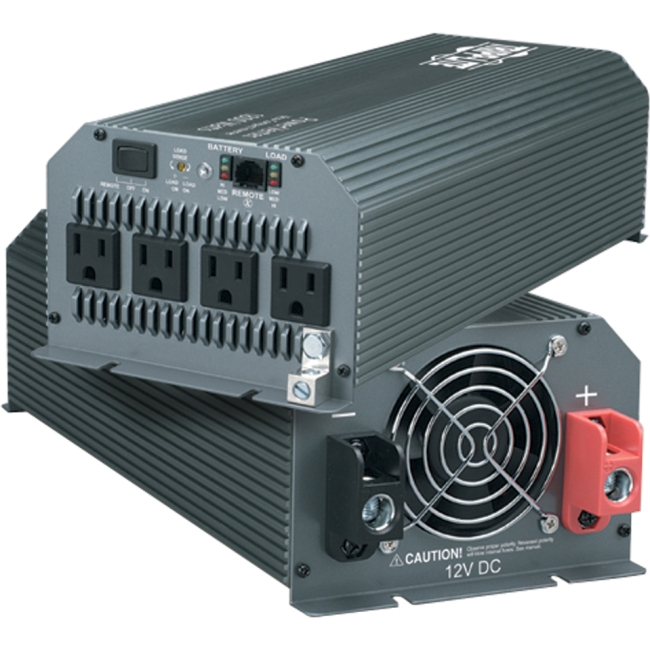

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PV1000HF |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | PowerVerter |
| Product Model | PV1000HF |
| Product Name | PowerVerter PV1000HF DC-to-AC Power Inverter |
| Product Type | Power Inverter |
| Technical Information | |
| Receptacles | 4 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 12 V DC |
| Output Voltage | 120 V AC |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 2000 W |
| Continuous Power Load | 1000 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Height | 4.3" |
| Width | 6" |
| Depth | 13" |
| Weight (Approximate) | 6 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Input Voltage-nominal | 12 V |
| Output Voltage | 120 V |
| Output Power | 1000 W |
| Voltage Regulation Accuracy | 10 % |
| Number of Outlets | 4 Outlet |
| Mounting Type | Chassis |
Ultra PowerVerters pack reliable inverter technology into a durable, lightweight extruded aluminum housing small enough to take anywhere. The result is an AC power source you can move easily from vehicle to vehicle, wherever you need to use your equipment.
Ultra PowerVerters are simple to connect and integrate a host of sophisticated features to ensure that connected electronic equipment receives a constant, safe AC current. The frequency-controlled, computer-grade power they provide is less likely to damage sensitive electronics than the unpredictable output of a generator, making them ideal for use with mobile uplinks and other computer equipment in a vehicle.
Ultra PowerVerters are simple to connect and integrate a host of sophisticated features to ensure that connected electronic equipment receives a constant, safe AC current. The frequency-controlled, computer-grade power they provide is less likely to damage sensitive electronics than the unpredictable output of a generator, making them ideal for use with mobile uplinks and other computer equipment in a vehicle.
