ICC ICMPP246AU PATCH PANEL,CAT 6A, 24-P, 1RMS

Mfg Part Number:  ICMPP246AU
Image may not reflect the actual item.
Price: $198.00 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 03, 2025
No Sales Tax except these states
, PO and Wire.

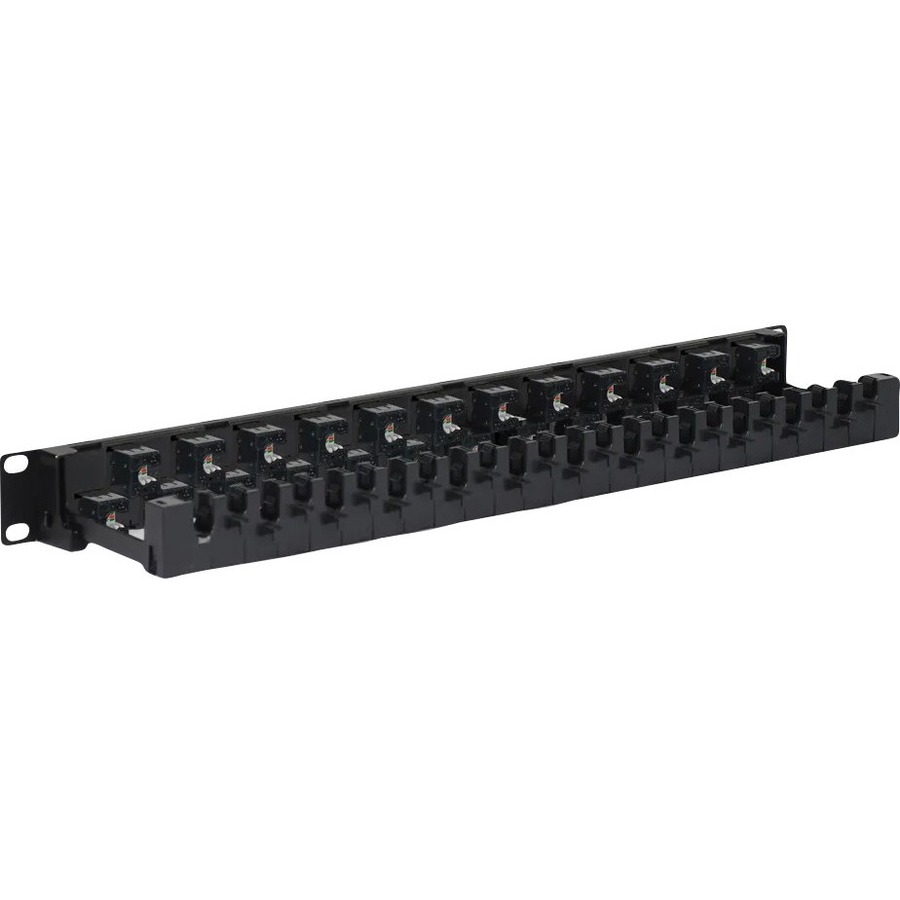

ICC's Category 6A 24-Port 10G UTP Patch Panels are kitted with CAT6A components that have rated high density (HD) modular connectors. Each HD modular connector consists of 50 micro inches of gold plated contacts for superior performance and utilizes a shielded wire cap to secure the rear 110-IDC punch down terminations. This patch panel exceeds ANSI/TIA-568-C.2 performance standards. The UTP CAT6A 10G patch panel includes 24 pieces of UTP high density (HD) modular connectors, a rear cable management bar, and accessories that mount easily to racks or other 19" wide equipment. Assembly Required.

Features

  • Accommodates CAT6A UTP and FTP modular connectors.
  • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
  • Designed to minimize the alien crosstalk for 10G applications.

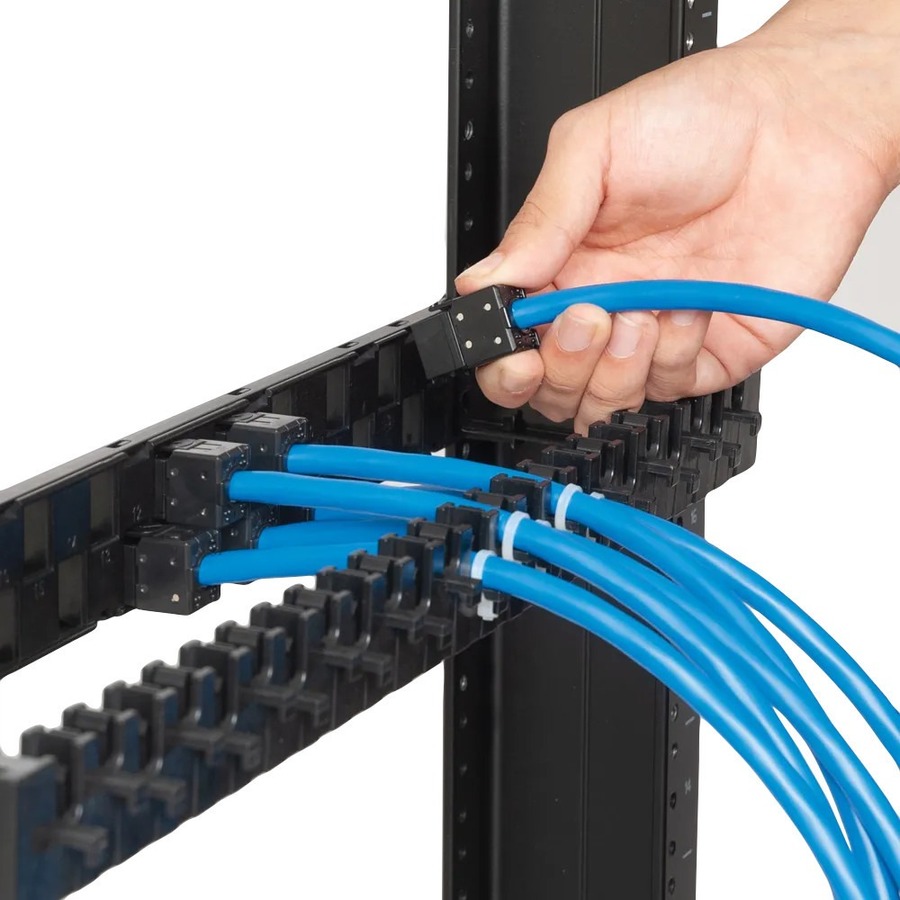

  • Includes rear cable management to facilitate proper bend radius of the cable.
  • Compatible with standard 19" distribution racks.
Main Specification
General Information
Manufacturer ICC
Manufacturer Part Number ICMPP246AU
Manufacturer Website Address http://www.icc.com
Brand Name ICC
Product Model ICMPP246AU
Product Name CAT6A UTP Patch Panel with 24 Ports and 1 RMS
Product Type Network Patch Panel
Interfaces/Ports
Total Number of Ports 24
Number of Network (RJ-45) Ports 24
Physical Characteristics
Product Color Black Powder Coat
Product Material Gold
Product Material Cold Rolled Steel
Product Material Plastic
Product Material Phosphor Bronze
Form Factor Rack-mountable
Compatible Rack Unit 1U
Compatible Rack Width 19"
Miscellaneous
Package Contents
  • CAT6A UTP Patch Panel with 24 Ports and 1 RMS
  • 1 x Cable management bar
  • 24 x Cable ties
  • 4 x 12-24 x 5/8 rack screws
Additional Information

Environmental conditions:

Temperature range storage: -40° to 70°C
Operational: -10° to 60°C relative humidity (operational):
Maximum noncondensing 93%

Electrical:

Electrical Insulation resistance: 500 mohms min @ 100v dc
Dielectric Withstanding Voltage: 1000v dc or ac peak contact @ 60hz for 1 minute
Spring Wire Contact Resistance: 20 mohms max.
IDC Contact Resistance: 2.5 mohms max.

Mechanical:

Retention: 50n (11 lbs sq) or 60s±5s
Insertion/extractor: 750 cycles min.

CAT 6A Module:

Housing: High-impact, flame-retardant plastic, UL 94V-0
IDC Housing: High-impact, flame-retardant plastic, UL 94V-0
IDC Contact: Phosphor Bronze Alloy with 100, 1005 SN Alloy
Wire Gauge: 23~24 AWG solid wire
Spring Wire: Phosphor Bronze Alloy plated with 50µ gold over 70~100µ nickel

Shielded Wire Cap:

Material: High-impact, flame-retardant plastic, UL 94V-0
Certifications & Standards
  • ANSI/TIA-568-C.2
  • T568A/B
  • UL 94V-0
Country of Origin United States
Warranty
Limited Warranty 3 Year
product information

Tools

ICC (ICACSPDTEH)

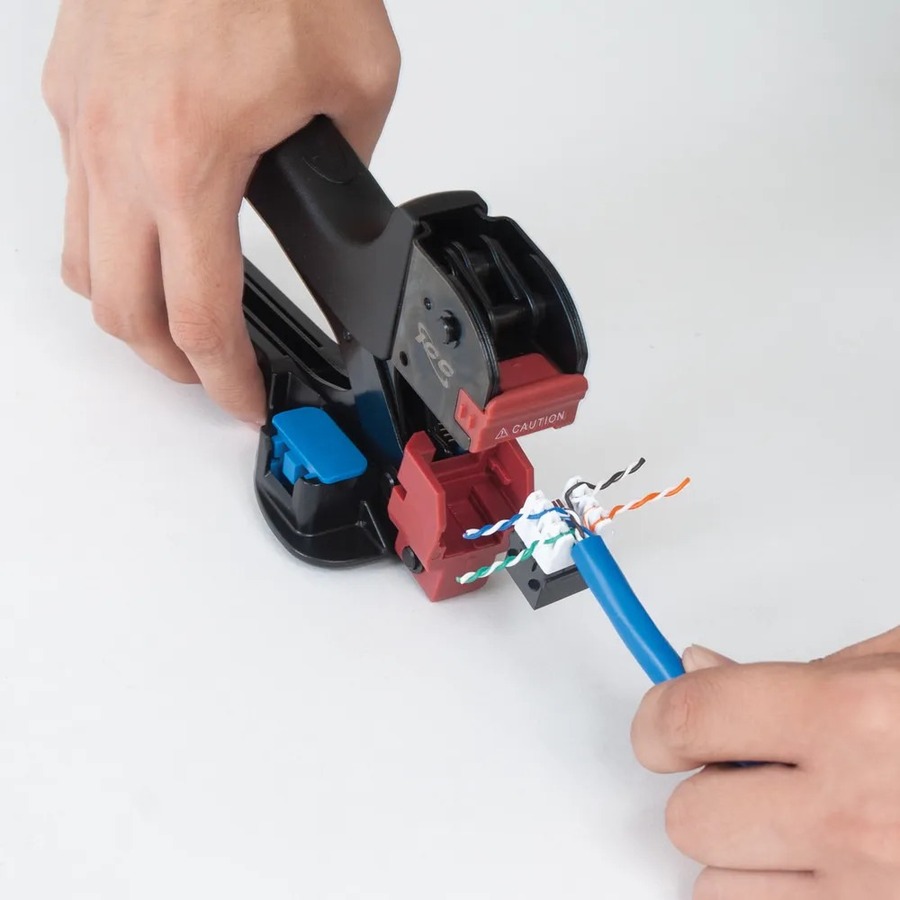

ICC JackEasy Termination Tool
