AddOn
ADD-ASC-ASC-5M9SMF AddOn 5m Single-Mode fiber (SMF) Duplex APC/SC-APC/SC OS1 Patch Cable
Mfg Part Number: ADD-ASC-ASC-5M9SMF , Item #: 1667455
Image may not reflect the actual item.
Price: $20.55
Quantity:
In Stock: 40
Last Updated: Jun 16, 2025
No Sales Tax except these states
, PO and Wire.

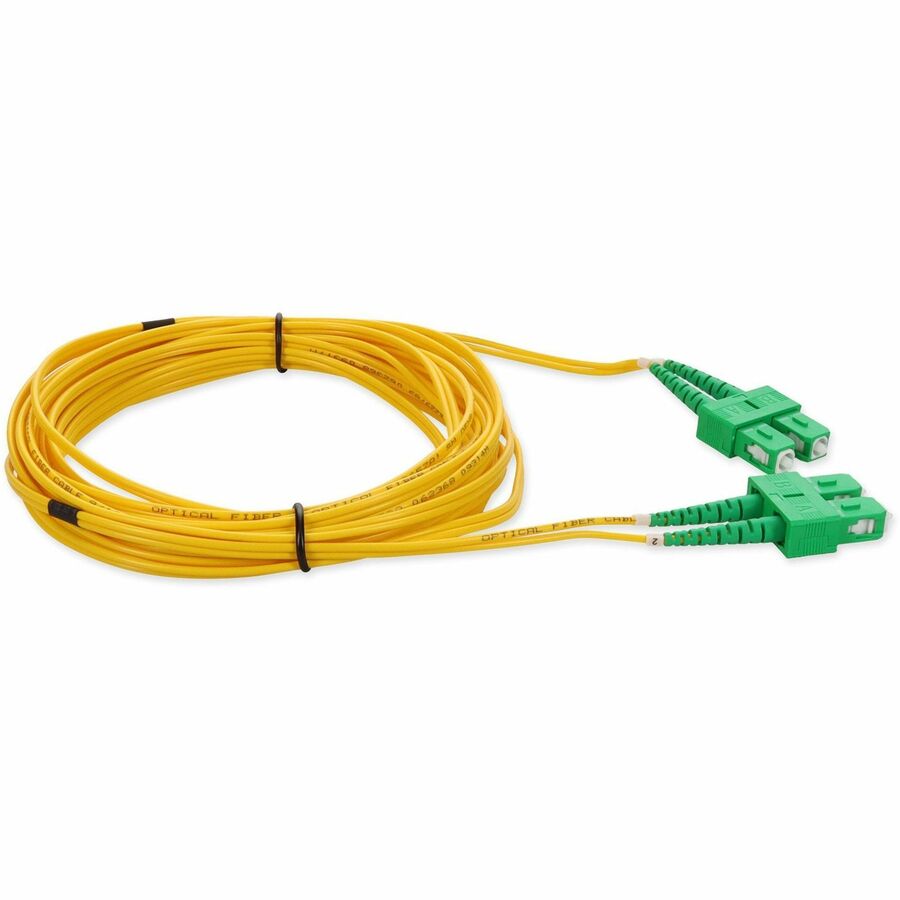

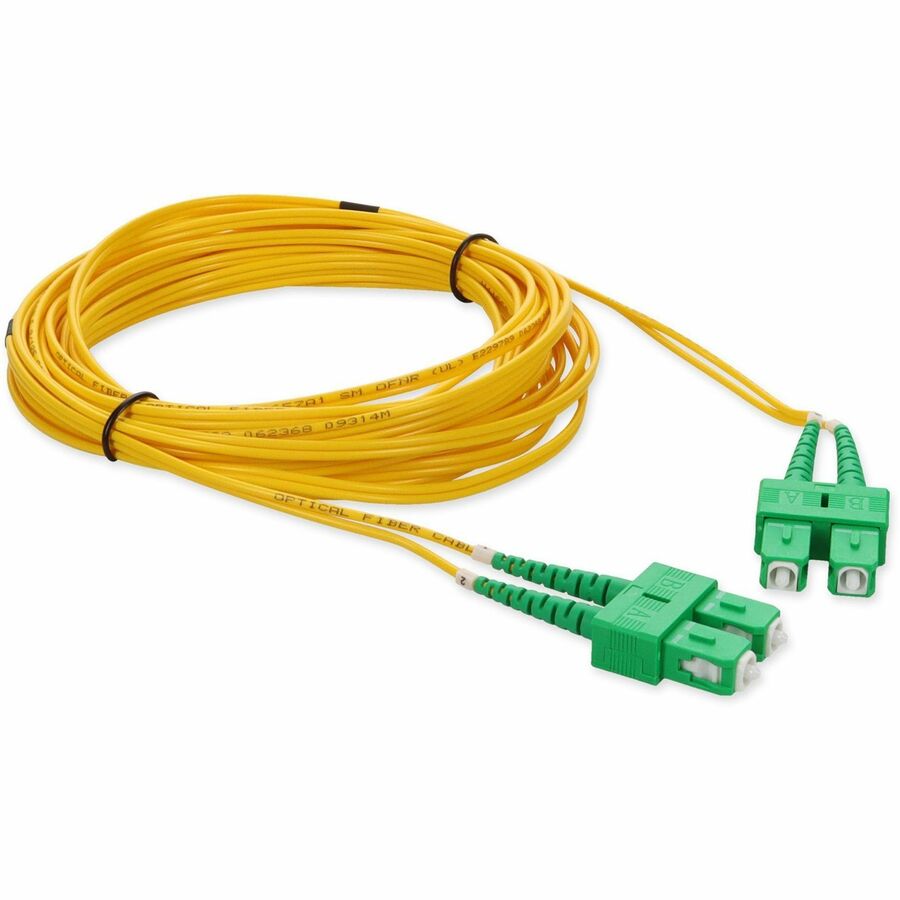

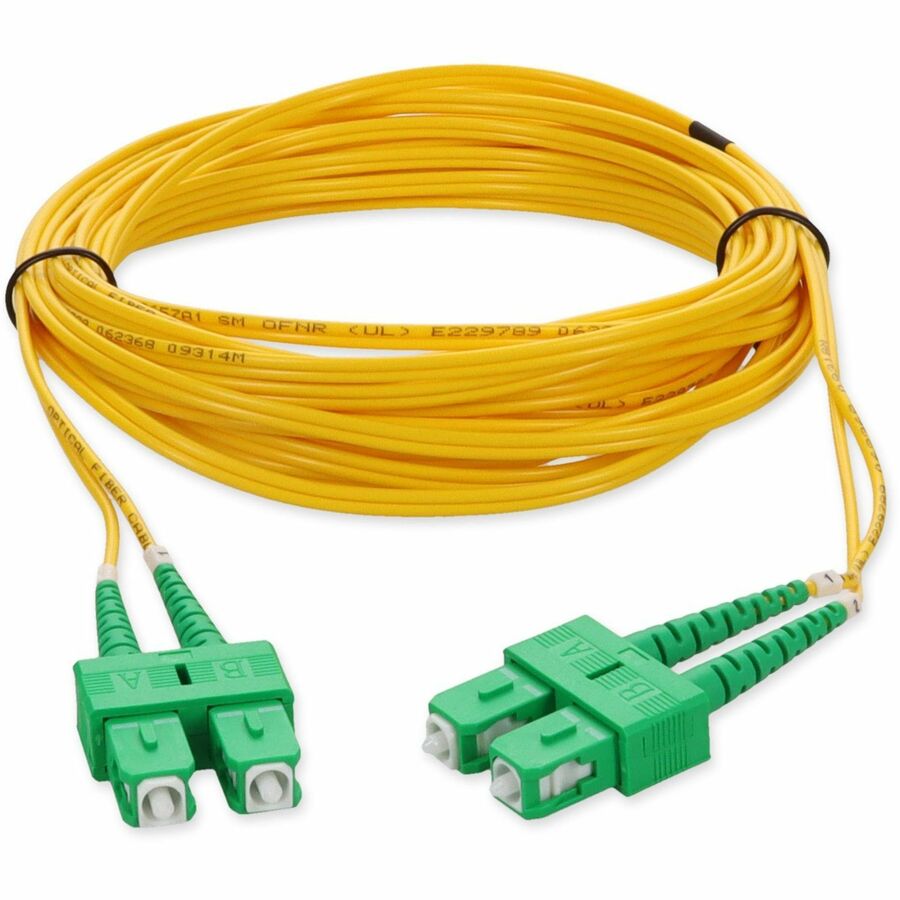

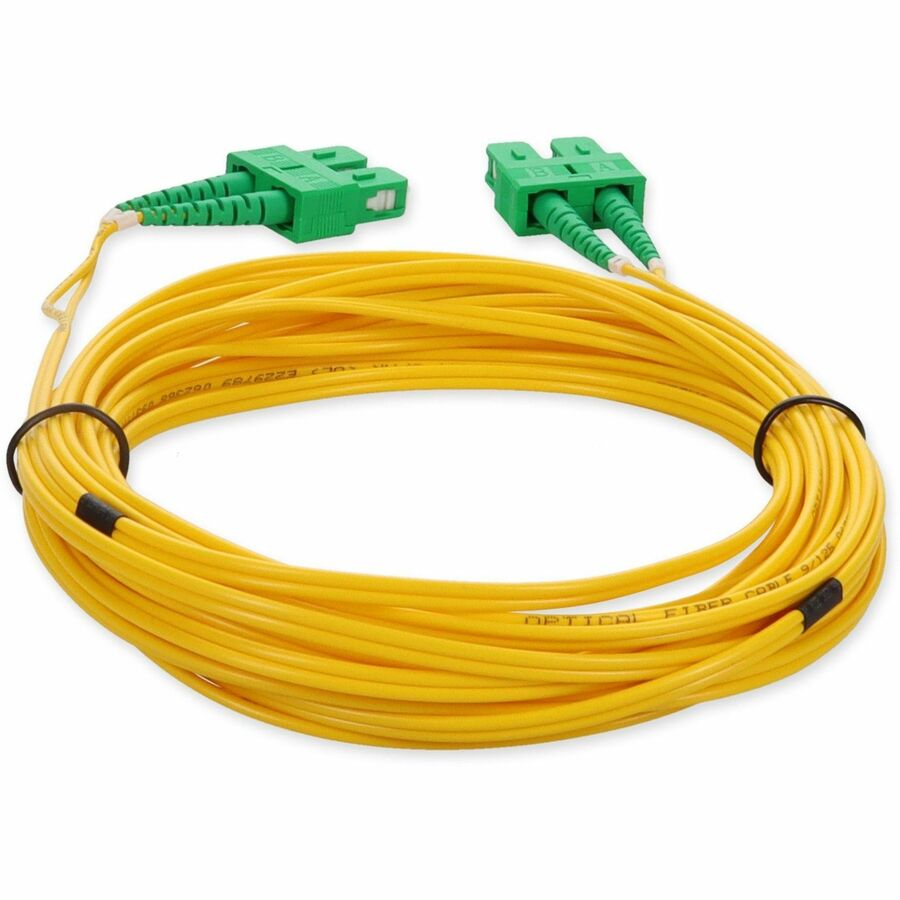

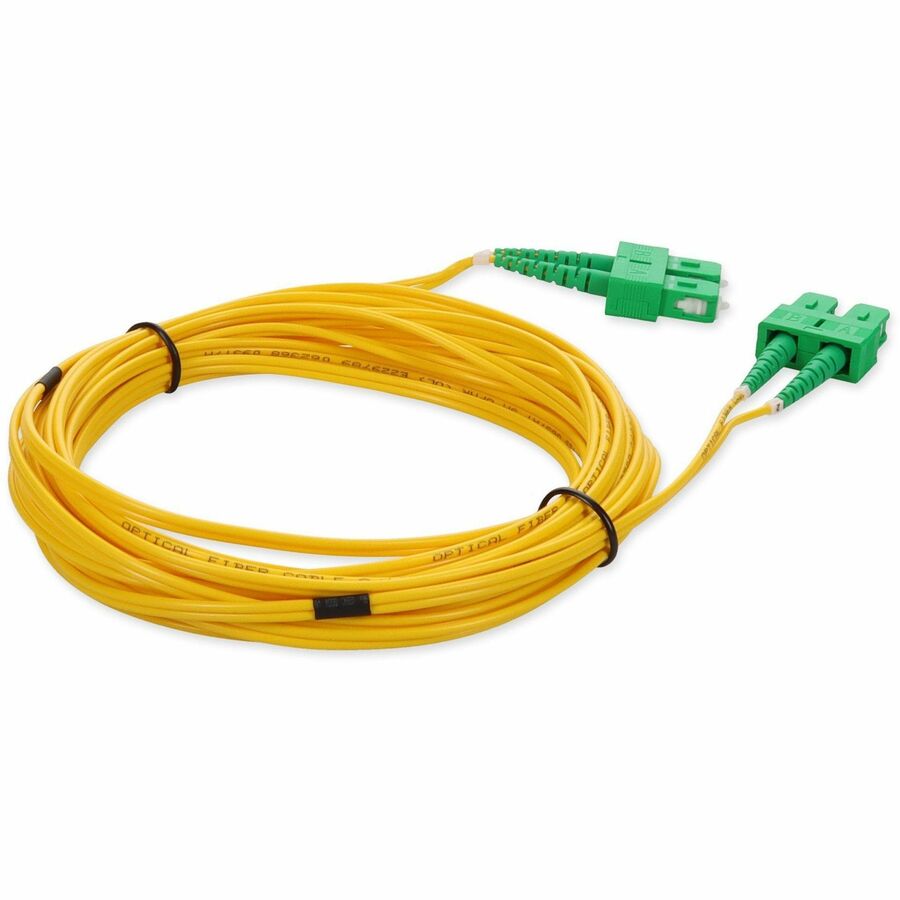

This is a 5m angled SC (male) to angled SC (male) yellow duplex riser-rated fiber patch cable. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This optical fiber, nonconductive, riser (OFNR) cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.
Main Specification
| General Information | |
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-ASC-ASC-5M9SMF |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Brand Name | AddOn |
| Product Name | 5m Single-Mode fiber (SMF) Duplex APC/SC-APC/SC OS1 Patch Cable |
| Packaged Quantity | 1.0 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Cable Configuration | Straight-through |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Category | OS2 |
| Cable Length | 16.40 ft |
| Connector Type on First End | SC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Shielding | No |
| Jacket Type | OFNR |
| Jacket Type | LSZH |
| Jacket Type | Riser |
| Device Supported | Network Device |
| Features | Angled Physical Contact (APC) |
| Features | Stranded |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Jacket Material | Low Smoke Zero Halogen |
| Height | 13" |
| Width | 11" |
| Weight (Approximate) | 0.40 lb |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
