BLACK BOX

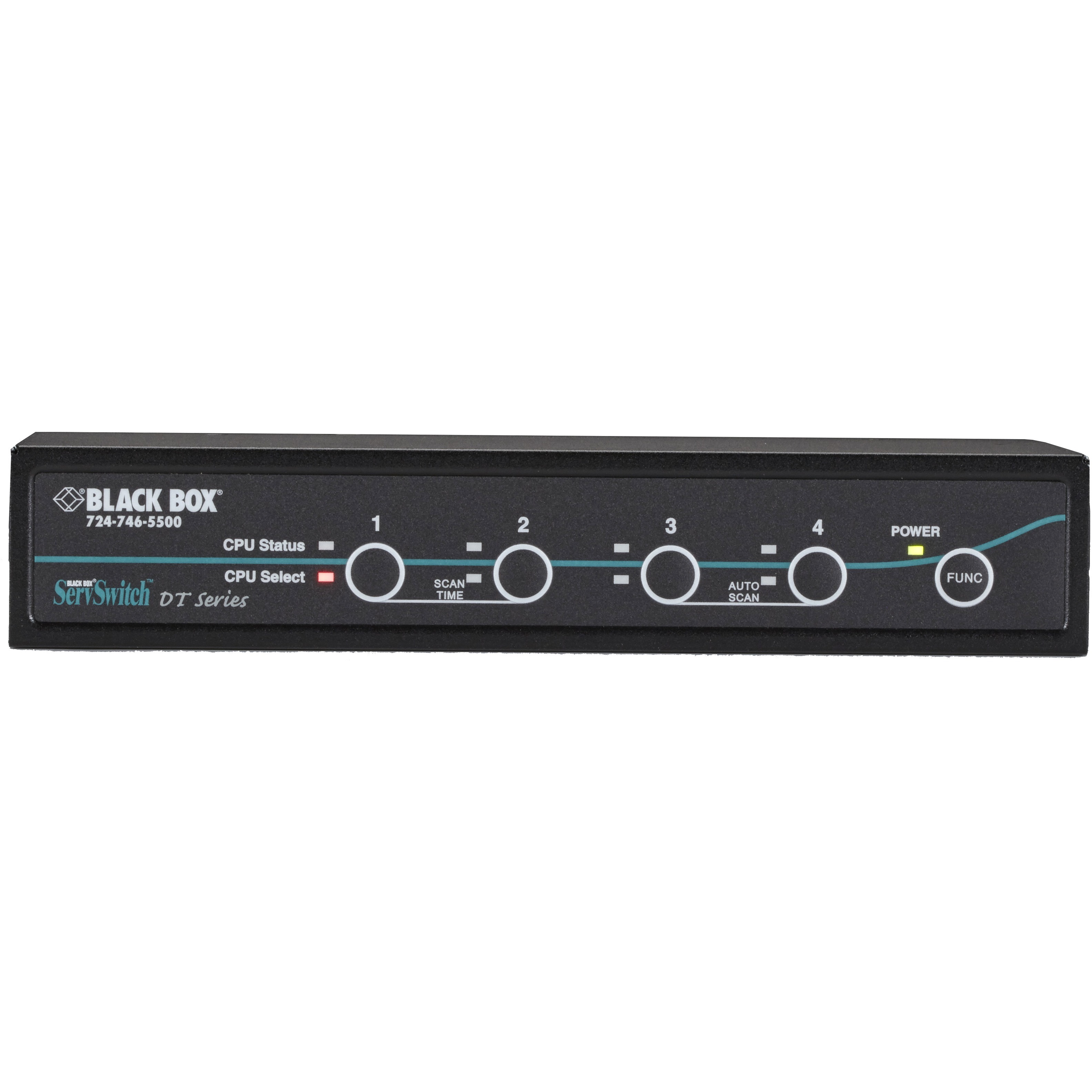

BLACK BOX KV9614A 4PORT SERVSWITC DT DVI W/ EMULATED USB KEYBOARD/MOUSE
Mfg Part Number: KV9614A , Item #: 1665171
, PO and Wire.
Description
ServSwitch DT DVI 4-Port with Emulated USB Keyboard/Mouse
Quick Facts
- Switch up to four PCs.
- Supports resolutions up to 1920 x 1200 at 60 Hz.
- DDC EDID support via emulation.
- Keyboard/mouse emulation makes switching faster and more reliable.
- Hotkey switching.
Further Details
This four-port USB KVM switch enables you to access four CPUs with high-resolution DVI video connectors from a single workstation. Set up desktop KVM switching with high-quality DVI-D video.
The ServSwitch DT DVI 4-Port with Emulated USB Keyboard/Mouse supports full DVI at resolutions up to 1920 x 1200 at 60 Hz. Plus, you can fine tune the signals, depending on signal strength.
For easy hotkey switching, choose the ServSwitch DT DVI, 4-Port with Emulated USB Keyboard/Mouse. Emulation means unselected computers continue to see the identities of the keyboard and mouse, which means no enumeration is necessary when their link becomes active once again. This not only helps to make reconnecting faster, it also increases switching reliability. This is important because USB links are at their most vulnerable during the switching process.
What's more, the switch supports stereo audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV9614A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | ServerSwitch |
| Product Name | ServSwitch DT DVI 4-Port with Emulated USB Keyboard/Mouse |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of USB Ports | 8 |
| Number of DVI Ports | 5 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.7" |
| Width | 8.7" |
| Depth | 5.1" |
| Weight (Approximate) | 2.20 lb |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Mac |
| Platform Supported | PC |
| Platform Supported | Linux |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
