BLACK BOX

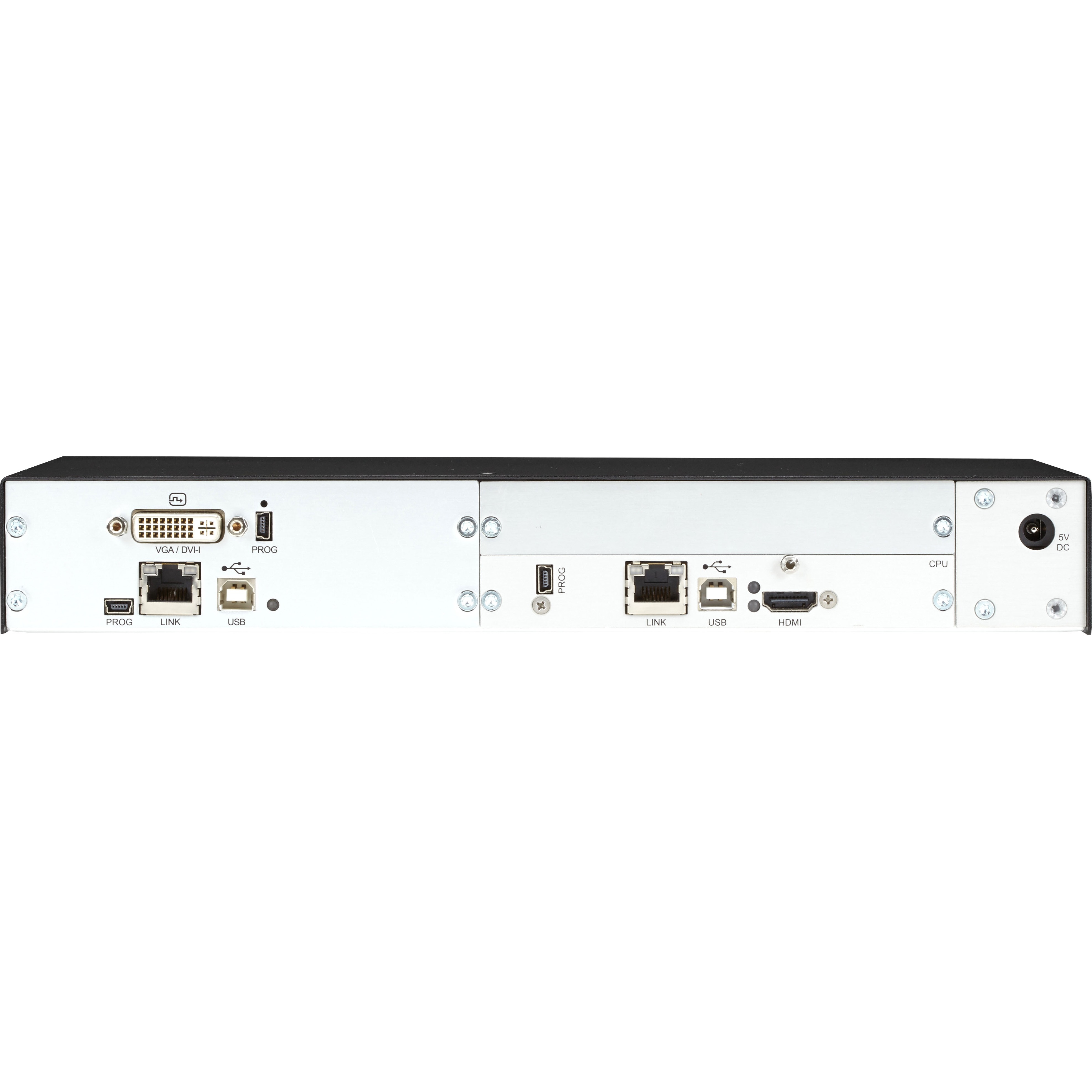

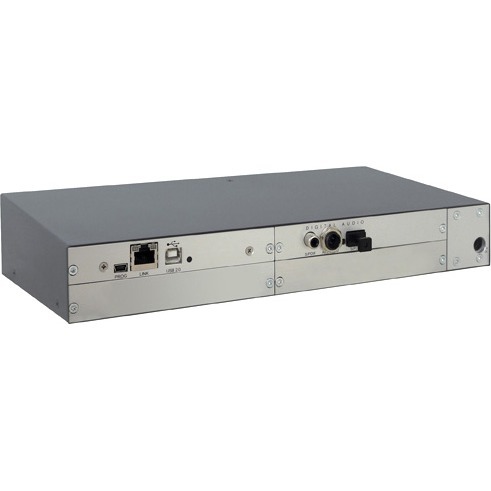

BLACK BOX ACXMODH4-R2 DKM MATRIX SWITCH MODULAR HOUSING 4SLOT CHASSIS W/PWR SUPPLY
Mfg Part Number: ACXMODH4-R2 , Item #: 1664532
Image may not reflect the actual item.
Price: $493.84
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 07, 2025
No Sales Tax except these states
, PO and Wire.
The DKM FX Extender System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
- Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.
- A redundant power supply option is available in some housings.
- The 2-port chassis will support an external power supply.
- Can be rackmounted by using ACXMODH-RMK and the rackmount ears for the individual chassis (ACXMODHEAR-2).
These new DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACXMODH4-R2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | ServSwitch |
| Product Model | ACXMODH4-R2 |
| Product Name | DKM FX Modular KVM Extender Housing Chassis - Power Supply, 4-Slot |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 11.5" |
| Depth | 5.8" |
| Weight (Approximate) | 14.40 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Germany |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
