BLACK BOX

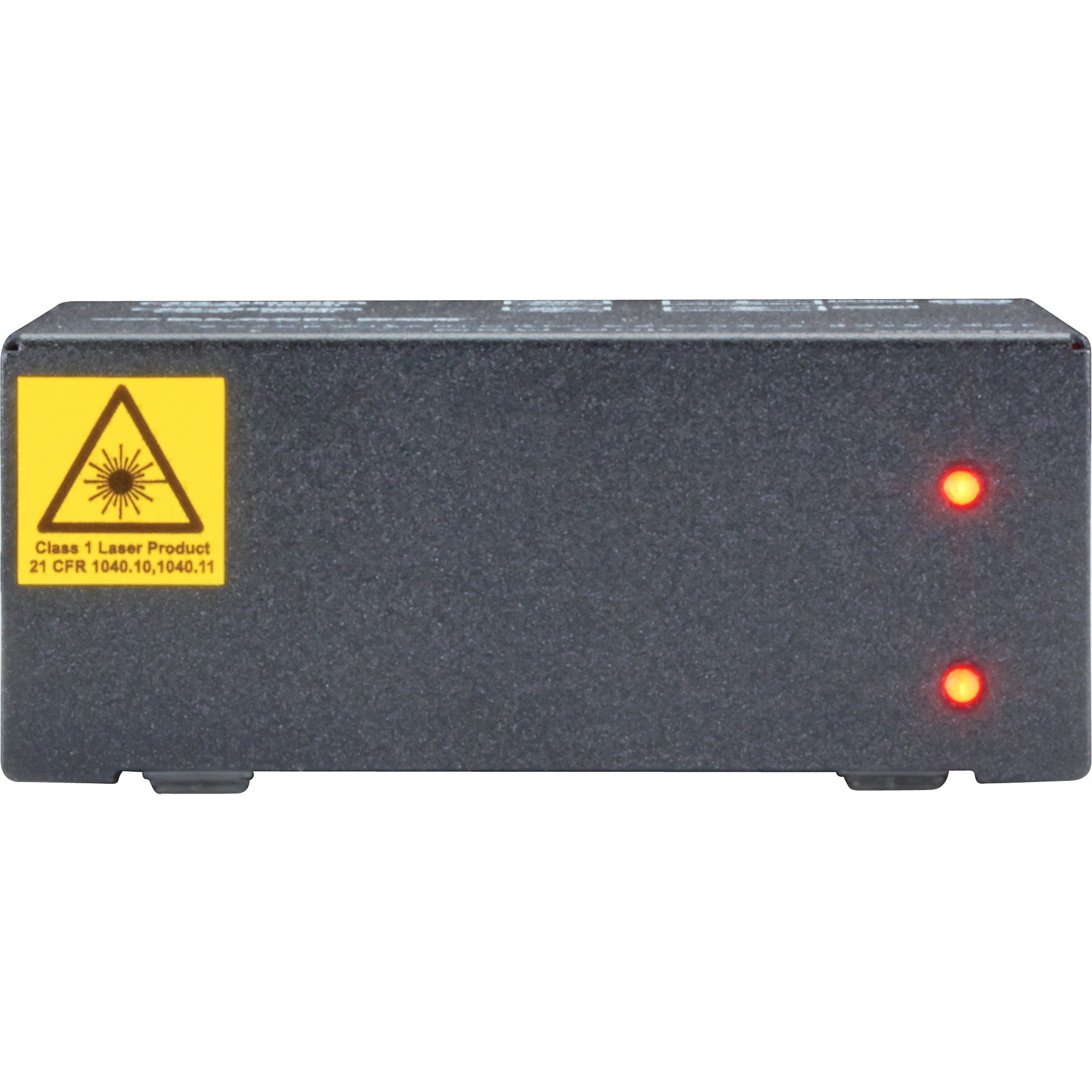

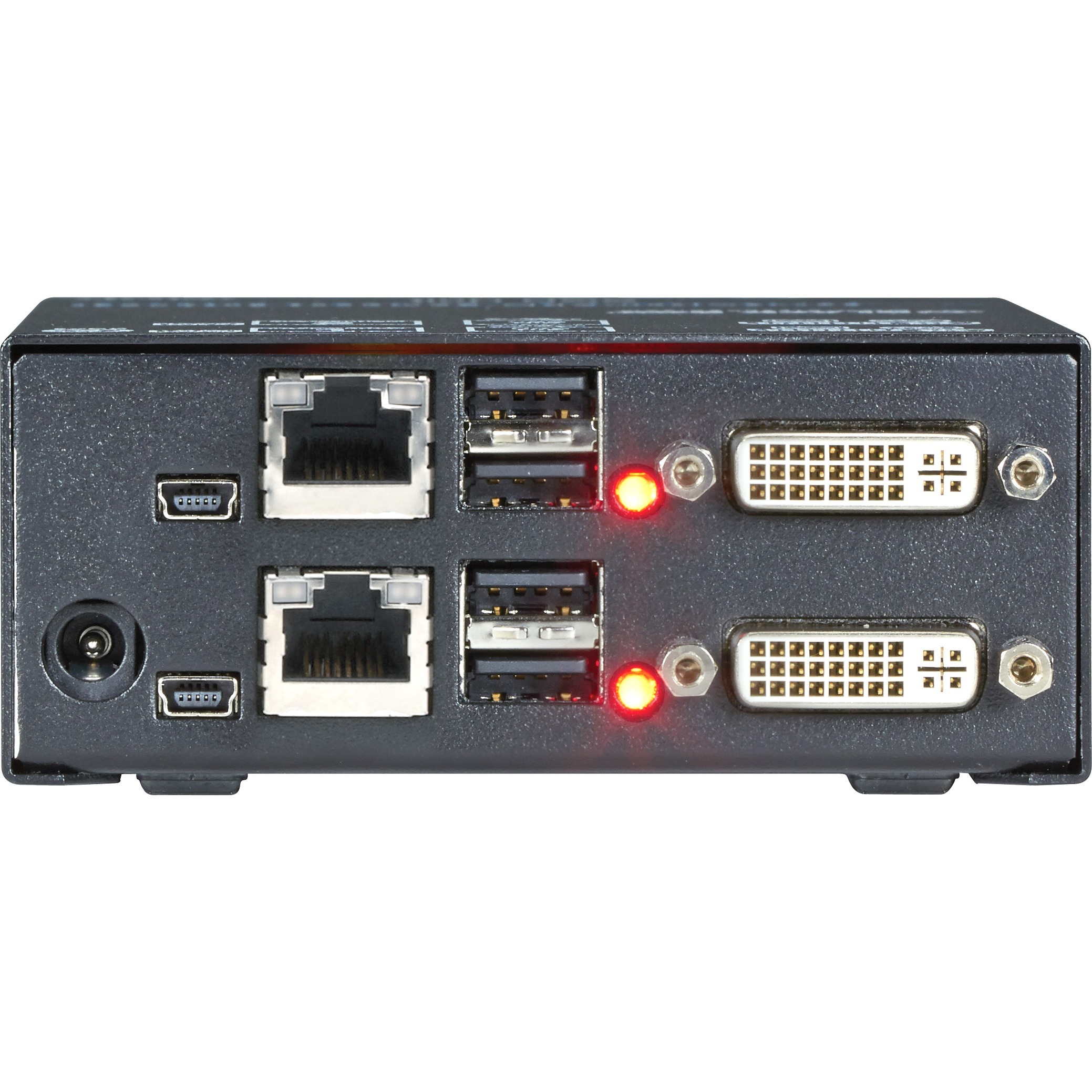

BLACK BOX ACX1R-22-C DKM HD VIDEO AND PERIPHERAL MATRIX SWITCH COMPACT RECEIVER
Mfg Part Number: ACX1R-22-C , Item #: 1664228
Image may not reflect the actual item.
Price: $7,193.60
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 27, 2025
No Sales Tax except these states
, PO and Wire.
Description
Quick Facts
Further Details
DKM HD Video and Peripheral Matrix Switch Compact Receiver, CATx, Dual DVI-D Plus (4) USB HID
Quick Facts
- Connect users and computers to the DKM HD Video and Peripheral Matrix Switch, while extending them simultaneously over long distances.
- Order one transmitter for each computer connected to the DKM.
- Use one receiver for each user within the DKM system.
Further Details
- Maximum distance over CATx is 460 feet (140 m).
- Also available in models compatible with single-mode fiber optic cable.
- Compact housing enables high-density mounting within 19" racks (up to four devices in 1U).
- Chassis range in size from 2, 4, 6, or 21 ports, to 48, 80, 160, and 288 ports.
- The compact extenders also work as standalone, point-to-point KVM extenders.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1R-22-C |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | KVM Console |
| Product Type | KVM Console |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 460 ft |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of USB Ports | 4 |
| Number of DVI Ports | 2 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Receiver Height | 1.60" |
| Receiver Width | 4.10" |
| Receiver Depth | 5.60" |
| Miscellaneous | |
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Germany |
| Warranty | |
| Limited Warranty | 2 Year |
