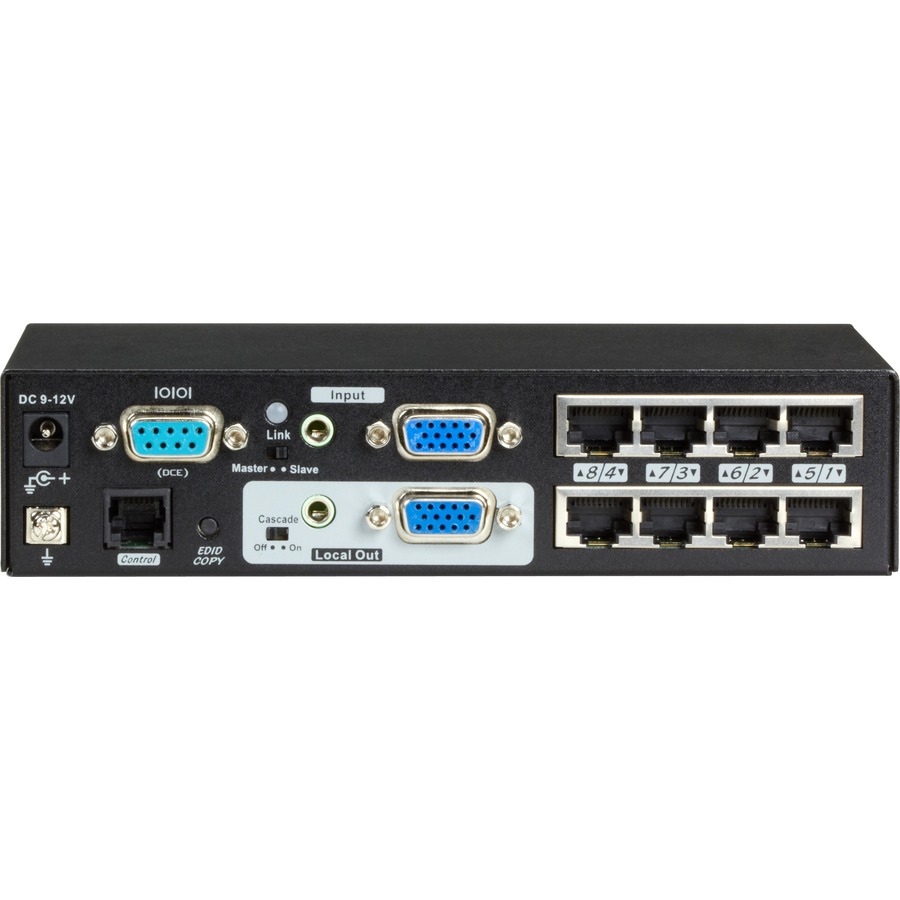

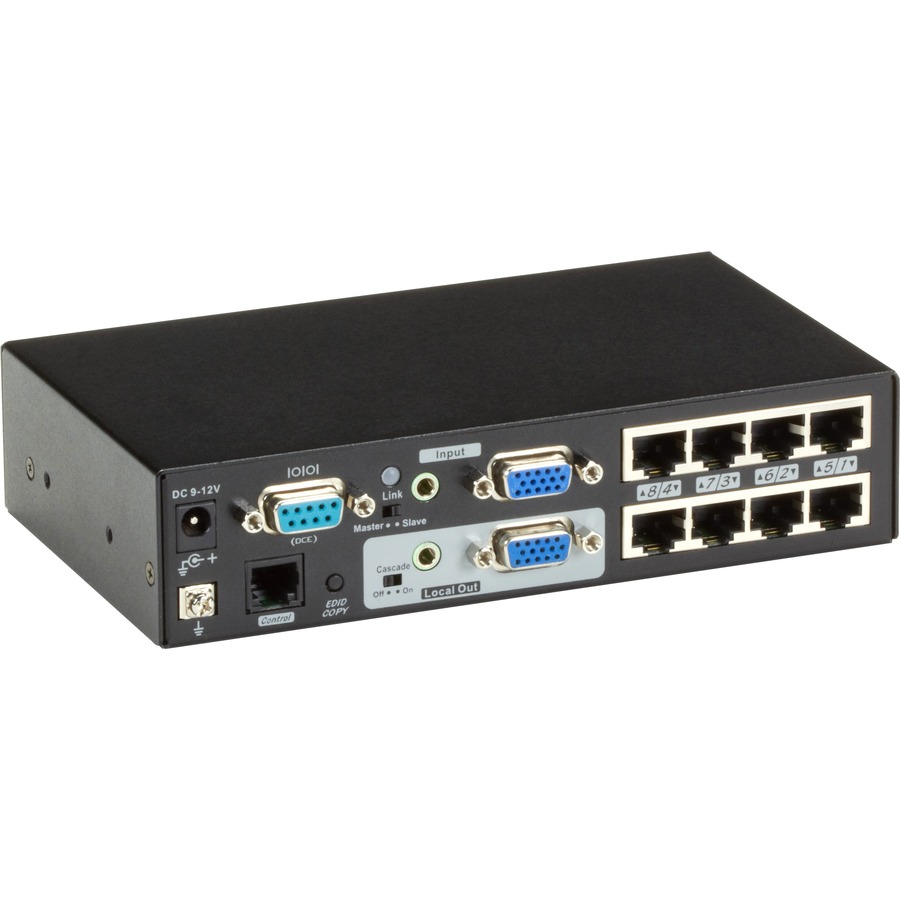

AVX-VGA-TP-TX-8 Black Box MediaCento VX 8-Port Transmitter
Mfg Part Number: AVX-VGA-TP-TX-8 , Item #: 1662203
Image may not reflect the actual item.
Price: $590.00
+ Free Shipping
Quantity:
In Stock: 10
Last Updated: Aug 18, 2025
No Sales Tax except these states
, PO and Wire.
Economically extend multichannel VGA video, stereo audio, and serial signals over CATx-and easily manage groups of ports.
- Use ordinary CATx cable instead of expensive VGA cable to extend high-quality multimedia.
- Broadcasts high-quality VGA plus audio and serial signals over standard UTP cabling.
- Features an icon-based GUI for easily managing groups of extender connections.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVX-VGA-TP-TX-8 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | MediaCento |
| Product Name | MediaCento VX 8-Port Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 984.25 ft |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| Microphone | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 9 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 12 V DC |
| Input Voltage | 110 V AC |
| Physical Characteristics | |
| Transmitter Height | 1.60" |
| Transmitter Width | 6.75" |
| Transmitter Depth | 4" |
| Transmitter Weight (Approximate) | 1.60 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | CE |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
