BLACK BOX

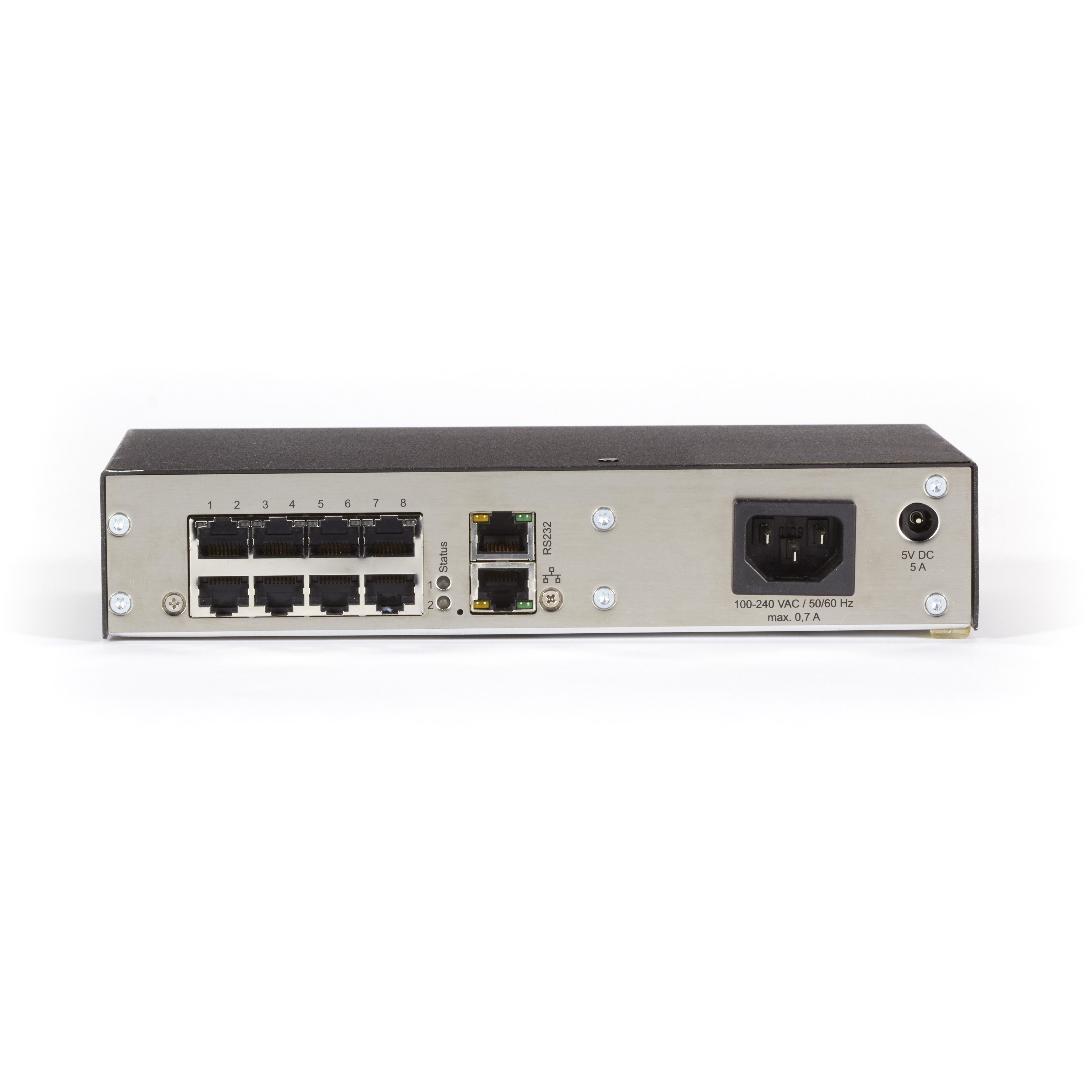

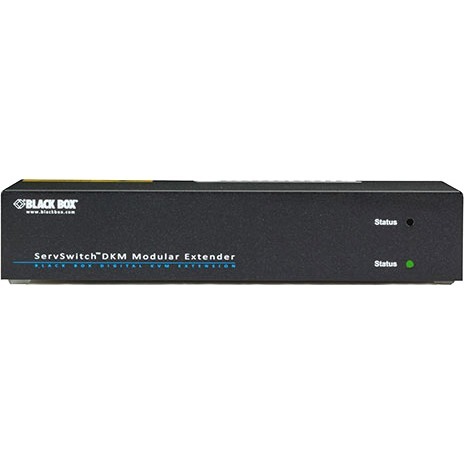

BLACK BOX ACXC8 8PORT DKM FX COMPACT CATX CHASSIS

Mfg Part Number:  ACXC8
Image may not reflect the actual item.
Price: $3,064.94 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 18, 2026
No Sales Tax except these states
, PO and Wire.
  • The DKM Matrix switch enables switching between computers and remote consoles.
  • The DKM Compact switch is available in CATx and Fiber and in port sizes of 8, 16, 32, 48, 64 and 80.
  • The DKM 64 and 80 port switches offer hybrid interfaces that support both CATx and Fiber.
  • CATx endpoints can be extended up to 400 feet (122 m) and Fiber endpoints can be extended up to 6.2 miles (10 km).
  • Each port on the DKM is agnostic and can support a transmitter or receiver.
  • The DKM features instantaneous switching between sources using the same video resolution.
  • Users can interact with this KVM switch via hotkeys, OSD, eternal Java Utility, or an API interface.
  • The DKM can easily be cascaded to support future expansion in the event that every port is in use.
  • The DKM solution features transmitter and receiver endpoint options that can support DisplayPort, DVI-D, DVI-I, HDMI, VGA, USB HID, USB 2.0, Analog Audio, Digital Audio, RS232, and RS422.
  • Black Box can also help you support legacy interfaces such as Component, Composite, S-Video, RGB Video, even with PS/2 keyboards and mice.
  • The DKM transmitters and receivers support CATx or single-mode or Multi-mode Fiber which interfaces with the DKM FX KVM Switch.
Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number ACXC8
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Line ServSwitch
Product Name DKM Compact KVM Matrix Switch - Redundant Power, CATx, 8-Port
Packaged Quantity 1
Product Type KVM Switchbox
Technical Information
Number of Computers Supported 7
Number of Local Users Supported 1
Maximum Operating Distance 400 ft
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 10
Power Description
Input Current 700 mA
Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 88V AC to 264V AC
Frequency 63 Hz
Frequency 47 Hz
Physical Characteristics
Form Factor Desktop
Form Factor Rack-mountable
Height 1.7"
Width 8.8"
Depth 5.8"
Weight (Approximate) 4.06 lb
Miscellaneous
Package Contents
  • DKM Compact KVM Matrix Switch - Redundant Power, CATx, 8-Port
  • 1 x US Power Cord
  • 1 x RJ45/DB9 Adapter
  • 4 x Rubber Feet
  • User Manual
  • 1 x 19" Rack Mount
Environmentally Friendly Yes
Country of Origin Germany
TAA Compliant Yes
Warranty
Limited Warranty 2 Year
