BLACK BOX

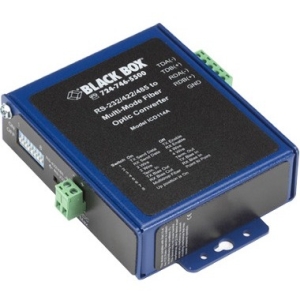

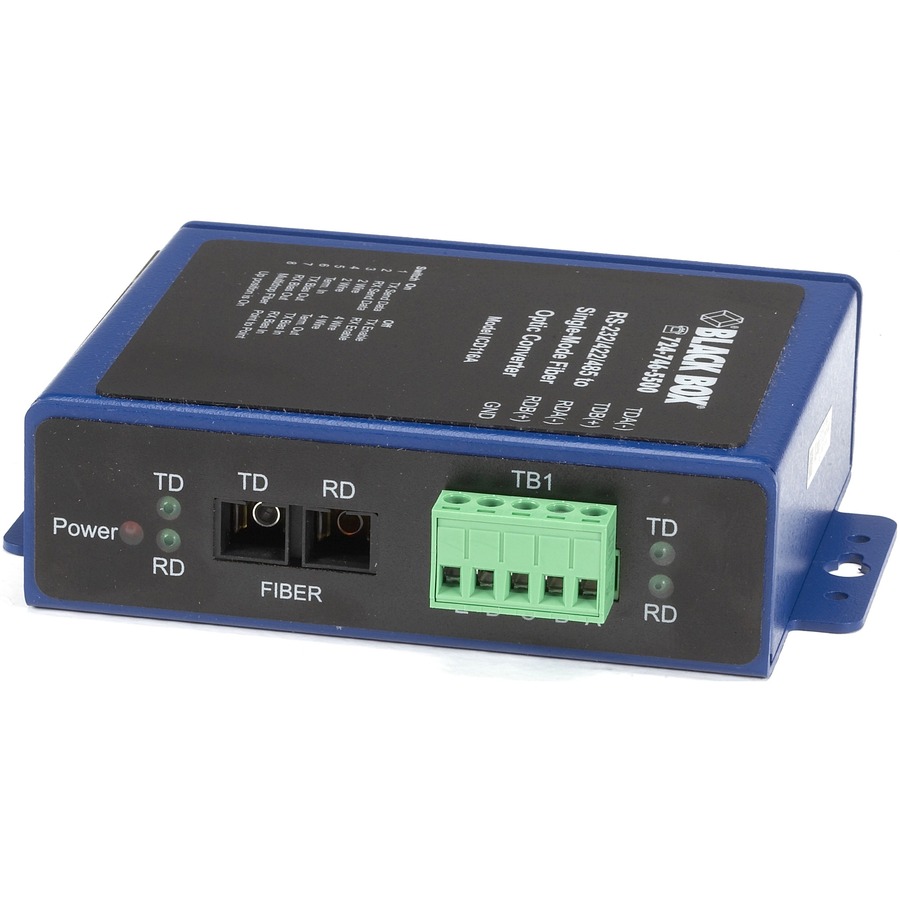

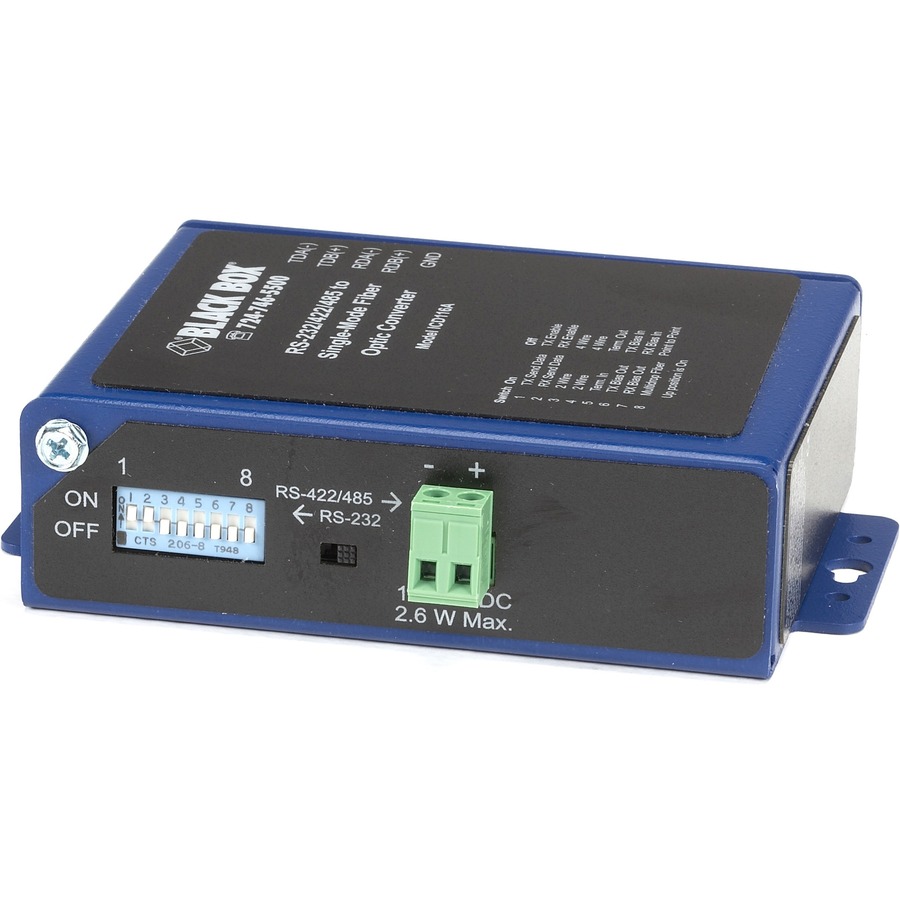

BLACK BOX ICD116A INDUSTRIAL SERIAL TO FIBE SINGL
Mfg Part Number: ICD116A , Item #: 1661825
Image may not reflect the actual item.
Price: $812.08
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 10, 2025
No Sales Tax except these states
, PO and Wire.
Meets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.
Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.
Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ICD116A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | No |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 15 km |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 1.3" |
| Width | 3.7" |
| Depth | 5.2" |
| Weight (Approximate) | 8 oz |
| Miscellaneous | |
| Additional Information | Power supply not included. Must be ordered separately. |
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
