Elo TouchSystems

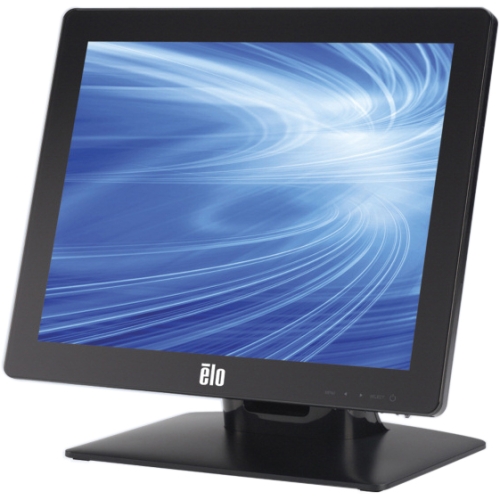

Elo TouchSystems E273226 1517L 15IN LCD VGA ITOUCH USB RS232 ZERO-BEZEL ANTI-GLARE BLACK
Mfg Part Number: E273226 , Item #: 1653319
Image may not reflect the actual item.
Price: $804.98
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 20, 2025
No Sales Tax except these states
, PO and Wire.
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Main Specification
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E273226 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Model | 1517L |
| Product Name | 1517L Rev B 15-inch Multifunction Desktop |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 15" |
| Viewable Screen Size | 15" |
| Screen Mode | XGA-2 |
| Screen Surface | Anti-glare |
| Response Time | 16 ms |
| Aspect Ratio | 4:3 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Adjustable Display Angle | Yes |
| Mount Type | Wall Mountable |
| Mount Type | Desk Mountable |
| Mount Type | Pole Mount |
| Backlight Technology | LED |
| Features | Security Lock |
| Horizontal Frequency | 80 kHz |
| Video | |
| Maximum Resolution | 1024 x 768 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.2 Million Colors |
| Contrast Ratio | 700:1 |
| Brightness | 250 Nit |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Type | Surface Acoustic Wave |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Serial Port | Yes |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage | 12 V DC |
| Operating Power Consumption | 12 W |
| Standby Power Consumption | 1.70 W |
| Off-Mode Power Consumption | 1.30 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Height | 9" |
| Width | 19" |
| Height with Stand | 12.50" |
| Width with Stand | 14.10" |
| Depth with Stand | 7.80" |
| Weight (Approximate) | 9.48 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
