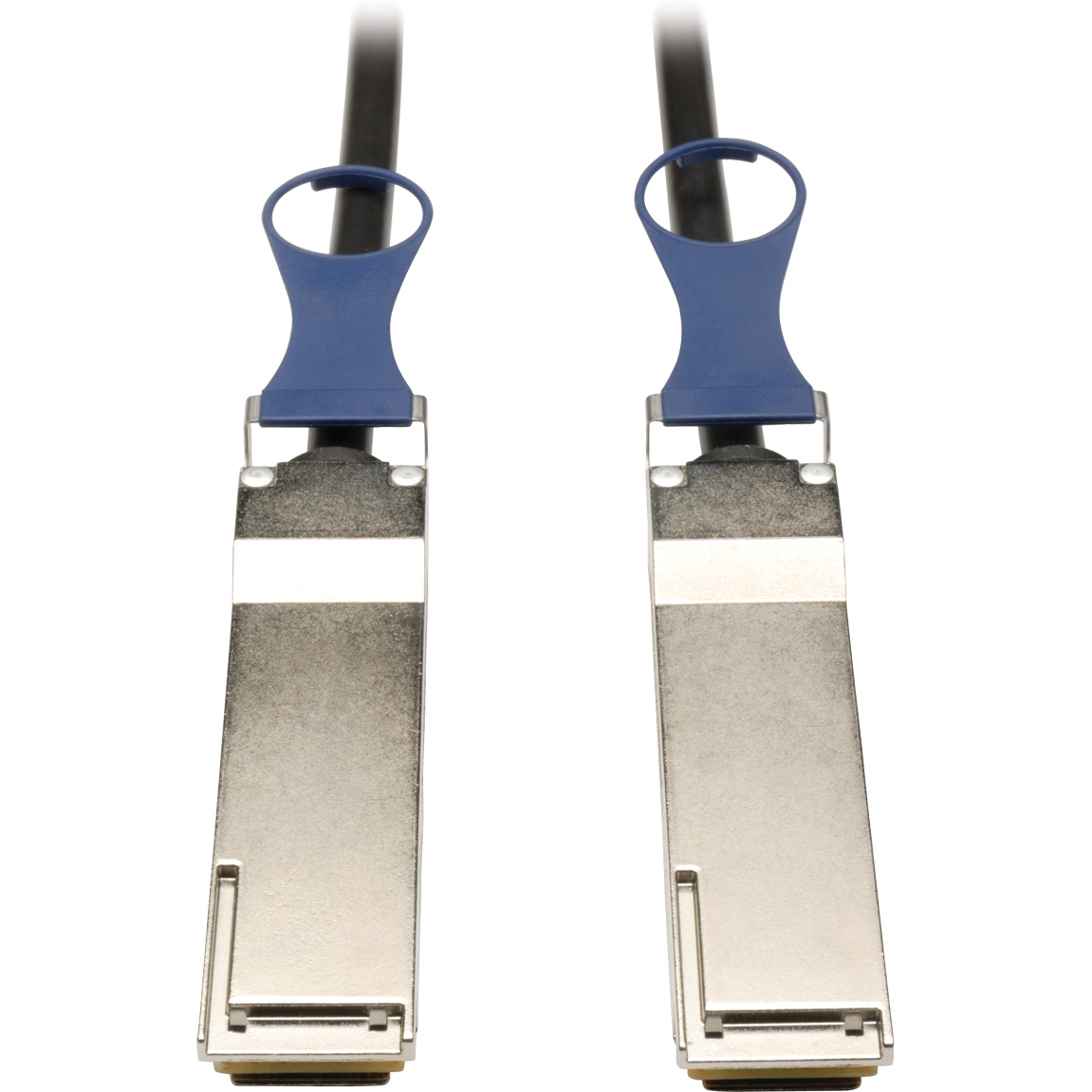

N282-05M-BK Tripp Lite QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 5M (16-ft.)

Tripp Lite's 5m QSFP+ (QSFP Plus) 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 24 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N282-05M-BK
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N282-05M-BK
Product Name	5 Meter QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable
Product Type	Network Cable
Technical Information
Cable Type	QSFP+
Cable Characteristic	Patch Cable
Cable Length	16.40 ft
Connector Type on First End	QSFP+ Network - Male
Connector on First End Details	1 x QSFP+ Network - Male
Connector Type on Second End	QSFP+ Network - Male
Connector on Second End Details	1 x QSFP+ Network - Male
Conductor	Copper
Device Supported	Network Device
Physical Characteristics
Color Family	Black
Product Color	Black
Shipping Height	17"
Shipping Width	14"
Shipping Weight (Approximate)	1.60 lb
Miscellaneous
Certifications & Standards	MSA
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	Lifetime
