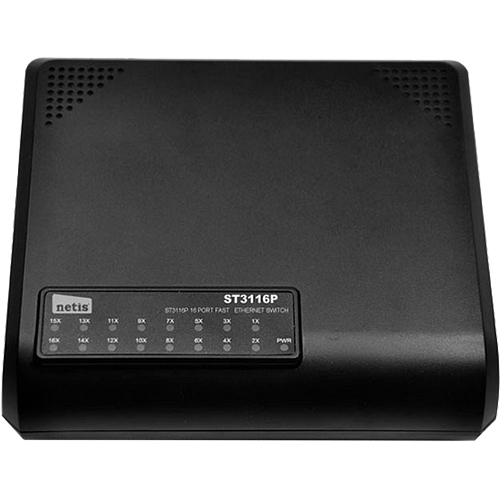

NETIS SYSTEMS ST3116P Netis 16 Port Fast Ethernet Switch
Mfg Part Number: ST3116P , Item #: 1652034
Image may not reflect the actual item.
Price: $45.45
+ Free Shipping
Quantity:
More to Come
Last Updated: May 27, 2025
No Sales Tax except these states
, PO and Wire.
The netis ST3116P Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 16 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
Main Specification
| General Information | |
| Manufacturer | NETIS Systems Co. Ltd |
| Manufacturer Part Number | ST3116P |
| Manufacturer Website Address | http://www.netis-systems.com |
| Brand Name | Netis |
| Product Model | ST3116P |
| Product Name | 16 Port Fast Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | No |
| Bypass | No |
| Modular | No |
| Management Port | No |
| USB | No |
| Stack Port | No |
| Number of Network (RJ-45) Ports | 16 |
| Port/Expansion Slot Details | 16 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.8" |
| Width | 9.1" |
| Depth | 9.1" |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 1 Year |
Specifications
- Mfr Part Number: ST3116P
- Features:
- 16 10/100Mbps RJ45 ports
- Supports MAC address self-learning and auto MDI/MDIX
- Green Ethernet technology link down power saving and link on various cable length power saving
- Supports Jumbo frame
- Supports 8K MAC address table
- 3.2 Gbps Switching Capacity
- Fanless design to make sure it works quietly without disturbing the department or office use
- Plug and play, no configuration required
- Hardware:
- Ports: 16x 10/100 Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
- LED: PWR, 1X-16X
- Power Supply: DC 9V/ 500mA (Output)
- Dimensions (WxLxH): 230.0 x 230.0 x 70.0 mm
- Switching Features:
- Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az
- Access Method: CSMA/CD
- Transmission Method: Store and Forward
- Data Transmission Rate: 10/100Mbps (Half-duplex), 20/200Mbps (Full-duplex)
- Switching Fabric Capacity: 3.2Gbps
- MAC Address Table: 8K, auto-learning & auto-aging
- Jumbo Frame: 2KB
- Others:
- Certification: FCC, CE
- Environment:
- Operating Temperature: 0°C~40°C
- Storage Temperature: -20°C~70°C
- Operating Humidity: 5%~90%, non-condensing
- Storage Humidity: 5%~90%, non-condensing
- Package: ST3116P, Quick Installation Guide, Power Adapter
