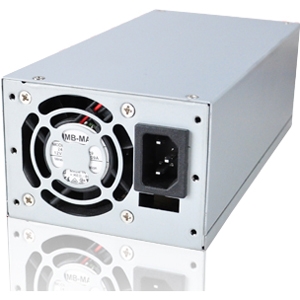

Athena Power AP-U2ATX45P Athena 2U Power Supply
Mfg Part Number: AP-U2ATX45P , Item #: 1645254
Image may not reflect the actual item.
Price: $103.17
Tariff Surcharge (10%): $10.32
Tariff Surcharge (10%): $10.32
Quantity:
In Stock: 1
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.
Introducing Athena Power's 450W 2U (AP-U2ATX45P) power supply. Designed for the 2U form factor it provides a compact PSU and delivers flexibility for small industrial computer rackmounts. The EPS-12V 8pin and the additional P4 4+4 pin connector gives full support for core 2 dual processors. This PSU features an Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability. Also included is its internal front and rear 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
Main Specification
| General Information | |
| Manufacturer | Athena Computer Power Corporation |
| Manufacturer Part Number | APU2ATX45P |
| Manufacturer Website Address | http://www.athenapower.com |
| Brand Name | Athena |
| Product Name | 2U Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Number of Fans | 2 |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 2 |
| Input Voltage Type | AC |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Input Voltage Range | 88 V AC - 264 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 5 V DC @ 2.5 A |
| Output Voltage Detail | 12 V DC @ 16 A |
| Output Voltage Detail | 5 V DC @ 15 A |
| Output Voltage Detail | 3.3 V DC @ 15 A |
| Output Voltage Detail | -12 V DC @ 500 mA |
| Output Current | 15 A |
| Output Current | 500 mA |
| Output Current | 16 A |
| Output Current | 2.50 A |
| Output Power | 450 W |
| Interfaces/Ports | |
| Receptacles | 2 x 4-pin Molex Peripheral Device |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 1 x 20+4pin ATX Motherboard |
| Receptacles | 3 x 15-pin Serial ATA |
| Receptacles | 1 x 4+4pin ATX12V Motherboard |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Receptacles | 2 x 6-pin PCI-E |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 2.9" |
| Width | 3.9" |
| Depth | 7.9" |
| Weight (Approximate) | 4 lb |
| Warranty | |
| Limited Warranty | 3 Year |
