ET91000SFP2C StarTech.com Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot
Mfg Part Number: ET91000SFP2C , Item #: 1638592
, PO and Wire.

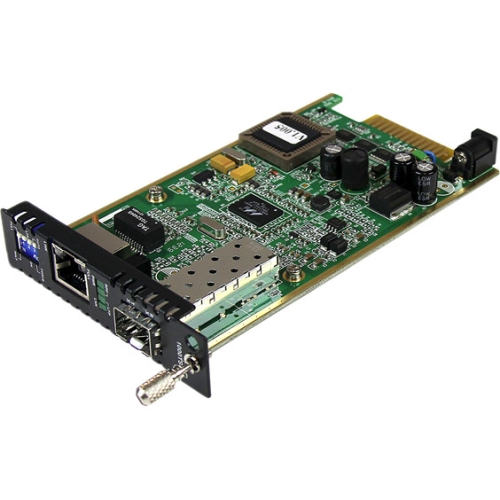

The ET91000SFP2C Open SFP Fiber Media Converter card module converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of Gigabit transceivers for compatible solutions).
Designed for applications where multiple chassis-powered media converters are required, this Gigabit media converter ships as a card module that can easily be installed into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For standalone operation this Gigabit media converter can also be purchased as a standard Open SFP Media Converter(ET91000SFP2).
The fiber to Ethernet converter offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ET91000SFP2C |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Consumption | 8 W |
| Plug/Connector Type | Type M |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 0.8" |
| Width | 2.9" |
| Depth | 5.6" |
| Weight (Approximate) | 3.90 oz |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | StarTech 20 Slot 2U Rackmount Chassis (ETCHS2U) |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
Modules
StarTech.com Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM - 20 km (Mini-GBIC)
StarTech.com Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC w/ DDM - 550m (Mini-GBIC)
