I-Star USA

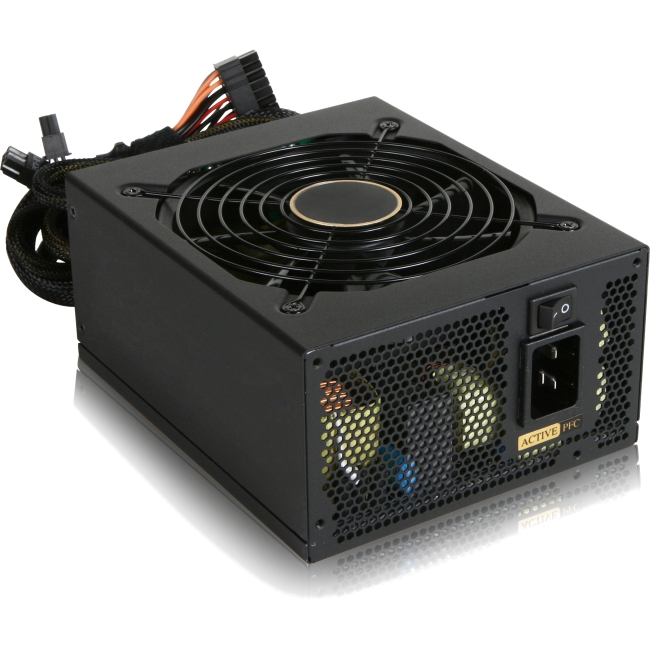

I-Star USA TC-1200PD8G 1200W ATX 80PLUS PS2 GOLD FRT COST INCL CONTIGOUS US ONLY
Mfg Part Number: TC-1200PD8G , Item #: 1632206
Image may not reflect the actual item.
Price: $316.30
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 19, 2025
No Sales Tax except these states
, PO and Wire.
The TC-1200PD8G high performance switching power supply supports latest motherboard connectors of 24, 8, and 4 pins. It sets new standard in server and industrial power supply. In addition, TC-1200PD8G comes with eight 6+2pin PCI-Express connectors, six Molex connectors, and ten SATA power connectors for various applications. Modular interface gives TC-1200PD8G a clean look and better airflow and high efficiency power supply saves on electric bills and less cooling requirement. TC-1200PD8G is the ideal power supply for server and high-end gaming workstation.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | TC1200PD8G |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | Xeal |
| Product Series | TC |
| Product Model | TC-1200PD8G |
| Product Name | TC-1200PD8G 1200W PS2 ATX High Efficiency Switching Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 80% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage Type | AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 5 V DC @ 25 A |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | -12 V DC @ 800 mA |
| Output Voltage Detail | 3.3 V DC @ 25 A |
| Output Voltage Detail | 12 V DC @ 100 A |
| Output Current | 25 A |
| Output Current | 800 mA |
| Output Current | 3 A |
| Output Current | 100 A |
| Output Power | 1200 W |
| Interfaces/Ports | |
| Plug/Connector | On/Off Switch |
| Receptacles | 6 x 4-pin LP4 Peripheral Device |
| Receptacles | 24-pin ATX Motherboard |
| Receptacles | 1 x 4+4pin ATX12V Motherboard |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 8 x 6+2pin PCI-E |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Receptacles | 10 x Serial ATA |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 7.1" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
