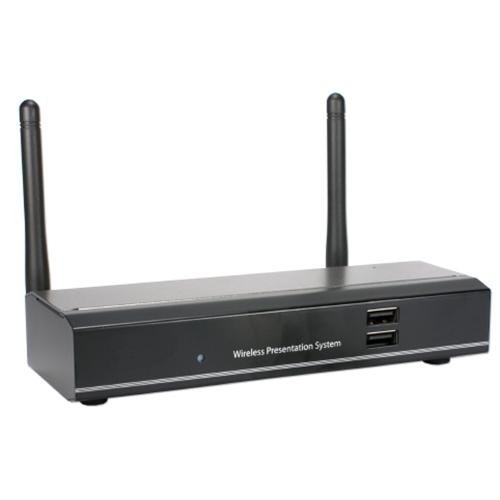

VW-4PHU QVS IEEE 802.11n 54 Mbit/s Wireless Presentation Gateway - ISM Band

Connect any PC/Mac, Android, or IOS Device with Wi-Fi wireless to projector or HDTV with VGA or HDMI ports and display up to 4 users simultaneously. This unit gives you the ability to screen mirror any PC/Mac system. Conference control function is perfect for classrooms or training sessions where a admin is present. It also features Wi-Fi access point, log-in protection for secured access, changeable Standby Splash Screen, and built-in DHCP/SNMP provides installation flexibility. Supports 10/100BaseT Wired-LAN, Wi-Fi iEEE802.11b/g/n, A/V streaming up to 720p, BrowserSlides, SidePad, DirectX application projection such as AutoCAD, ProE & PC games. Works with Windows 8/7/Vista/XP/2K and Mac OSX Systems. Note: Limited support for IOS and Android devices. (Connectors: HD15/RJ45/2 USB/3.5mm Female)

General Information
Manufacturer	QVS
Manufacturer Part Number	VW-4PHU
Manufacturer Website Address	http://www.qvs.com
Brand Name	QVS
Product Name	WXGA/HDMI Presentation System with Remote Desktop Control
Product Type	Wireless Presentation Gateway
Technical Information
Wireless LAN Standard	IEEE 802.11n
ISM Band	Yes
UNII Band	No
ISM Maximum Frequency	2.40 GHz
Total Number of Antennas	2
Number of External Antennas	2
Wireless Transmission Speed	54 Mbit/s
Wireless Security	WPA2-PSK

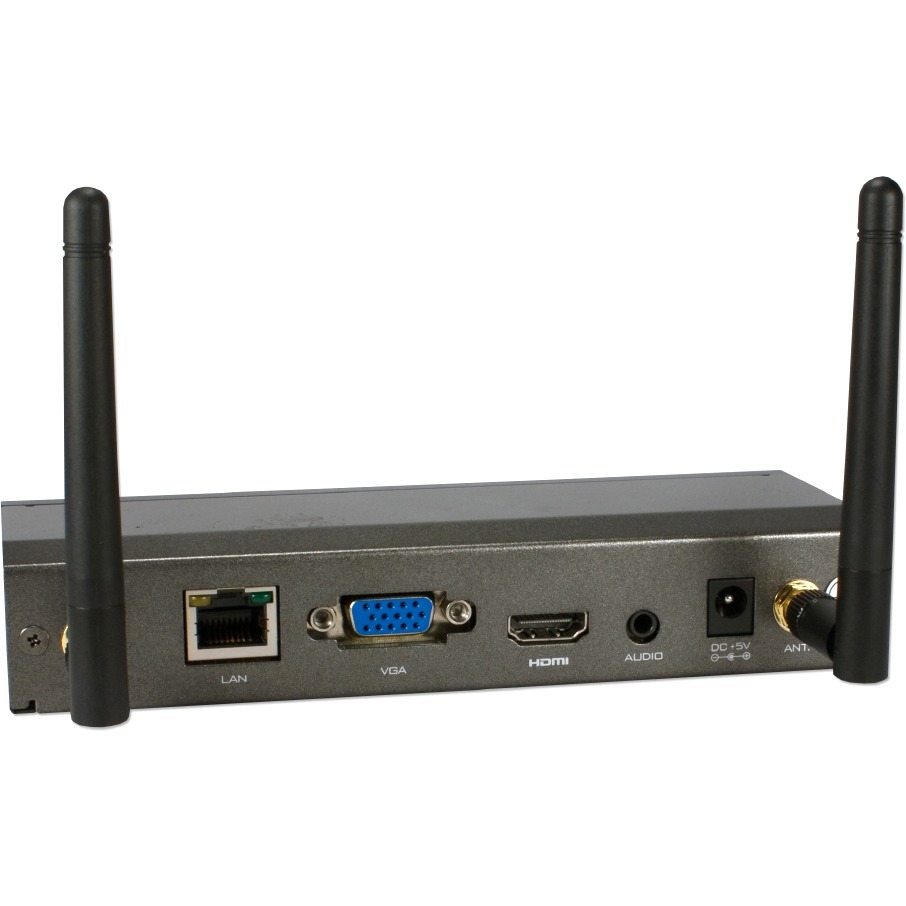

Interfaces/Ports
Ethernet Technology	Fast Ethernet
Ethernet Technology	Ethernet
Number of Network (RJ-45) Ports	1
Network (RJ-11)	No
PoE (RJ-45) Port	No
VGA	Yes
HDMI	Yes
Audio Line Out	Yes
Serial Port	No
USB	Yes
Powerline	No
Management & Protocols
Management	DHCP SNMP
Power Description
Input Voltage	5 V DC
Physical Characteristics
Product Color	Black
Form Factor	Wall Mountable
Form Factor	Desktop
Height	8"
Width	2.5"
Weight (Approximate)	1.81 lb
Miscellaneous

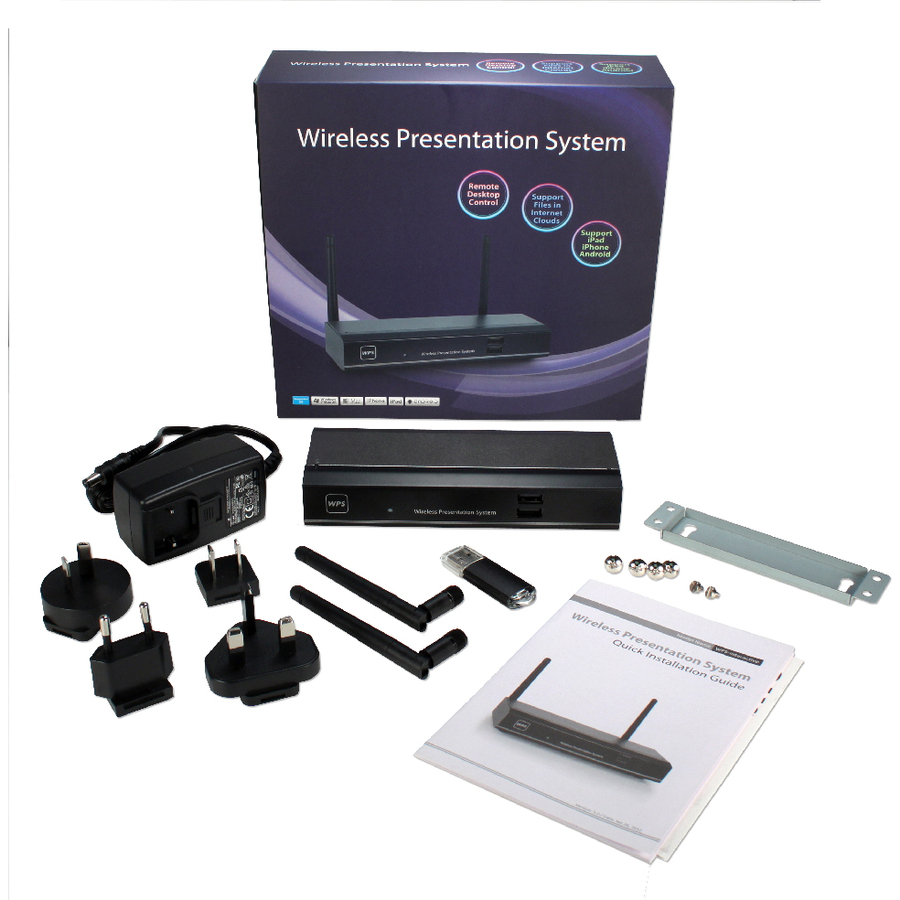

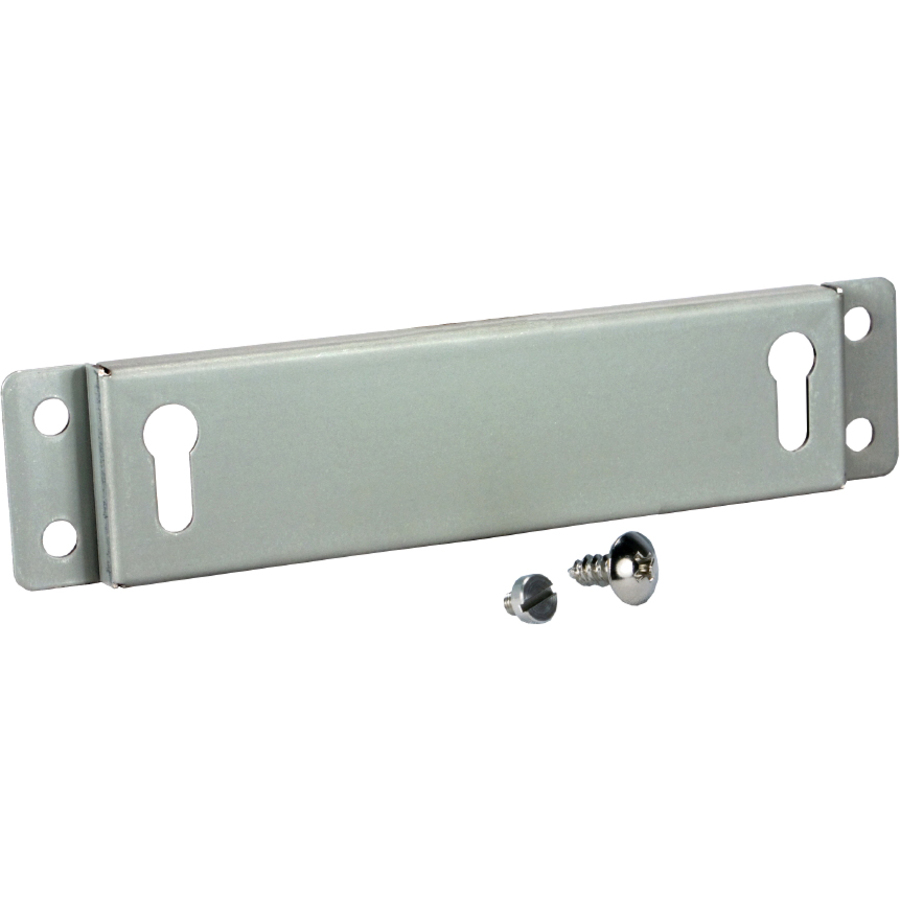

Package Contents	WXGA/HDMI Presentation System with Remote Desktop Control Power Adapter Wall Mount Kit
System Requirements	Operating Systems: Windows 8 Windows 7 Windows Vista Windows XP Windows 2K Mac OS X 10.5 Android 2.2 or Higher iPad/iPhone OS 3.2 or Higher
Certifications & Standards	IEEE Standards: 802.11b 802.11g 802.11n
Country of Origin	China
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	1 Year
