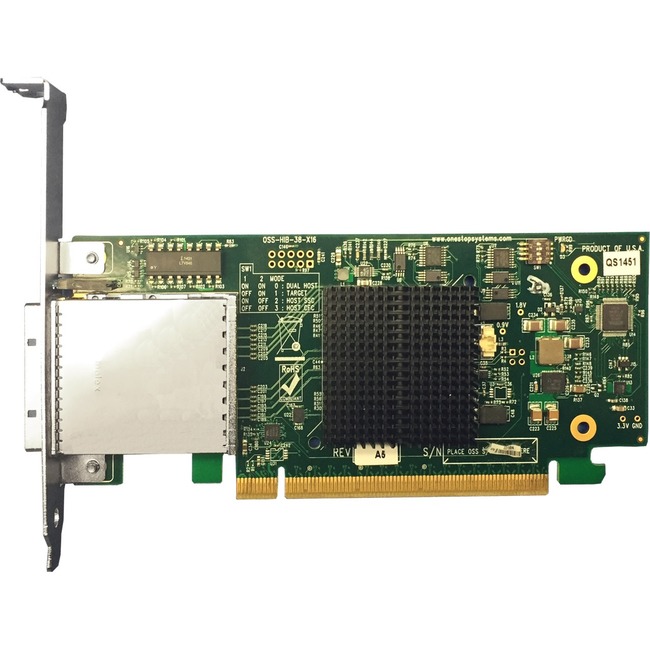

ONE STOP SYSTEMS. OSS-PCIE-HIB38-X16 GEN3 X16, HOST CABLE ADAPTER
Mfg Part Number: OSS-PCIE-HIB38-X16 , Item #: 1622900
, PO and Wire.
PCIe cable adapters install easily into a computer's PCIe slot. A PCIe cable can then be plugged into the adapter to extend the PCIe bus from the motherboard to an external device, like an expansion enclosure or storage device. The PCIe x16 Gen 3 adapter extends the PCIe bus at 120Gb/s with extremely low latency because there is no conversion software.
The host adapter installs in the host computer's PCIe x16 I/O slot, allowing communication between the processor and multiple I/O points
Insert the host cable adapter into a PCIe Gen3 x16 in the host system slot. Make sure that the card is well seated and tighten the screw on the face plate. Attach the cable by inserting the cable into the slot and pushing on the metal tab to raise the metal pins. Release the metal tab ones the pins are aligned with the pin holes.
| General Information | |
| Manufacturer | One Stop Systems, Inc |
| Manufacturer Part Number | OSS-PCIE-HIB38-X16 |
| Manufacturer Website Address | http://www.onestopsystems.com |
| Brand Name | One Stop Systems |
| Product Name | PCIe x16 Gen3 iPass Cable Adapter |
| Product Type | PCIe Host Bus Adapter |
| Technical Information | |
| Host Interface | PCI Express 3.0 x16 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Length | Half-length |
| Card Height | Half-height |
| Height | 2.3" |
| Width | 5.9" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
