CISCO

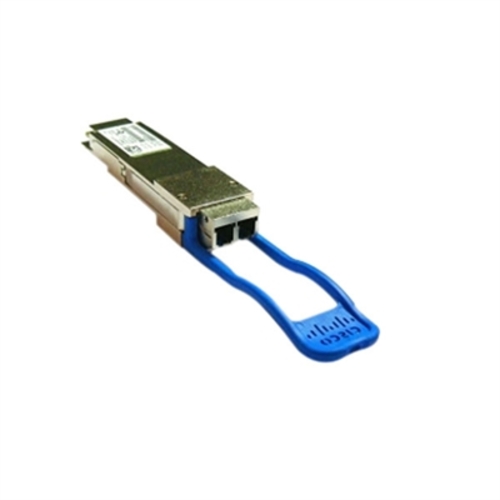

CISCO QSFP-40G-CSR4 QSFP 4x10GBASE-SR Transceiv
Mfg Part Number: QSFP-40G-CSR4 , Item #: 1593093
Image may not reflect the actual item.
Price: $2,950.28
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 25, 2025
No Sales Tax except these states
, PO and Wire.
The Cisco 40GBASE-CSR4 QSFP+ Module is similar to the 40GBASE-SR4 interface extends supported link lengths to 300m and 400m respectively on laser-optimized OM3 and OM4 multimode fiber cables. Each 10-gigabit lane of this module is compliant to IEEE 10GBASE-SR specifications. This module can be used for native 40G optical links over 12-fiber ribbon cables with MPO/MTP connectors, or in 4x10G mode with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR interfaces. Maximum channel insertion loss allowed is respectively 2.6dB over 300m of OM3 cable or 2.9dB over 400m of OM4 cable.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | QSFP-40G-CSR4 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Model | QSFP-40G-CSR4 |
| Product Name | 40GBASE-CSR4 QSFP+ Module for MMF |
| Product Type | QSFP+ |
| Technical Information | |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MTP |
| Interfaces/Ports Details | 1 x MTP 40GBase-CSR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-CSR4 |
| Physical Characteristics | |
| Height | 0.5" |
| Width | 0.7" |
| Depth | 2.9" |
| Miscellaneous | |
| Compatibility | Cisco Nexus 3000 Series Switches |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 90 Day |
