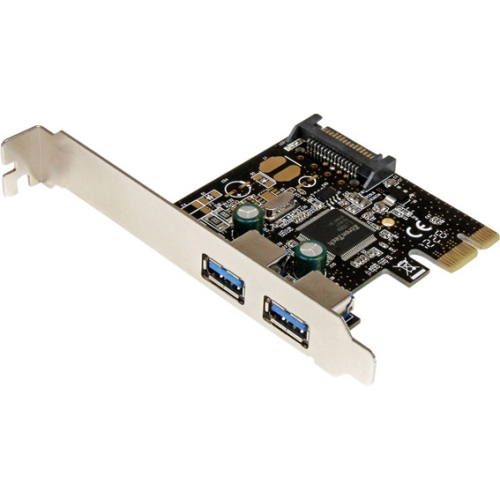

PEXUSB3S23 StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power

The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector. The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	PEXUSB3S23
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
Packaged Quantity	1 Each
Product Type	USB Adapter
Technical Information
Host Interface	PCI Express x1
Media & Performance
UASP Support	No
Interfaces/Ports
Total Number of USB Ports	2
Number of USB 3.2 Ports	2
Number of SATA Ports	1
Software
Operating System Supported	Windows Server 2008 R2
Operating System Supported	Windows Server 2016
Operating System Supported	Windows XP
Operating System Supported	Windows Vista
Operating System Supported	Windows Server 2012
Operating System Supported	Windows 10
Operating System Supported	Windows 8
Operating System Supported	Windows Server 2019
Operating System Supported	Windows 11
Operating System Supported	Windows 7
Operating System Supported	Windows 8.1
Operating System Supported	Windows Server 2003
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Plug-in Card
Height	4.7"
Width	0.8"
Length	3.1"
Weight (Approximate)	1.52 oz
Miscellaneous
Package Contents	2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
Additional Information	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003
Platform Supported	PC
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	2 Year
