B+B SmartWorx/Advantech UHR207 USB 2.0 Hub, 7 Port, Industrial

Mfg Part Number:  UHR207

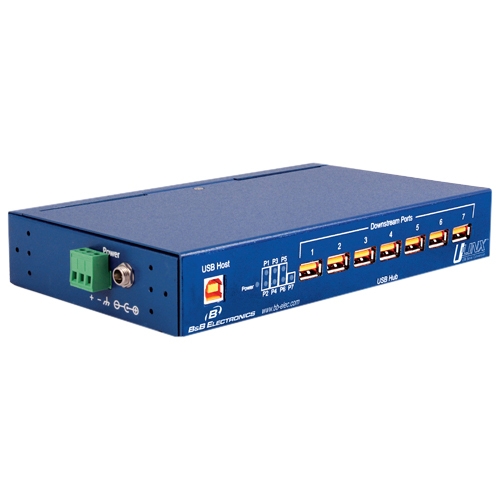

Image may not reflect the actual item.
Price: $420.40
Quantity:
In Stock: 9
Last Updated: Jun 10, 2024
No Sales Tax except these states
, PO and Wire.

The most rugged USB Hub on the Market!

Our Industrial Grade USB Hubs are designed for the harshest environments. They are EMC tested to meet heavy industrial standards. The four port hubs are UL listed for Class 1 Division 2 hazardous locations. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications. The UHR304 and UHR307 offer 4 kV Isolation between the upstream and downstream USB ports to protect expensive equipment from dangerous ground loops and to help ensure data integrity. No doubt about it, these hubs will operate where standard office grade hubs fail - such as near variable frequency drives, motor control centers, welding, and other large electrical loads.

Main Specification
General Information
Manufacturer Advantech Co., Ltd
Manufacturer Part Number UHR207
Manufacturer Website Address http://www.advantech.com
Brand Name B+B SmartWorx
Product Model UHR207
Product Name 7 Port Non-Isolated USB Hub
Product Type USB Hub
Technical Information
Host Interface USB
Media & Performance
Data Transfer Rate 480 MB/s
Interfaces/Ports
Total Number of USB Ports 7
Number of USB 2.0 Ports 7
Physical Characteristics
Form Factor External
Height 1.4"
Width 8"
Depth 4.8"
Weight (Approximate) 1.40 lb
Miscellaneous
Package Contents
  • 7 Port Non-Isolated USB Hub
  • Panel Mount Brackets
  • DIN Rail Clip
Country of Origin United States
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
product information
General Information
Product Hubs
Type USB 2.0
Number of Channels / Ports 7 Port
Maximum Data Rate 480 Mbit/s
Operating Supply Voltage 10 V to 30 V
Maximum Operating Temperature + 80 C
