FRACTAL DESIGN
FD-CA-CORE-1000-USB3-BL Fractal Design Core 1000 USB 3.0
Mfg Part Number: FD-CA-CORE-1000-USB3-BL , Item #: 1573505

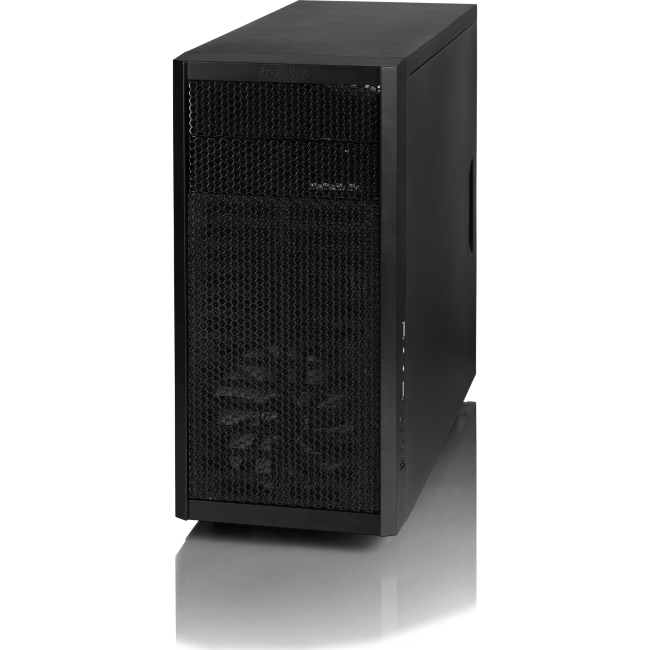

Image may not reflect the actual item.
Price: $55.00
+ Free Shipping
Quantity:
In Stock: 43
Last Updated: May 20, 2024
No Sales Tax except these states
, PO and Wire.
The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
Main Specification
| General Information | |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-CA-CORE-1000-USB3-BL |
| Manufacturer Website Address | http://www.fractal-design.com |
| Brand Name | Fractal Design |
| Product Line | Core |
| Product Series | 1000 |
| Product Model | FD-CA-CORE-1000-USB3-BL |
| Product Name | Core 1000 USB 3.0 |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | DTX |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | Micro ATX |
| Number of Fans Supported | 3 |
| Number of Fans Installed | 1 |
| Fan Size Supported | 4.72" |
| Fan Size Supported | 3.62" |
| Installed Fan Size | 4.72" |
| Bays | |
| Number of External 5.25" Bays | 2 |
| Number of Internal 3.5" Bays | 2 |
| Number of Total Expansion Bays | 4 |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Power Description | |
| Number of Power Supplies Supported | 1 |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Steel |
| Form Factor | Mini-tower |
| Height | 14" |
| Width | 6.9" |
| Depth | 16.5" |
| Weight (Approximate) | 9.04 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 2 Year |
Specifications
- Mfr Part Number: FD-CA-CORE-1000-USB3-BL
- Features:
- Simple yet elegant mesh front panel allowing for increased airflow through the case
- Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
- Innovative HDD positioning with mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
- Dust filter for front fan position
- Case Type: MicroATX Case
- Color: Black
- Material: Steel
- M/B Type: MicroATX, DTX, Mini-ITX
- Drive Bays:
- External Bay: 2x 5.25" ODD, 1x 3.5" FDD (using convertor in ODD slot)
- Internal Bay: 3x 2.5" or 2x 3.5" or 1x 3.5", 1x 2.5"
- Expansion Slots: 4
- Cooling System:
- Front: 1x 120mm Hydraulic Bearing Silent Series R2 Fan (1200 RPM)
- Rear: 1x 92mm Fan Vent (Fan not Included)
- Side: 1x 120mm Fan Vent (Fan not Included)
- Side Windows: No
- Front I/O Panel: 1x USB 3.0 Port, 1x USB 2.0 Port, Audio In & Out
- Maximum Compatibility:
- VGA Card Length: 210 mm (w/ two/three HDDs mounted); 350 mm (w/ at most one HDD mounted)
- CPU Cooler Height: 148 mm
- Power Supply: None, 185mm Max ATX PSU Length
- Dimensions (WxDxH): 175.0 x 420.0 x 355.0 mm
- Weight: 4.1 kg
